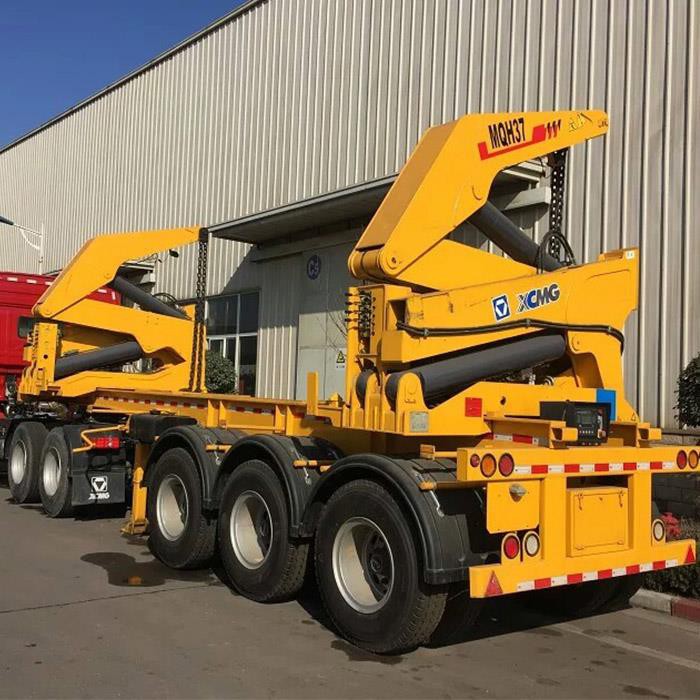

China New Tri Axles 20 & 40 Feet Container Side Loader Trailer

China New Tri Axles 20 & 40 Feet Container Side Loader Trailer

Side loader trailer is specialized for container loading and unloading. It is easy to operate and has wide use on port or your cargo transportation area.
Chat Now

Product Details

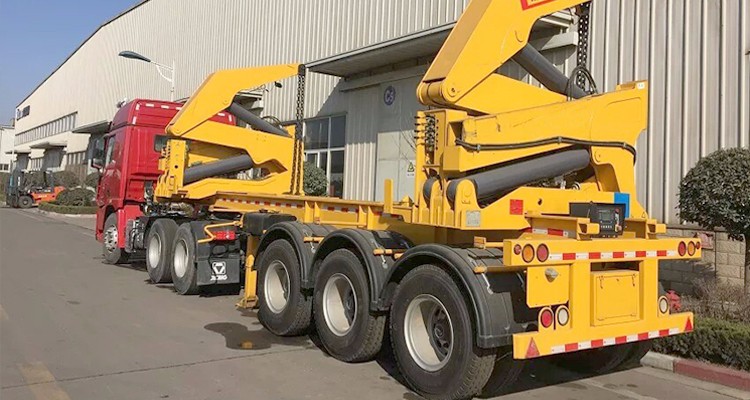

Container side loader trailer has its own hydraulic lifting device at the front and rear, which can be used to transport and transport containers from the side at one time. It has the advantages of large lifting capacity, large working range, wide application range, etc. It is easy to operate and has strong practicability, and is widely used in shipping. , ports, railways, warehousing, customs and other transportation fields.

trailer

Features:

• Container side loader trailer comes with dual hydraulic lifting devices, which can provide safe and stable container lifting function.

• Before hoisting the container, lower the two outriggers to ensure the stability of the trailer during the hoisting process and avoid the vehicle from rolling over.

•Using internationally renowned accessories to effectively ensure the service life of the side loader trailer.

SPECIFICATION OF SIDE LOADER TRAILER

Type

20ft & 40ft side loader trailer

Overall dimension

13000 x 3000 x 1700 mm

Container size

20ft & 40ft

Crane

1. Imported electromagnetic valve

2. Two speed operation

3. Double pumps and dual circuit hydraulic system

Main beam

Carbon steel Q345B, 500mm height, upper plate 16mm, middle plate 10mm, down plate 18mm

Side beam

16#

Platform

3mm diamond plate

Axle

Fuwa, BPW, York, L1, Zhenghua

Tyre

12R22.5, 385/65R22.5, 315/85R22.5, 1100R20

Landing gear

28 ton

Suspension

Mechanical or air-bag suspension with lift

Color

As your requirement

Optional

fuel tank, water tank, side wall, front board

Advantages

Chassis

All the chassis are manufactured under standard process

to ensure quality.

Parts

1、Adopting imported electromagnetic valve

2. Two speed operation

3. Double pumps and dual circuit hydraulic system

4. Adopting advanced safety protection system.

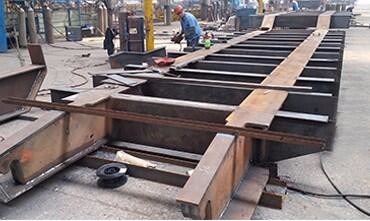

Our Factory


Standard manufacturing process to ensure the quality of the semi trailers. All our trailers are made according to your requirements!
