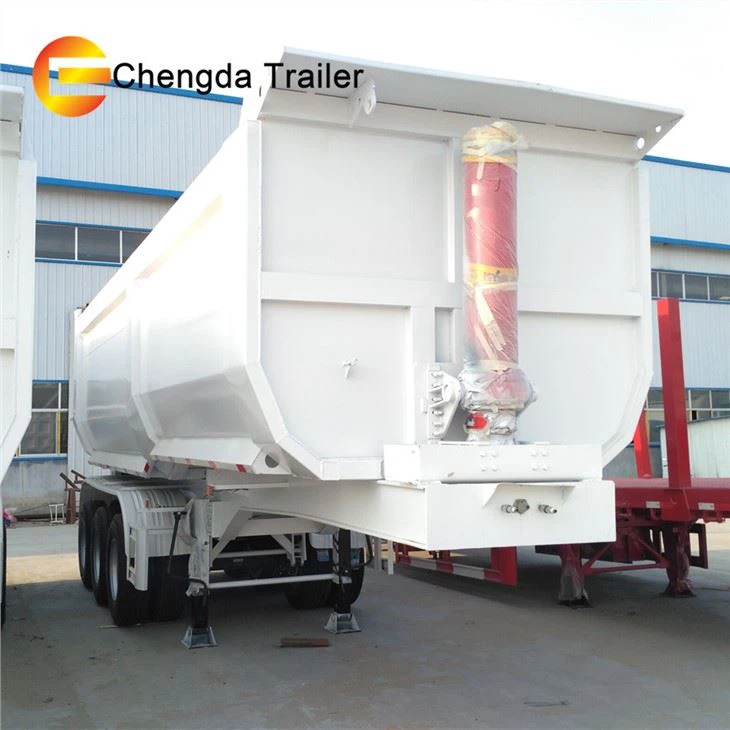

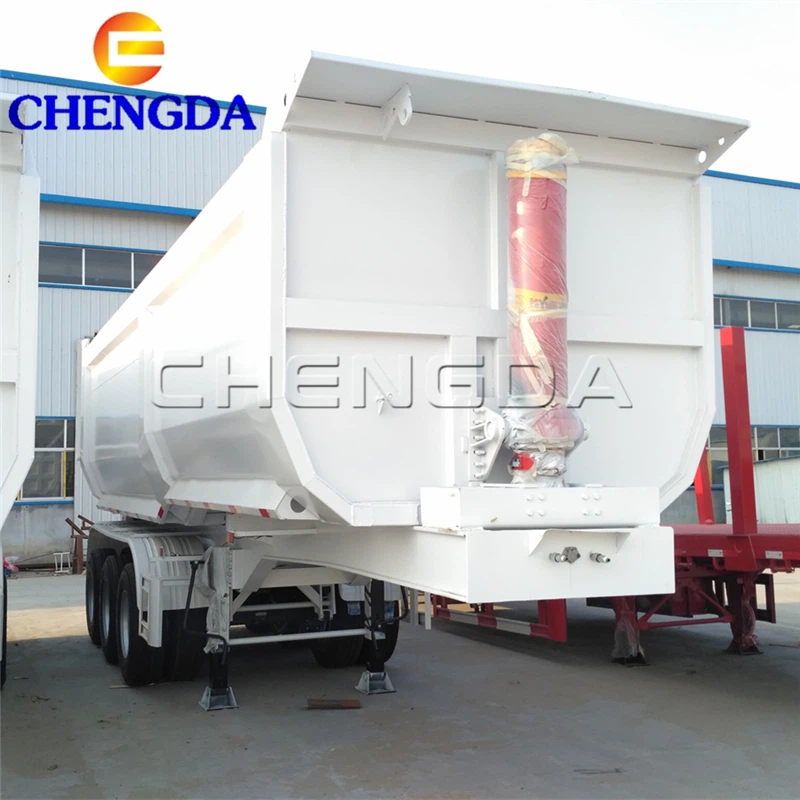

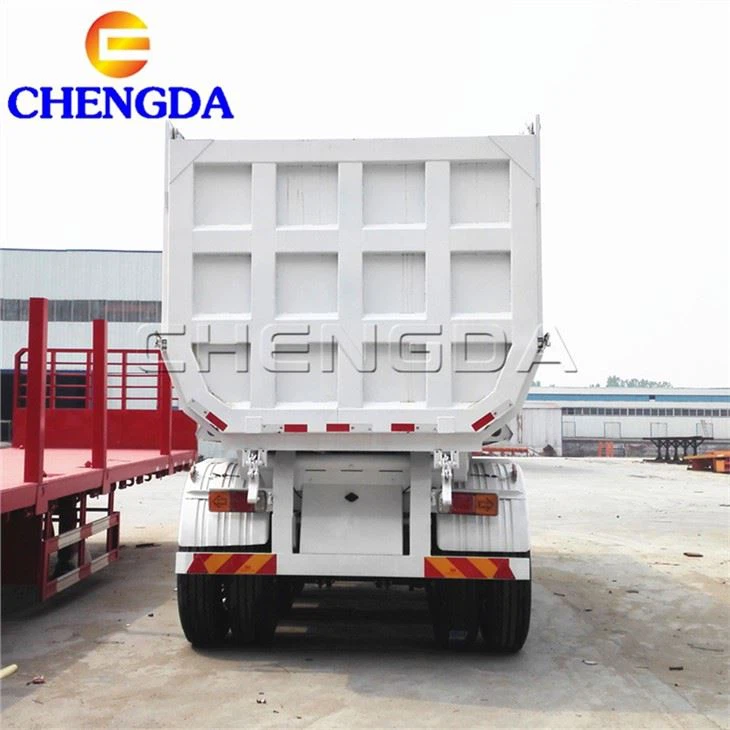

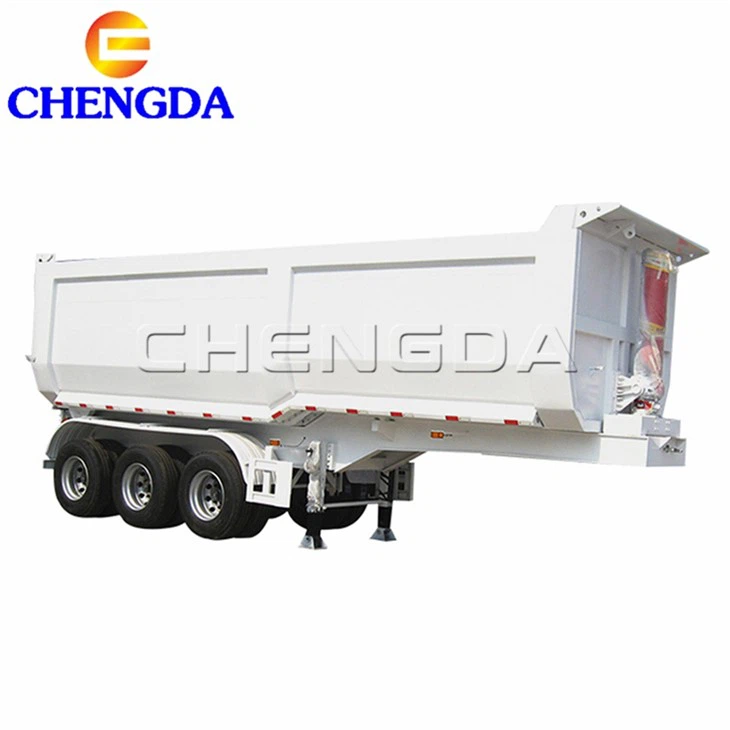

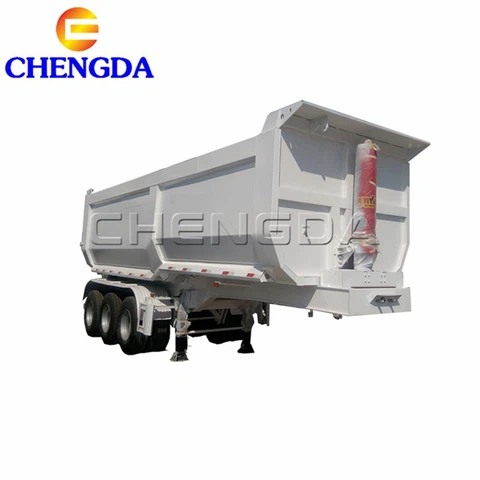

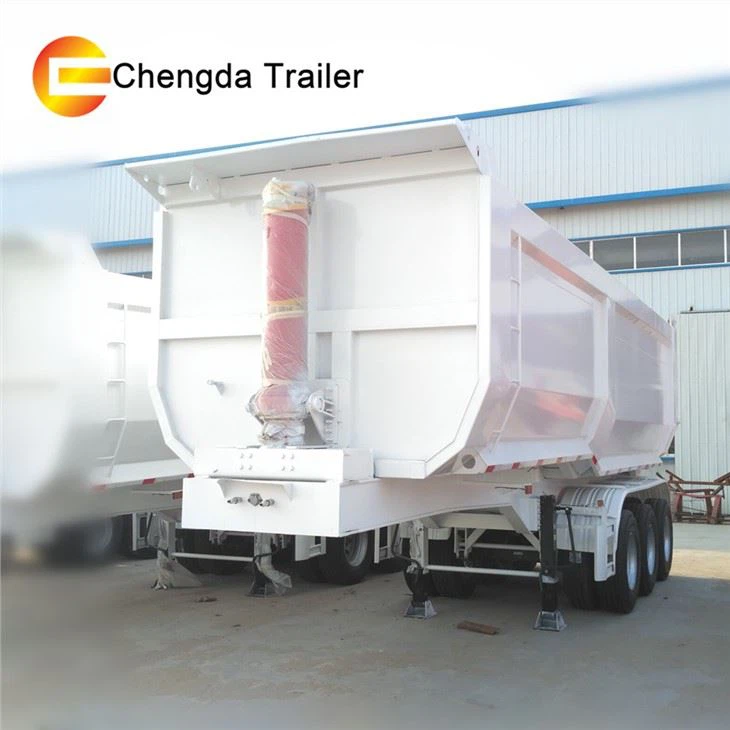

U Shape Dump Trailer


1. U shape dump trailer adopts a standardized and modular welding process, and standardized operations are carried out on the length of the welding seam, the position of the welding seam and the reservation, so as to ensure the perfect welding standard of each trailer.

2. 100% of the whole trailer is made of full-thickness wear-resistant steel, which is more wear-resistant and anti-manufacturing.

3. Effectively solve industry problems such as welding cracking of tipper trailers, deformation of carriages, rapid tire wear, and unsynchronized lifting.
Chat Now

Product Details

The frame of the U shape dump trailer is made of 16Mn beam plate. The U-shaped carriage has a low center of gravity and is clean and quick to unload, not easy to overturn when lifted, and has a long service life.

Tipper Trailer (3)

Advantages of U shape dump trailer


Tipper Trailer (4)

1.U shape dump trailer is different from the design concept of square cargo box. Through new structural design and high-strength box board, the self-weight is reduced on the basis of ensuring the bearing strength, and the transportation efficiency is effectively improved.

2. The bottom of the U shape dump trailer is designed in an arc shape, and the center of gravity is lowered for safer driving.

3. The corners of the U shape dump trailer adopt an arc-shaped transition, which is not easy to stick to the box when unloading, the unloading speed is faster, and the unloading residual rate is basically zero.

4. The bottom of the U shape dump trailer cargo box is an arc-shaped flexible structure, which relieves the impact on the bottom when transporting ore and prolongs the service life of the bottom plate.

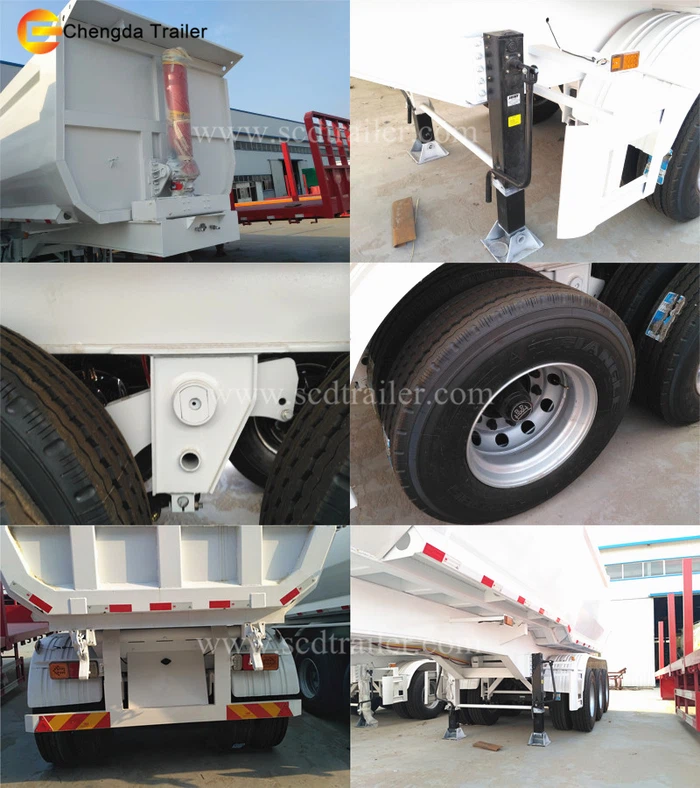

More details


Tipper trailer (8)

Overall Dimension

9200mm x 2500mm x 3800mm

(Lx W x H)(mm)

8500mm x 2300mm x 1800mm or 35.15 cubic meter

Inner Dimension

I shaped mild alloy Q345B by automatic submerged

Main beam

arc welding 18 - 8+6 - 18mm

Platform thickness

10mm

Side wall thickness

8mm

Hydraulic System:

Full set of HYVA Hydraulic System

King pin

50mm

Land gear

28t

axles

Guangdong FUWA brand, 3*16T

Track

1840/1840/1840

Suspension:

Mechanical Suspension

Tire

12R20 standard brand 12pcs

Brake system

30/30 type on each axle ,Wabco brake valve

Spare wheel carrier

2 pcs

Tool box

1 pcs

Electrical System

Chinese standard 24V lighting system

Brake:

Dual Lines Pneumatic Brake System. T30/30 Air Chamber; Parking Brake

Brake air chamber

Six big chamber

FAQ


1.Q: What kind of payment do you accept?

A: We accept T/T and L/C; Others payment is negotiable.


2.Q: What's your minimum order quantity?

A:One unit


3.Q: What's your delivery time?
A: 30 days after received the deposit.

4.Q: What's warranty time?
A: 12 months or 30,000 km from the date of shipment whichever comes first

5.Q: What's your after-sale service?
A: We provide technical support for our trucks and whole life parts supply
