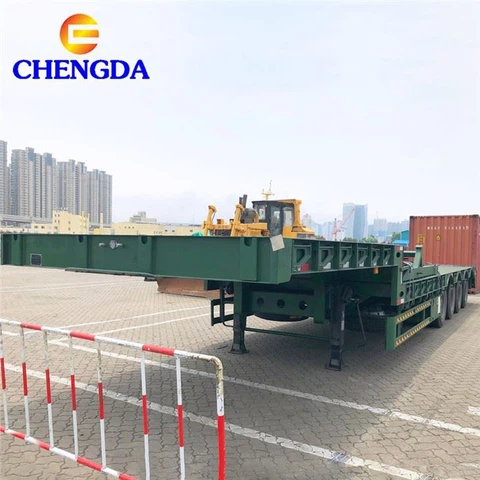

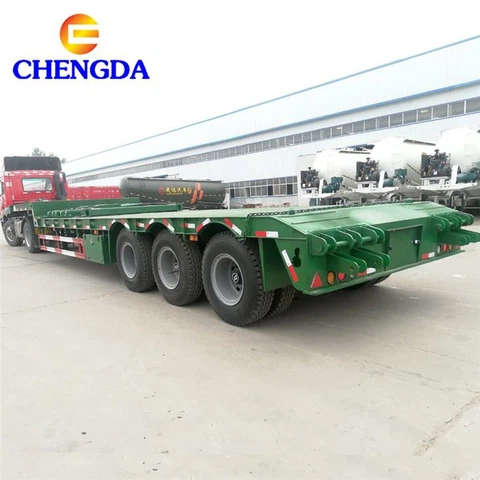

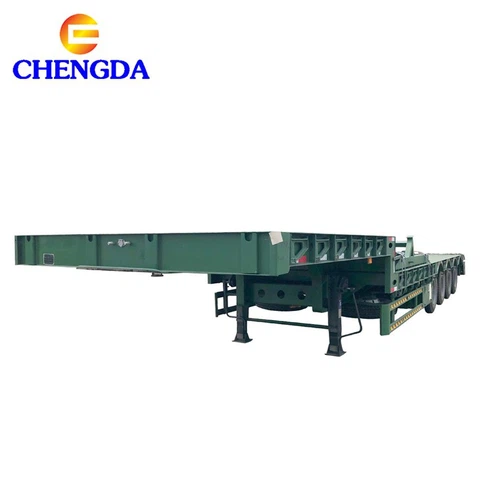

Gooseneck Flat Deck Trailer

There is a cargo platform behind the gooseneck flat deck trailer, which has the characteristics of low bearing surface, wide platform, light weight, large cargo capacity and high transportation efficiency.
Chat Now

Product Details

CHENGDA gooseneck flat deck trailer has the characteristics of low center of gravity, high stability and high safety. It is an ideal choice for the transportation of heavy machinery such as excavators, cranes, and loaders.

The main beam of CHENGDA gooseneck flat deck trailer is made of Q345B high-strength steel, which can load up to 60-100 tons of payload. It is sturdy and durable to meet various needs, and can effectively extend the service life of lowboy trailer.

lowbed traile

1. The low bed trailer frame is stepped, and the longitudinal beam section is I-shaped, which has the characteristics of high rigidity and high strength.

2. The low-bed trailer transporter adopts advanced computer-aided design software for optimal design, which is flexible and diverse. The frame bearing surface can be designed according to user requirements to meet the transportation of various special goods.

Color specifications can be customized:

lowbed trailer2



3 axles gooseneck flat deck trailer



Overall dimension

13000 * 3000 * 1650mm

Loading capacity


Axle brand and number

13TFuwa Brand, 3 units

Wheel base(mm)



50# or 90#

Steel Spring

10/10/10 leaf spring suspension

The material of Main beam

The height of the beam is 500 mm, upper plate is16mm, down plate is 18mm, middle plate is 10mm.

Tyre and quantity

1100R20 radial tires, 12 pieces

Landing gear

28T, double speed operation

Platform plate

3mm Checkered steel plate

Brake system

Dual Line braking system, none ABS.

Brake air chamber

Four double and two single chamber

Electrical system

24V, 7 pin socket, One set 6-core standard Cable


Tail lamp with turn signal, brake light & reflector, side lamp etc

Tool box

1 set

Spare tire carrier

2 sets




Polish with wax before shipping

Packaging & Shipping:

-By Bulk:

Common and popular way to transport lowbed trailers, price is suitable and the trailer will not cut the gooseneck.

-By RO-RO:

More expensive, but more secure and stable. No wind, no rain, or sea, cargo in a good condition .

-By Container:

Should cut the gooseneck before shipment, when container arrive your port, should weld the gooseneck back.

3 Axle Low Bed Truck Trailer

Customers Feedback

3 Axle Low Bed Truck Trailer

Chengda is committed to providing every customer with excellent quality, reasonable price, punctual shipping and the best service. We will work with you in the most efficient way.


1. What can you buy from us?

   Truck Trailer,Truck,Trailer Parts,Truck Parts

2. Why Choose Us?

Our business established since 2005, our plant is one of the qualified manufacturers of various trailer. We can provide our customer with factory direct price; customized products; Leading production technology on truck trailer and professional sales support.

3. What should I do if the tires of the truck are attached with nails?

The tires are attached with nails. Do not pull on the nails by hand, otherwise they will leak easily. Do not hit the brakes, hold the steering wheel firmly and stay straight to avoid collisions with road obstacles and traffic.

After parking in a safe place, check the tires in time. If the tie is severe, change the tires on time. If there is no problem, go to the repair center and fix it in time.
