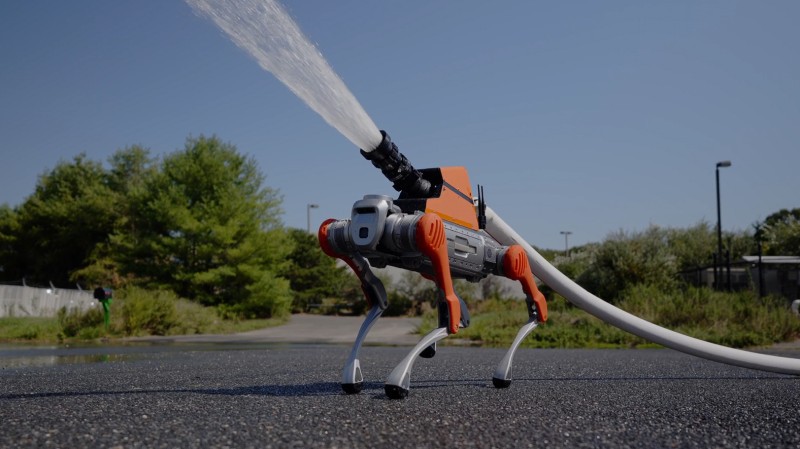

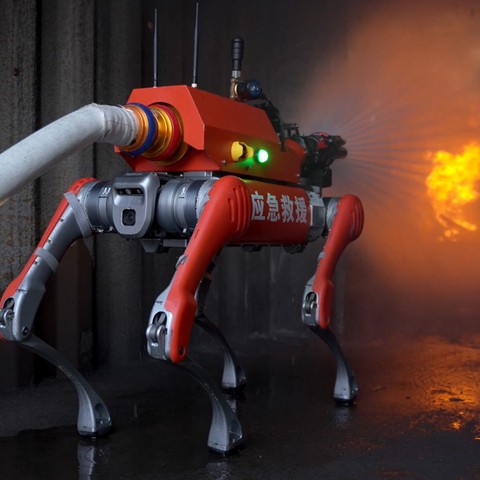

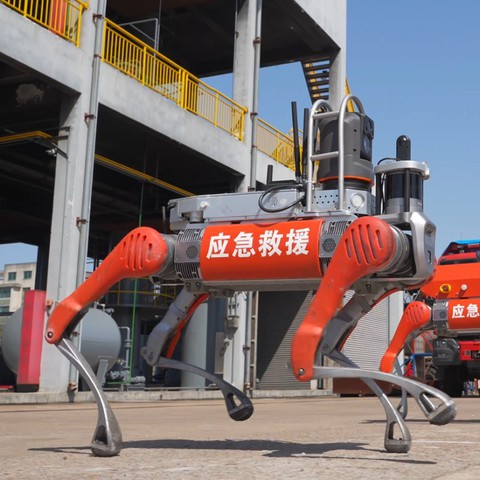

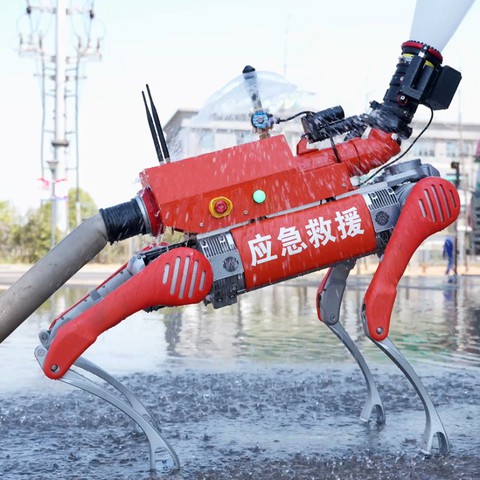

Firefighting Robot CD B2
Product Details
The firefighting robot CD B2 industrial quadruped robot is designed for extreme environments, helping first responders safely handle high-risk situations. With a powerful payload and modular design, it supports water cannons, gas and oxygen sensors, and PTZ thermal imaging, providing real-time data and accuracy without endangering lives.
From high-pressure water cannons to advanced search and rescue payloads, firefighting robot CD B2 can navigate hazardous environments where human contact is limited.
Parameters of firefighting robot CD B2
| Item | Official Specification |
| Standing Size | Approx. 1098mm × 450mm × 645mm |
| Folded Size | Approx. 880mm × 460mm × 330mm |
| Weight | Approx. 60kg (whole unit, with battery) |
| Ingress Protection | IP67 |
| Operating Temperature | -20℃ ~ 55℃ |
| Battery | Capacity 45Ah (2250Wh), Voltage 58V |
| Endurance | Comprehensive operating endurance: 4-6 hours |
| Unloaded continuous walking: > 5h, mileage > 20km | |
| 20kg loaded continuous walking: > 4h, mileage > 15km | |
| Wheeled-Leg Conversion | Optional |
| Standing Load | ≥ 120kg |
| Continuous Walking Load | > 40kg |
| Stair Climbing Capability | Max step height: 20~25cm |
| Obstacle Climbing Capability | Forward climb up/down 40cm height steps |
| Max Running Speed | ＞6m/s (realized in special configurations) |
| Max Joint Torque | Approx. 360N·m |
| Max Climbing Angle | ＞45° |
| Max Jump Distance | ＞1.6m |
| Ditch Crossing Width | 0.5~1.2m |
| Battery Type | Plug-in quick-swap battery |
