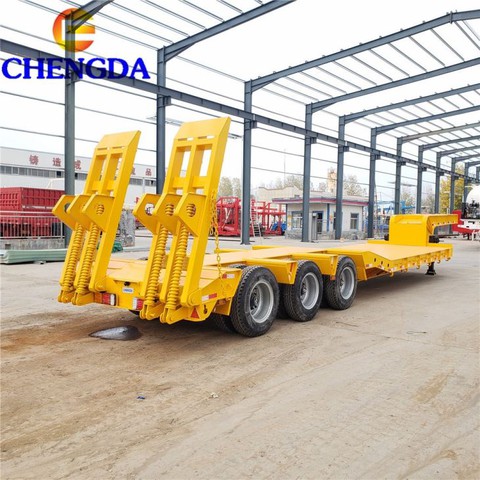

3 Axles 60 80 Ton Lowbed Low Bed Lowboy Truck Trailer in Mozambique

Product Description
According to clients' requirements, we can customize different axles and loading weight.
This one is 3 axles 60tons stock gooseneck lowboy low loader lowbed truck trailer which is very popular in domestic and international market.

Come to Chengda trailer, you can customized the trailers you like.

Specification
Name	3 axles low bed semi trailer
Model	SCD9402TDP
Overall dimension	13000 * 3000 * 1650mm
Loading capacity	60T
Axle brand and number	13TFuwa Brand, 3 units
Wheel base(mm)	6880+1310+1310
Kingpin	50# or 90#
Steel Spring	10/10/10 leaf spring suspension
The material of Main beam	The height of the beam is 500 mm, upper plate is16mm, down plate is 18mm, middle plate is 10mm.
Tyre and quantity	1100R20 radial tires, 12 pieces
Landing gear	28T, double speed operation
Platform plate	3mm Checkered steel plate
Brake system	Dual Line braking system, none ABS.
Brake air chamber	Four double and two single chamber
Electrical system	24V, 7 pin socket, One set 6-core standard Cable
Light	Tail lamp with turn signal, brake light & reflector, side lamp etc
Tool box	1 set
Spare tire carrier	2 sets
Painting	Optional
Packing	Polish with wax before shipping
