40ft 40ton Skeleton Container Trailer For Africa

3 axles container skeleton trailer for Africa Product Description 3 axles container skeleton trailer for Africa is very popular in the world. Our skeletal container trailer price is really good with high quality ensured. Come to Chengda trailer, you can customized container trailer you want....

Chat Now

Product Details

40ft 40ton Skeleton container Trailer For Africa

Product Description
3 axles container skeleton trailer for Africa is very popular in the world. Our skeletal container trailer price is really good with high quality ensured.
Come to Chengda trailer, you can customized container trailer you want.

Specification
Name	3 axle 40ft container semi trailer
Model	SCD9400TJZ
Overall dimension	1250025001600mm
Loading capacity	40T
Axle brand and number	13TFuwa Brand, 3 units
Wheel base(mm)	7450+1310+1310
Kingpin	50# or 90#
Steel Spring	10/10/10 leaf spring suspension
The material of Main beam	The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8mm.
Tyre and quantity	12R22.5 12sets
Landing gear	28T, double speed operation
Platform plate	3mm Checkered steel plate
Brake system	Dual Line braking system, none ABS.
Brake air chamber	Four double and two single chamber
Electrical system	24V, 7 pin socket,One set 6-core standard Cable
Light	Tail lamp with turn signal, brake light & reflector, side lamp etc
Tool box	1 set
Spare tire carrier	2 sets
Painting	Optional
Packing	Polish with wax before shipping

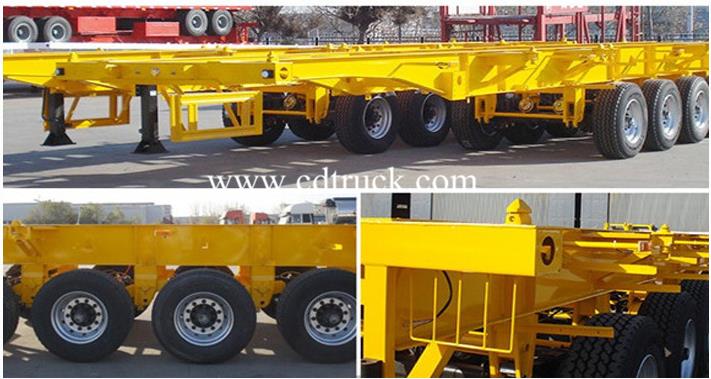

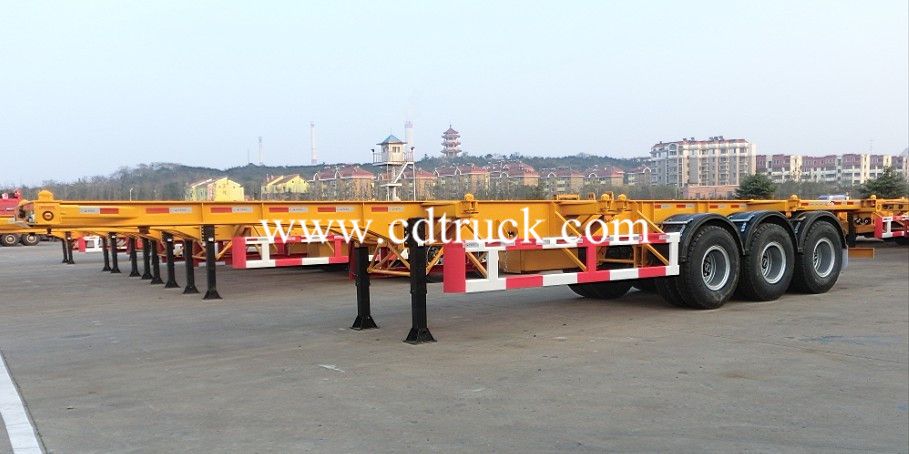

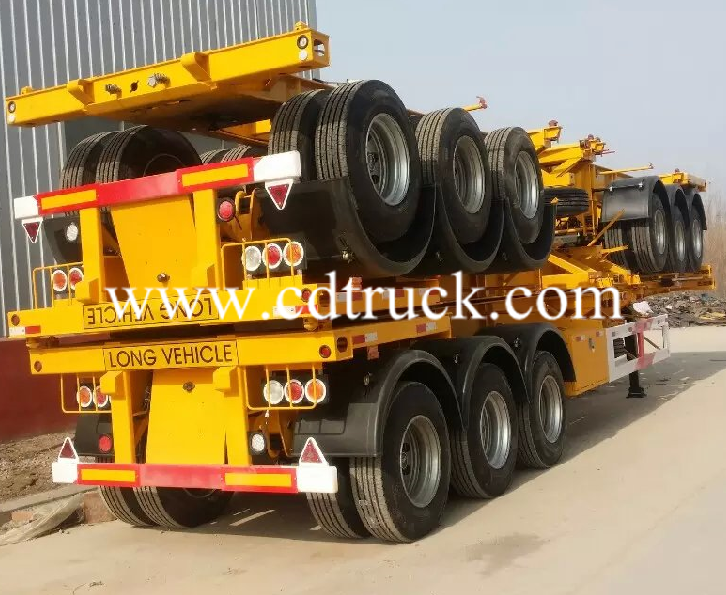

Detailed Images

1. The skeleton skeletal container truck trailer chassis use through-going beam structure, has frame structure with flat type and goosen neck type, also has high integral strength, small weight, beautiful appearance, safe and reliable operation.
2. The skeleton skeletal container truck trailer chassis use advanced manufacture technology , makes automatic submerged-arc welding for vertical beam, use shot blasting treatment for intergral frame, removes welding stress effectively.

Packaging & Shipping
1. Main shipping way by Bulk Ship or RO-RO Ship with a tractor truck.
