3 Axle Cargo Trailer
Product Details
Our 3 axle cargo trailers are specifically designed to meet the needs of long-distance and heavy-duty transportation overseas. They are stable in performance, robust in structure, and adapt well to local road conditions, earning the trust of customers in over 40 countries.
Features of 3 axle cargo trailer
1. High adaptability, tailored to overseas working conditions: Our semi-trailers are specifically optimized for the unpaved roads of Africa, the high temperatures and dust storms of the Middle East, and the rainy and muddy conditions of Southeast Asia. Key chassis components undergo high-temperature rust-proofing treatment.
2. High Cost-Effectiveness and Low Operating Costs
As a manufacturer, we directly connect with customers, eliminating intermediaries and offering factory-direct prices that benefit our clients. The lightweight design of the entire vehicle effectively reduces fuel consumption of the tractor unit; under the same load capacity, fuel consumption per 100 kilometers is 5%-8% lower than similar products. Key components such as axles, brakes, and outriggers are sourced from established brands, resulting in a low failure rate and significantly reducing vehicle downtime for maintenance.
3. Mature Technology and Reliable Quality
With years of experience in semi-trailer manufacturing, our production line is equipped with professional welding, straightening, and painting equipment. Each vehicle undergoes rigorous load and road testing before leaving the factory, ensuring the quality of every unit. The body undergoes multiple anti-rust processes including pickling, phosphating, sandblasting, and baking paint, resulting in a uniform and durable paint finish that can withstand the high humidity of sea transport and complex overseas climates, extending the vehicle's service life.
Applications
1. Construction Material Transportation: Used for transporting sand, gravel, steel, cement, and other construction materials for infrastructure projects.
2. Container Transportation: Used in conjunction with tractor units for transporting 20-foot/40-foot containers between ports, warehouses, and industrial parks (e.g., Singapore Port, Djibouti Port).
3. Agricultural Product Transportation: Used for transporting palm oil, rubber, cotton, grains, and other agricultural products to Southeast Asia and Africa. Optional rain canopy provides protection from moisture and sun.
4. Machinery and Equipment Transportation: Transports small to medium-sized construction machinery (e.g., excavators, loaders) and industrial equipment. Optional detachable side rails facilitate loading and unloading.
5. Cross-border Logistics: Long-distance transportation between Africa and the Middle East, characterized by stable performance, low failure rate, and timely delivery.
Parameters of 3 axle cargo trailer
| Main beam | The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm material:Q345B |
| Side beam | Q235 16# channel steel |
| Axle | 13Ton, Fuwa brand option one hundred fifty thousand Kilometers no need maintenance |
| Tires | 12R22.5, 12 pcs. Taitong brand |
| Rim | 9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
| King pin | 2" and 3.5" removable Kingpin, bolted in type 500mm from the front face of the front bolster |
| Landing gear | 28 ton single action supporting legs |
| Steel spring | 10/10/10 leaf spring suspension |
| Air chamber | Six double air chamber |

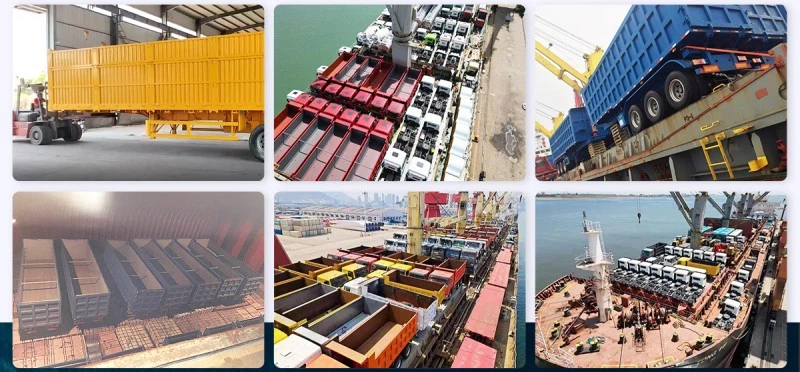

Packaging and Transportation
Transportation Method: Primarily sea freight, providing LCL and ROV services. We can arrange transportation according to customer-required trade terms (FOB, CIF, CFR, EXW).

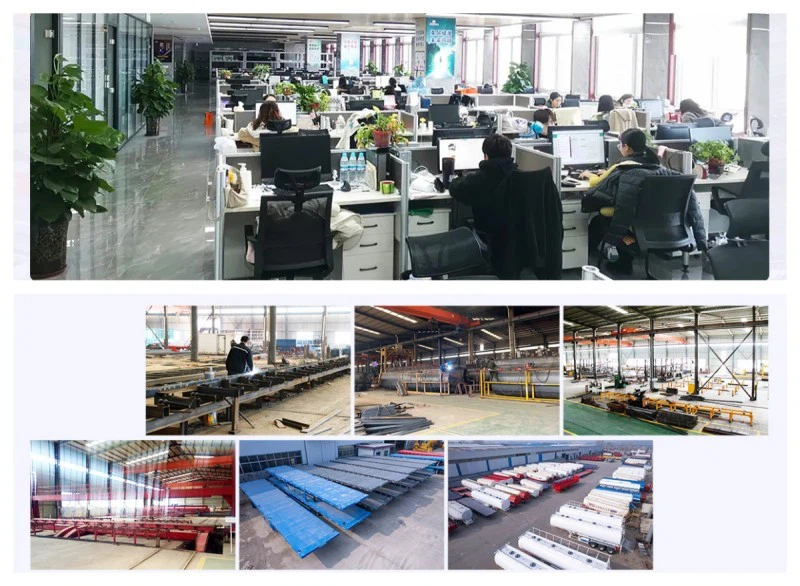

About Us
Our company is committed to providing professional semi-trailer solutions to overseas customers with high-quality products, reasonable prices, and comprehensive services. For detailed pricing and customization options for 3 axle cargo trailers, please feel free to leave a message online!
