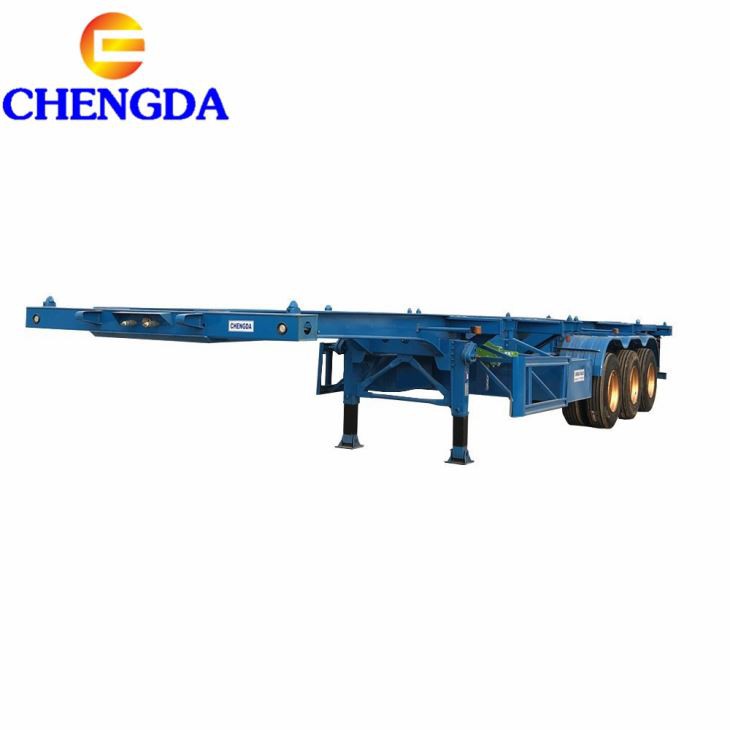

Africa popular low price 20ft 40ft container chassisskeleton semi trailer price Product Description Detail of Product Front Back Detail Packing & Shipping Packing & Shipping Packing:Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final pain 1. Shipping...
Dimension and Weight | |
Overall Dimension(mm) | 12500x2500x1650mm |
Wheelbase | 7,500mm+1,310mm+1,310mm |
Payload | 40,000kg |
Tare weight | 6,500kg |
G.V.W.R. | 46,500kg |
Function | transport 1x20ft, 2x20ft, 1x40ft container |
Running System | |
Main beam | height of the beam is 500mm, upper plate is 14mm, down plat is 16mm, middle plate is 8mm. |
Side beam | 16# |
Axle | 3x13Ton ZY brand |
Axle Number | Three |
Tire | 12R22.5, 12 pcs. Taitong brand |
Rim | 9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
Suspension system | Mechanical Suspension |
Steel Spring | 10/10/10 leaf spring with 90mm(W) *13mm(thickness) |
Electrical System | Chinese standard 24V lighting system |
Brake system | Dual line pneumatic brake, no ABS |
Brake air chamber | 6 units T30/30 Double brake chambers |
Emergency relay valve | Standard |
Diamond plate | 4mm |
Traction/King Pin | 2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster |
Landing Gear | Yahua brand 28ton external two speed telescopic manual operation 2,500mm behind the kingpin location |
Accessories | |
Tool box | 1pcs, One crank and one shaft head wrench |
Mud guard | Steel mud guard and front mudguard |
Spare wheel carriers | 2 pcs |
Bumper | Rear bumper with adjustable height |
Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
One set 6-core electric cable protected by PVC conduit on main frame | |
DetailPacking & Shipping
Packing:Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final pain
1. Shipping by 40HQ or 45HC container,need to be cut out.If you have Welding ability and the width is less than 2.5M,We can choose container ship to transport.
2. Shipping by Bulk Shipment,3 or 4 units trailers can be shipped together to save freight.
3. Shipping by RORO Shipment, drive into the ship.
Shandong Chengda Trailer Manufacturer Co.,Ltd.
Shandong Chengda Trailer Manufacturer Co.,Ltd. established in 2005 is one of the qualified manufacturers of various trailers. Integrated production, scientific research & development and professional sales teams, all those advantages can provide the full service of trailers, semi-trailers, tractor head, dump truck, engineering machinery and trailer parts, our company is a leading provider in this industry, with annual export value reaching above 50million dollars and revenue almost 600 million yuan RMB.With high standard machinery and automatic equipment, powerful R&D team and elite sales team, We have built a long business relationship with many world famous enterprises such as SINOTRUK,SHACMAN,FAW,DFAC,XUGONG Group,LIUGONG Group,SEM Group etc. Besides mature after-sale systems, we can meet different needs of customers both home .
Our factory
Our advantage
1.We have 13 years history in manufacture various trailers.We have our own factory, in this
case,we can give your a more reasonable price with high quality.
2.Integrated production, scientific research & development and professional sales teams, all
those advantages can provide the full service of trailers, semi-trailers, tractor head, dump
truck, engineering machinery and trailer parts.
3.You can totally trust us with the BV,ISO,3C,WMI certification we have.
4.We will design the trailer or truck according to your requirement.We will always try our best
to give you what you want.
Our services
Reply your inquiry in 12 working hours;
Experienced staffs answer all your questions;
Customer’s design is available for certain products(OEM);
Spare parts for all types of engine machinery with reasonable price;
Different kinds of semi trailer can be provided with competitive price.
We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers and nice quality to ensure the trucks and trailers being in good working conditions.
Customer Visiting
1. Q: Are you a manufacturer or trading company?
A: We are direct manufacturer, we have our own factory in Shandong province.
2. Q: How can you ensure the quality of the goods?
A: We are manufacturer with 11 years' experience, every product will be inspected by profesional technician before delivery from our factory.
3. Q: What payment do you accept?
A: T/T, L/C,Trade assurance;
4. Q: What is the MOQ of your products?
A: 1 set;
5. Q: Can we visit your factory?
A: Yes, warmest welcome to visit our factory. We can pick you up in Jinan Airport or Jinan train station.
