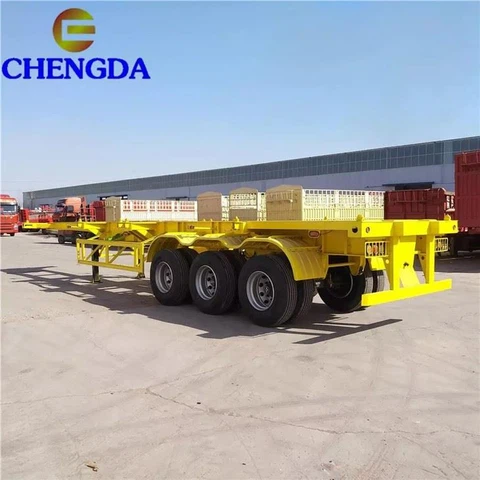

Container Trailer Chassis
Mob/Whatsapp/Wechat:+86-18253112966
E-mail:cdtruck@sinotrucksale.com
Product Details
Why choose Chengda container trailer chassis?
1. The skeleton semi-trailer has excellent cost performance and a high-quality steel structure and is widely used by the majority of users.
2. The main beam structure of the skeleton semi-trailer is designed with variable sections, with reasonable structure, lightweight, large bearing capacity, and simple operation. With 12 container locks, it can transport two 20-foot containers or one 40-foot, 45-foot, and other standard containers at the same time. , fully functioning.
3. The frame of the skeleton semi-trailer is welded by longitudinal beams, beams, and front, and rear beams. The longitudinal beams are made of high-quality steel plate 16mm submerged arc welded into an I-shape, and the beams are punched into grooves with high-quality steel.
Parameter of container trailer chassis
| Dimension | 12400mm*2500mm*1575mm（Size can be choose freely) |
| Tare Weight | About 6.2T |
| Loading Capacity | 30-60T |
| Axle | 13T/16T, FUWA/BPM Brand |
| Rim | 9.00-22.5/8.00-20/8.5-20 |
| Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be Optional |
| Suspension | The mechanical suspension(Germany Type or America Type)or Air suspension |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer(especial for exporting market) |
| Kingpin | JOST brand 2.0 or 3.5 inch |
| Support leg | JOST brand |
| Main beam | Height:500mm, the upper plate is 14mm, the middle plate is 8mm, |
| The down plate is 16mm; the Material is Q345B Steel. | |
| Side beam | 16mm channel steel(Material is Q235steel). |
| Bottom platform | 3mm diamond steel plate |
| Brake chamber | WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber;Two pieces of 45L air tanks |
| ABS | Optional |
| Twist Locks | Four, Eight, or Twelve pieces(Lifting type or Twist screw type) |
| Valve | WABCO valve(special for exporting market) |
| Light | LED light(especially for exporting market) |
| Voltage | 24V |
| Receptacle | 7 ways(7 wire harness) |
| Toolbox | One piece,1m×0.5m×0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve, and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime,2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container |
FAQ
1. What is the available trade term?
A: EXW, FOB, CFR, CIF, etc.
2. What is the payment term?
A: 30% in advance, 70% balance before shipping, T/T, and L/C recommended.
3. How long is the delivery time?
A: 15-30 working days.
4. How about the warranty time?
Ar: 12 months.
5. What is the shipping?
A: bulk ship, ro-ro ship, container ship, flat rack.
