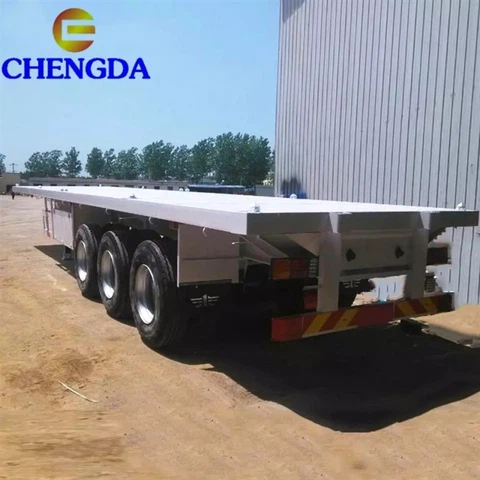

3 Axle 40ft Flatbed Container Trailer
Mob/Whatsapp/Wechat:+86-18253112966
E-mail:cdtruck@sinotrucksale.com
Product Details
We are the leading 3 axle 40ft flatbed container trailer manufacturer in China. Our products are designed to meet the needs and demands of customers in Africa, the Middle East, and other international markets. Our extensive practical experience and in-depth knowledge of the industry and product applications enable us to design and manufacture reliable and durable trailers.
Features of 3 axle flatbed container trailer
The 3 axle 40ft flatbed container trailer is designed to transport heavy-duty containers and cargo, making it ideal for long-distance hauling. The trailer's flatbed combination provides excellent flexibility when loading and unloading cargo, providing ample space for irregular and oversized cargo.
1. Lightweight: Our trailers are made of high-quality materials to ensure they are lightweight, thereby reducing fuel consumption.
2. Durable: We use high-strength steel during the manufacturing process to ensure our trailers can withstand heavy loads and extreme weather conditions.
3. Easy to operate: Our trailers are simple to operate and easy to maintain, saving customers time and energy.
4. Customizable: Our trailers can be customized to our customer’s specific requirements, ensuring they get a trailer that suits their needs.
5. High load-bearing capacity: Our trailers have high load-bearing capacity, which can carry more cargo and increase productivity.
Specification of 3 axle flatbed container trailer
| Name | flatbed semi trailer |
| Loading capacity | 30-60T |
| Tare Weight | 6.5-10T |
| Axle | 2 axles/ 3axles/4 axle/ Multi axle, 13 T/16T/20T BPW / FUWA / Fuhua |
| Rim | 8.00-20/8.5-20/8.8-20 China Brand |
| Tire | 12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional) |
| Suspension | Mechanical suspension(German Type or America Type) or Air suspension |
| Spring leaf | 90(W)mm×13(Thickness)mm×10(Layer)/100mm×12mm×12(specificationcan be Optional) |
| Wheel base(mm) | 6880+1310+1310. |
| Kingpin | JOST brand 2.0 or 3.5 inch bolts type or Welding type |
| Steel Spring | 8/8/8, 10/10/10, 12/12/12 pieces per axle |
| The material of Main beam | Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345B Carbon Steel. |
| Side beam | 16mm-25mm channel steel (Material is Q235 carbon steel) |
| Brake chamber | 6 double brake chamber |
| Landing gear | JOST/FUWA/Yahua brand 28T(two speed or single speed) |
| Twist Locks | Four, Eight or Twelve pieces(lifting type or Twist Screw Type) Optional locks for loading containers |
| Platform plate | 3mm Checkered steel plate |
| Brake system | Dual Line braking system |
| Electrical system | 24V, 7 pin socket, One set 7-core standard Cable |
| Valve | WABCO/KANGJIAN valve |
| Tool box | 1set standard tool box( waterproof type) |
| Spare tire carrier | 1 pieces( Patent type) |
| Light | Tail lamp with turn signal, brake light & reflector, side lamp etc |
| Painting | Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint |
| Shipping Terms | By bulk cargo carrier, RORO or 40HQ container |
Company advantage
We pride ourselves on providing our customers with the highest quality products at competitive prices while meeting their schedules. Our team is dedicated to providing excellent customer service and support, ensuring our customers have access to the information they need.
1. Experienced team: Our team has rich experience, which enables us to provide the best solutions to our customers.
2. High-quality products: We use high-quality materials, coupled with first-class manufacturing processes, to ensure that our products are of the highest quality.
3. Competitive Prices: We offer our products at competitive prices, ensuring our customers get value for money.
4. Timely Delivery: We understand the importance of timely delivery and we strive to ensure that our products are delivered within the agreed time.
In conclusion
If you're looking for a high-quality, reliable, and durable 3 axle 40ft flatbed container trailer, look no further. Our products are designed to meet our customers' specific needs while delivering superior performance, and we are committed to customer satisfaction.
