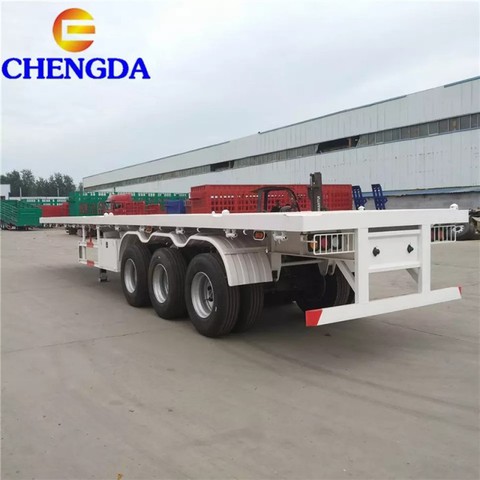

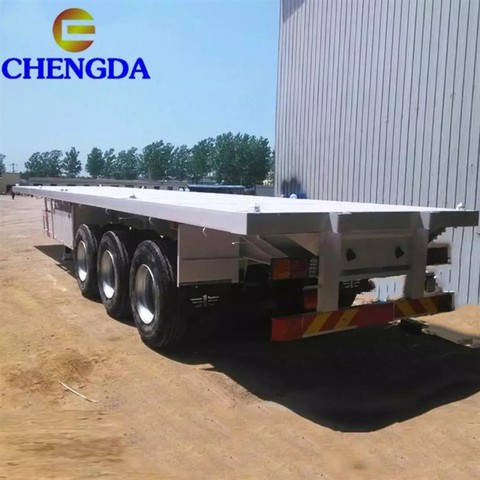

3 Axle Flatbed Container Trailer
Mob/Whatsapp/Wechat:+86-18253112966
E-mail:cdtruck@sinotrucksale.com
Product Details
The 3 axle flatbed container trailer is a high-quality semi-trailer produced by Chengda Group, one of the well-known semi-trailer manufacturers in China. The trailer is designed and built to meet the needs of transporting different types of cargo, including containers, steel, and other bulky cargo. It is also ideal for long-distance transportation, so it is popular with freight companies all over the world.
Features and Benefits
The 3 axle flatbed trailer is equipped with a strong steel chassis for excellent load capacity and durability. It also features a lightweight design that reduces fuel consumption and improves the trailer's overall performance. Also, this trailer is equipped with a suspension system that provides a smooth and stable ride even on rough terrain.
The 3 axle flatbed container trailer is equipped with three axles for increased stability and support for heavy loads. It is also equipped with air brakes for safe operation in different weather conditions. The trailer's braking system has an emergency braking system that stops the trailer in an emergency, thus ensuring the safety of the driver and other road users.
The trailer's flatbed design makes loading and unloading more manageable, and its low center of gravity ensures that the load stays stable during transit. In addition, the flatbed of the trailer can be lengthened, so that longer goods such as steel beams and steel pipes can be transported.
The 3 axle flatbed trailer is also equipped with a locking system that secures the cargo in place for extra security during transport. The locking system prevents cargo from moving or falling off the trailer during loading, unloading, or transport.
Specification
| Manufacture | Chengda | ||
| Model | 20 Feet | 40 Feet | 45 Feet |
| Main Beam Material | T700/Q345 Steel | ||
| Main Beam | Upper Plate : 12 mm | Upper Plate : 16 mm | Upper Plate :16 mm |
| Lower Plate : 14 mm | Lower Plate : 18 mm | Lower Plate : 18 mm | |
| Middle Plate : 6 mm | Middle Plate : 10 mm | Middle Plate : 10 mm | |
| Height : 500 mm | |||
| Product size(mm) | 7000x2500x1570 | 12400x2500x 1570 | 13950x2500x 1600 |
| Max Payload | 20 - 60 T | 30 - 80 T | 30 - 80 T |
| Twist Lock | 4 Sets | 12 Sets | 12 Sets |
| Axle | 2/3 Axles x 13 T FUWA/BPW/Other | ||
| Suspension | Leaf spring suspension/air suspension | ||
| King Pin | 2"(50mm) or 3.5"(90mm) JOST | ||
| Landing Gear | 28 Tons Two Speed,JOST | ||
| Brake System | Dual line braking system | ||
| Electrical System | 24V, 7 core socket, lights according to European standards | ||
| Tire | 12R22.5 (8/12 Pieces) | ||
| Color | Customers Optional | ||
| *Above information is the standard Spec. if you need to change the Spec or know more details, please let us know. | |||
Application
3 axle flatbed container trailers can be used to transport a variety of cargo, including containers, steel, and other bulky cargo. It can be used for long-distance transportation and is favored by long-distance freight companies. The extended flatbed of the trailer also makes it ideal for transporting long loads such as steel beams and pipes.
In conclusion
The 3 axle flatbed container trailer is a high-quality trailer designed to meet the needs of transporting different types of cargo. Its solid chassis, lightweight design, suspension system, and other advanced features make it one of the most popular trailers among trucking companies worldwide. Whether you need to transport containers, steel, or other bulky cargo, the 3 axle flatbed trailer is ideal for performance, durability, and safety.
