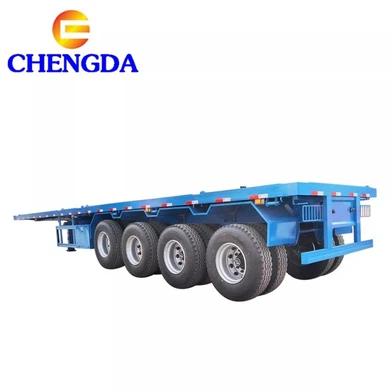

4 Axle Flatbed Semi Trailer
Mob/Whatsapp/Wechat:+86-18253112966
E-mail:cdtruck@sinotrucksale.com
Product Details
As a manufacturer of flatbed semi-trailers, we have been committed to providing customers with high-quality, high-performance products and excellent services. Our 4 axle flatbed semi trailer is a semi-trailer suitable for use in Africa, the Middle East and other regions.
Features of 4 axle flatbed semi trailer
1. Super load capacity
Our 4 axle flatbed trailer is made of high-strength steel. Each bearing can weigh more than 13 tons. The maximum load capacity of the vehicle can reach 100 tons. It is suitable for transporting various types and specifications of goods, such as machinery and equipment, and large buildings. Materials etc.
2. Safe and reliable braking system
Our braking system uses imported components, and they are all CE-certified to ensure the reliability and safety of the braking system. Our semi-trailers are also equipped with anti-lock braking systems (ABS) and electronic auxiliary braking systems (EBS), which greatly improve the stability and reliability of braking.
3. Smart and portable design
Our 4 axle flatbed trailer uses an expanded frame, making the vehicle more streamlined and more beautiful in appearance. At the same time, the detachable isobaric box design increases the stability of the vehicle and better ensures the safe transportation of goods.
4. Durability for long-term use
Our 4 axle flatbed semi trailer uses a baking paint process and anti-rust treatment to provide anti-corrosion treatment to the entire vehicle, which greatly improves the durability and service life of the vehicle while also reducing maintenance costs.
Specification
| Item | Value |
| Overall Dimension(Lx W x H) | 12500*2500*1550(mm) |
| Loading Weight( KG) | 40 - 80 tons |
| Axle Brand | ZY / FUWA / JOST optional |
| Axle Number | 2 / 3 / 4 optional |
| Suspension system | Mechanical Leaf Spring Suspension |
| Leaf spring | 90(W)mm*16(Thick)mm*10 Layer |
| The material of Main beam | Q345B carbon steel,The height of the beam is 500 mm, upper plate is16mm,down plate is 18mm, middle plate is 10 mm. |
| Tire | 12R22.5 |
| Rim | 9.0*22.5 steel disc wheel, 10 holes ISO |
| Brake system | Dual Line braking system / ABS. |
| Landing Gear | Standard 28ton |
| Brake air chamber | Six big chamber |
| Electrical system | Voltage: 24v Receptacle: 7 ways (7 wire harness) |
Why choose Chengda Group?
We have many years of experience in semi-trailer manufacturing and have a complete design, production, sales, and after-sales service system to ensure that customers can receive complete after-sales service and technical support after purchasing our products, thereby meeting their needs and requirements during transportation.
1. Professional R&D team capable of providing customized solutions and products according to customer needs;
2. Excellent staff team with high-quality technical talents and service personnel;
3. Advanced equipment and production technology make the product quality better;
4. High-quality pre-sales consultation and after-sales service, so that customers have no worries.
Summarize
In general, our 4 axle flatbed semi trailer is a high-quality, reliable performance, safe and stable, easy to operate, long-life, and economical semi-trailer product. If you need semi-trailer products and services, welcome to our company for consultation, We will be committed to providing you with quality products and services.
