1. The frame of skeleton container chassis is a beam-through structure, and the longitudinal beam is straight or gooseneck type.
2. Skeleton container chassis has the characteristics of high strength, strong lifting force, good toughness, strong bearing capacity, and no deformation.
3 .Strong load capacity, the frame container semi-trailer has no cargo bed, the container is mounted on the chassis frame, and is fixed by the twist lock device to become the strength member of the semi-trailer.

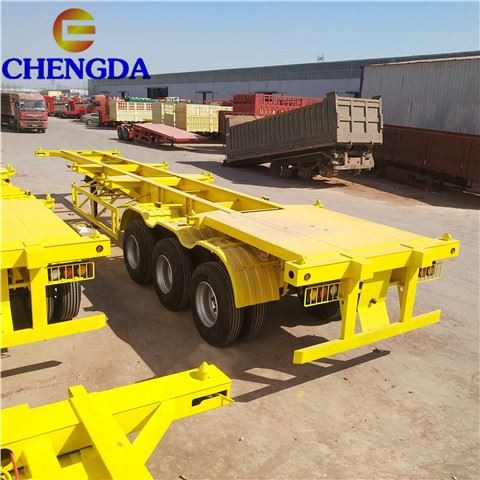

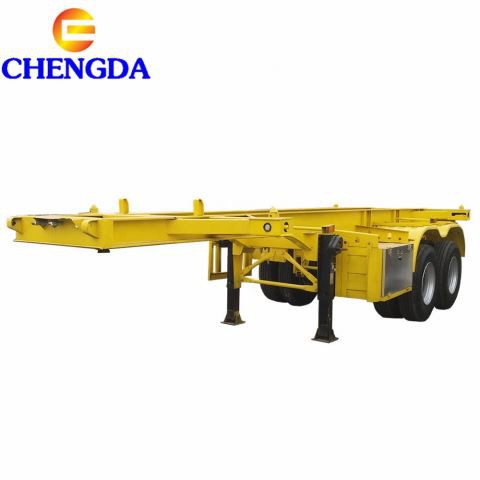

Skeleton container chassis is a kind of container transport semi-trailer. The frame is welded by longitudinal beams, beams and front and rear beams. It is a beam-through structure, and the longitudinal beams are straight or gooseneck.
This skeleton container chassis can load two standard containers of 40 feet and 20 feet. Container locks with four fixed structures at the front and rear ends of the frame, and a hidden adjustable container lock in the middle.
Advantage:
1. The skeleton container chassis has reasonable structure, stable quality and reliable performance.
2. Can be customized according to customer needs
3. The whole skeleton container chassis is made of superior steel, and the accessories are internationally renowned brands, and the quality is guaranteed
4. After standard SA 2.5 shot peening, apply primer, polyurethane topcoat, and wax before leaving the factory to ensure the entire container chassis is anti-corrosion and rust-proof.
Details for skeleton semi trailer
Trailer Model | Skeleton Semi Trailer |
Function | Carry40ft/2x20ft container or other stuff |
Overall Dimension (Lx W x H)(mm) | 12500*2500*1550 |
Tare Weight(KG) | 6550 |
Loading Weight( KG) | 40000 |
Total Weight(KG) | 50000 |
Axle Brand | 13TON Fuwa axles brand |
Axle Number | 3 |
Wheelbase(mm) | 2300+1310+1310 |
Suspension system | Common Mechanical suspension |
Steel Spring | 10/10/10 leaf spring suspension |
The material of Main beam | The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8mm. |
Container Twist Locker | 12pcs container lock |
Tire Type and quantity | 12R22.5 tyres, triangle brand |
Landing Gear | Chinese standard 28ton |
Brake system | Dual Line braking system |
Brake air chamber | Two double and two single chamber |
Packing | NUDE, Polish with wax before shipping |
Packaging & Shipping
1.Bulk
Crane truck directly to the deck, easy to operate
2.RO-RO
Ro-Ro: height of 4 meters, 4.5 meters, 4.8 meters can be put in
3.Container
Container (cutting gooseneck and hydraulic ladder + width of not more than 2.5 meters + vehicle length limit 11.7m)
Chengda has more than ten years of experience in exporting semi-trailers, and can provide you with a variety of transportation options such as container transportation, bulk carriers or ro-ro ships. You can choose the appropriate method according to the timeliness and price.
Q1: I want the tires to be radial tires, is that OK?
A: We can manufacture tires to suit your country's needs according to your requirements.
Q2: What is the quality of your products?
A: Quality is our culture! Our factory takes quality control very seriously!
Q 3: Can I have a sample of this flatbed semi-trailer to test the quality?
A: Yes, you can buy any sample to test the quality, our minimum order quantity is 1 piece.
Q 4: What else can we do?
A: According to your order, we will provide the best price and quality of trucks and trailers.
We have the ability to provide after-sales service overseas. In addition, we provide reasonable packaging and shipping solutions to make the shipping both cost-saving and safe.
Q 5: What is the delivery time?
A: Delivery time is within 30 working days after receiving your prepayment
