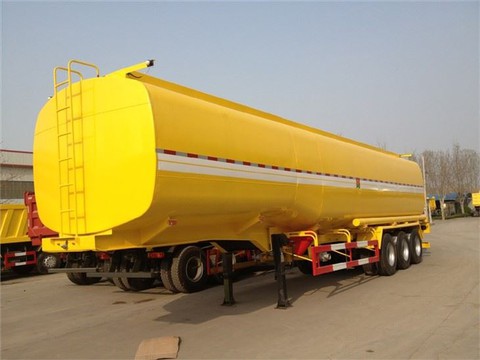

Fuel Tanker Semi Trailer For Sale

1. Our fuel tanker trailer adopts the gooseneck design with low center of gravity, 7% angle is more secure

2. The fuel tanker trailer adopts a semi-elliptical cylinder design, and the volume is increased by 12%

3. The fuel tanker trailer uses automatic arc welding technology, with a service life of up to 10 years

4. The trailer is ADR compliant, rules that apply to most oil companies

Chat Now

Product Details

Chengda fuel tanker trailer undertake advanced layout concept. We will custom designed the semi tanker for sale for you consistent with your request. Chengda offers carbon steel, stainless steel or aluminum fuel tanker trailer. Considering the road conditions, we offer the most durable tanker semi-trailers exclusively for the African market. This distortion resistance, earthquake resistance and bump, make your transport protection, also beneficial.

fuel tank trailer

3 Axle Fuel Tanker Trailer

Most of the fuel tanker trailer is product of carbon steel and aluminum materials. The carbon metallic tank frame is handled by means of rust protection and aluminum tank body by means of contraries. Tri-axle fuel tanker trailer valve adopts domestic famous brands that make the trailer own accurate sealing characteristic.the rear and top elements stepped on equipped with aluminum alloy anti-skid plates can higher avoid the prevalence of slipping accidents.

fuel tank trailer

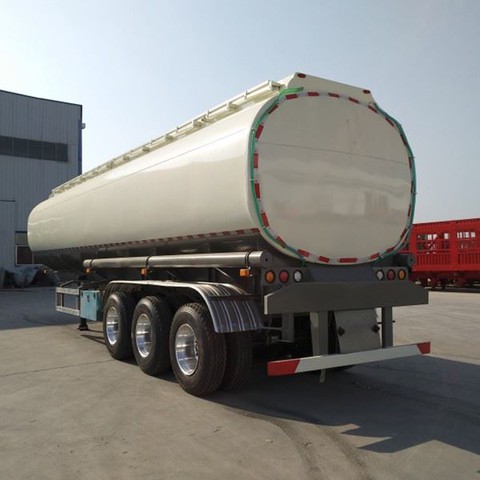

Fuel Tanker Trailer For Sale

Side of the fuel tanker trailer is equipped with fireplace extinguisher may be quickly taken out in an emergency.

Specification

Dimension and Weight
Overall Dimension(mm)	11500x2500x3900mm
Wheelbase	7,500mm+1,310mm+1,310mm
Payload	40,000kg
Tare weight	10,000kg
G.V.W.R.	50,000kg
Tanker
Capacity	42000L
Thickness(mm)	Material Q235 carbon steel Tank body and separate compartment plate: 5mm Dish end plate: 6mm
Compartment	3 compartments ( 3*14000L )
Manhole cover	3 units Safety manhole with breath valve, Aluminum, diameter 500mm.
Bottom valve	3 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand
Discharge pipe	3 seamless steel tube, 6m
Running System
Axle	13Ton, L1 brand optional FUWA brand, 3Axles, one hundred fifty thousand Kilometers no need maintenance
Tire	12R22.5, 12 pcs. Taitong brand
Rim	9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
Suspension system	Mechanical Suspension
Steel Spring	10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Brake system	Dual line pneumatic brake, SAE hose and connector,no ABS
Brake air chamber	6 units T30/30 spring brake chambers
Emergency relay valve	Wabco relay valve
Tire Type and quantity	1200R22.5 12units
Landing Gear	Fuwa brand
