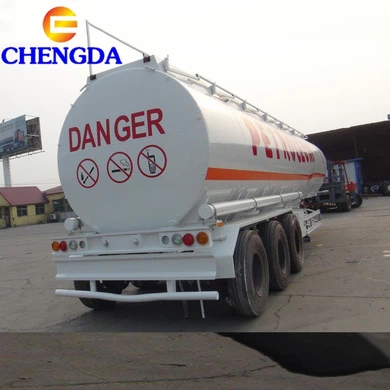

Heavy Duty Oil Fuel Tank Semi Trailer For Tanzania
Product Details
Heavy duty oil fuel tank semi trailer adopts an advanced design concept and is specially manufactured for the Tanzanian market. The tank body is made of high-quality steel Q235B. The frame and suspension are also reinforced, with high density. The tank body is heavier and can withstand a certain degree of impact from the inside or outside.
According to customer requirements and different transportation media, we can manufacture oil fuel tank semi trailer of different materials and volumes, commonly used carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks and plastic tanks.
Among them, the frame of this heavy duty oil fuel tank semi trailer adopts carbon steel high-strength steel frame. The tank body is formed by advanced CNC automatic longitudinal welding process and head arc butt welding process, as well as integral steel-plastic composite forming technology, with high strength and strong airtightness.
Configure:
Overall Dimension(mm) | 12500x2500x4000mm |
Wheelbase | 8,500mm+1,310mm+1,310mm |
Payload | 50,000kg |
Tare weight | 9,000kg |
G.V.W.R. | 59,000kg |
Function | transport Fuel, Oil, Diesel |
Tank | |
Volume | 50000L |
Thickness(mm) | Material Q235 carbon steel Tank body and separate compartment plate: 5mm Dish end plate: 6mm |
Welding standard | All welding are to be done by qualified welder per applicable national standard |
Compartment | 3 compartments ( 3*14000L ) |
Manhole cover | 3 units Safety manhole with breath valve, Aluminum, diameter 500mm. |
Discharge valve | 3units 3 |
Bottom valve | 3 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand |
Discharge pipe | 3 seamless steel tube, 6m |
Tanker body test | Hydrostatic test to 5 psi (35 Kpa) on each compartment |
Running System | |
Axle | 14Ton, L1 brand optional FUWA brand, 3Axles, one hundred fifty thousand Kilometers no need maintenance |
Axle Number | Three |
Tire | 12R22.5, 12 pcs. Taitong brand |
Rim | 9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
Suspension system | Mechanical Suspension |
Steel Spring | 10/10/10 leaf spring with 90mm(W) *13mm(thickness) |
Electrical System | Chinese standard 24V lighting system |
Brake system: | Dual line pneumatic brake, SAE hose and connector,no ABS |
Brake air chamber | 6 units T30/30 spring brake chambers |
Emergency relay valve | Wabco relay valve |
Tire Type and quantity | 1200R22.5 12units |
Traction/King Pin | 2 and 3.5 removable Kingpin, bolted in type 500mm from the front face of the front bolster |
Landing Gear | Zhenhua brand |
Chengda has more than ten years of export experience, and maintains long-term cooperative relations with many freight companies, which can provide you with the best quality transportation services and the best prices.
Our services
Reply your inquiry in 12 working hours;
Experienced staffs answer all your questions;
Customer’s design is available for certain products(OEM);
Spare parts for all types of engine machinery with reasonable price;
Different kinds of semi trailer can be provided with competitive price.
We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers and nice quality to ensure the trucks and trailers being in good working conditions.
If you are interested in further details, welcome to contact us ,thanks !
