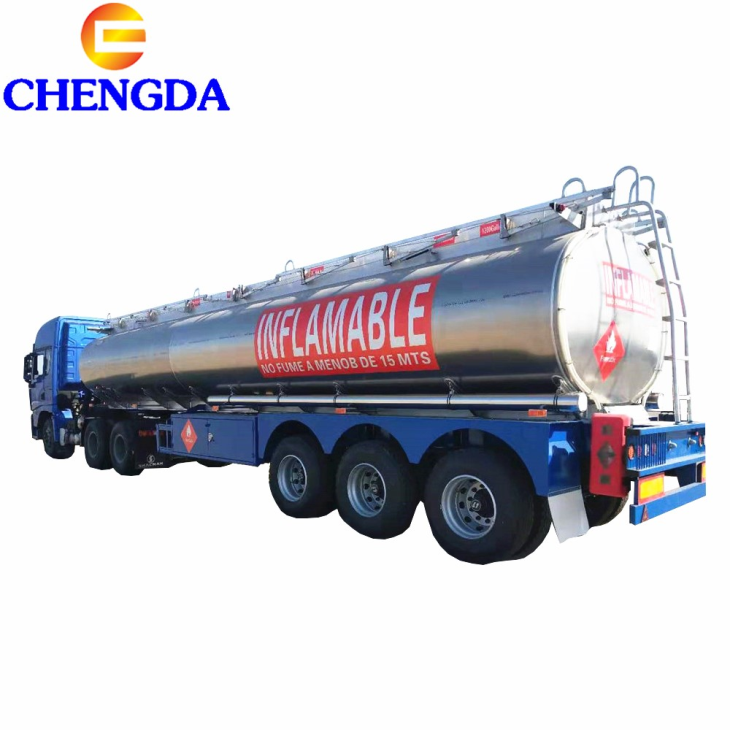

Overall Dimension(mm)

13000x2500x4000mm

Wheelbase

8,500mm+1,310mm+1,310mm

Payload

60,000kg

Tare weight

8,000kg

G.V.W.R.

68,000kg

Function

transport Fuel, Oil, Diesel

Tank

Volume

60000L

Thickness(mm)

Material Aluminum 5083

Tank body and separate compartment plate:  5mm

Dish end plate:  6mm

Welding standard

All welding are to be done by qualified welder per applicable national standard

Compartment

3 compartments ( 3*14000L )

Manhole cover

3 units Safety manhole with breath valve, Aluminum, diameter 500mm.

Discharge valve

3units  3

Bottom valve

3 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand

Discharge pipe

3 seamless steel tube, 6m

Tanker body test

Hydrostatic test to 5 psi (35 Kpa) on each compartment

Running System

Axle

14Ton, L1 brand optional FUWA brand, 3Axles, one hundred fifty thousand Kilometers no need maintenance

Axle Number

Three

Tire

12R22.5, 12 pcs. Taitong brand

Rim

9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs

Suspension system

Mechanical Suspension

Steel Spring

10/10/10 leaf spring with 90mm(W) *13mm(thickness)

Electrical System

Chinese standard 24V lighting system

Brake system:

Dual line pneumatic brake, SAE hose and connector,no ABS

Brake air chamber

6 units T30/30 spring brake chambers

Emergency relay valve

Wabco relay valve

Tire Type and quantity

1200R22.5   12units

Traction/King Pin

2 and 3.5 removable Kingpin, bolted in type 500mm from the front face of the front bolster

Landing Gear
