4 Axle Heavy Duty Lowbed Semi Trailer
Product Details

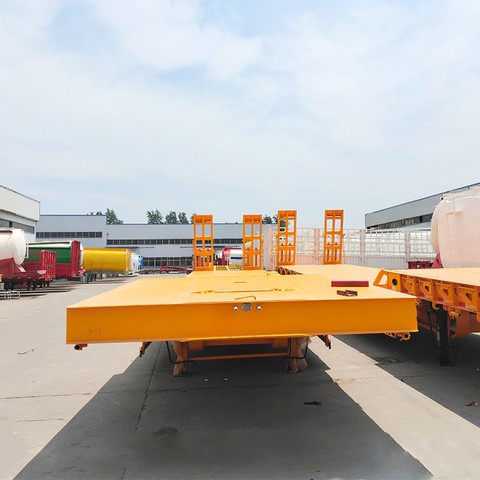

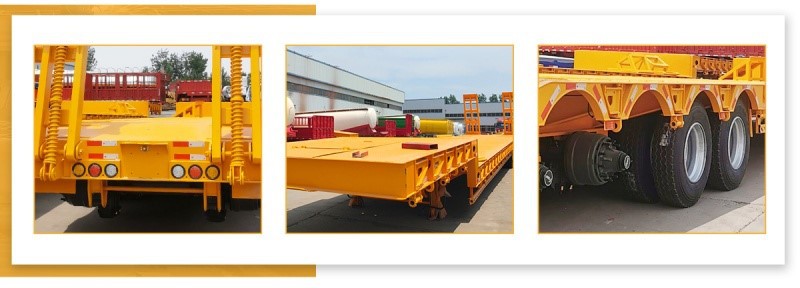

The 4 axle heavy duty lowbed semi trailer consists of a frame, gooseneck, cargo platform, mechanical ladder, tires, etc. The front end of the equipment transport semi-trailer frame is a gooseneck, which is mainly used to connect the traction saddle on the tractor and play the role of a tractor. There is a cargo platform behind the gooseneck, which is characterized by a low load-bearing surface, wide platform, lightweight, large cargo load, and high transportation efficiency.
Why choose our 4 axle heavy duty lowbed semi trailer?
1. Cross support: optional thickened steel plate to increase the load-bearing capacity, the encrypted design provides good transportation stability, and the size and shape can be customized to suit specific cargo.
2. Landing gear: The landing gear can be selected from aluminum or steel; and designed to work in high and low temperatures ranging from -30ºC to 120ºC.
3. Loading ramp: suitable ramp, automatic operation, equipped with an electric or hydraulic system, the ramp design has an expandable function and can be adjusted to suit different load requirements.
4. Lashing Points: High-strength steel with corrosion-resistant treatment meets ISO standards, increases the number of fixing points for greater safety, and increases loading flexibility to accommodate cargoes of different sizes.
Parameters of 4 axle heavy duty lowbed semi trailer
| Type | Lowbed Semi Trailer |
| Dimension(L * W * H)(mm) | 13000 * 3000 * 1650 |
| Working Deck(L * W *H)(mm) | 9000 * 3000 * 1350 |
| Main Beam | Q345 carbon steel, the height of the main beam is 500mm, upper plate is 16mm, down plate is 18mm, middle plate is 10mm |
| Platform Plate | 4mm diamond plate |
| Side Beam | 20# Q235 channel steel |
| Axle | 3 * 13 Ton Axle, FUWA/ZY/BWP brand |
| King Pin | 50#/90# |
| Suspension | Common Mechanical Suspension |
| Steel Spring | 90(W)mm * 13(Thick)mm * 10 Layer |
| Tire Type and Quantity | 1100R20 12units |
| Landing Gear | Standard 28 ton single action supporting legs |
| Brake | Dual line pneumatic brake, SAE hose and connector, optional ABS |
| Air Chamber | Six double air chamber |
Packing and Shipping
1. By 40ft/45ft/40ft container
2. Bulk/RoRo
3. As per your requirements.
Professional packages save you freight. To prevent seawater corrosion, we carefully wrap the film or cover it with tarpaulin.
High-quality paint and professional transportation ensure the good condition of the goods.
About Us
Our company is an integrated industrial and trade enterprise, a semi-trailer manufacturer integrating product design, production, and sales. The main products are 4 axle heavy duty lowbed semi trailers, flatbed semi-trailers, dump semi-trailers, fence semi-trailers, and other special function trailers. Our products are sold well in Southeast Asia, Central Asia, the Middle East, Africa, and other Belt and Road countries and regions. We are committed to providing customers with the most professional transportation solutions and providing a wide range of customized services to meet your special needs.
