detachable hydraulic front loading gooseneck low bed boy trailer for sale Product Description Chengda specializes in the production of special lowboy trailerssuch as detachable gooseneck trailer, hydraulic gooseneck trailer, hydraulic trailer, hydraulic low bed trailer etc. Details pictures...
Front Loading Detachable Hydraulic Gooseneck Low Bed Boy Trailer for Sale
Product Description
Chengda specializes in the production of special lowboy trailerssuch as detachable gooseneck trailer, hydraulic gooseneck trailer, hydraulic trailer, hydraulic low bed trailer etc.
Trailer Model | 3 Axle gooseneck detachable front loading Lowbed Trailer |
Overall Dimension(LxWxH)(mm) | 14900*2500*1500 |
Platform size (LxWxH)(mm) | 6700*2500*700 |
Tare Weight(KG) | 14500 |
Loading Weight(KG) | 80000 |
Axle Brand | 3x13TON, FUWA brand |
Gooseneck | Hydraulic detachable |
The width of Outrigger | 30cm, 22pcs |
Suspension system | Common Mechanical suspension |
Steel Spring | 10/10/10 leaf spring suspension |
The material of Main beam | The height of the beam is 500 mm, upper plate is18mm, down plate is 20mm, middle plate is 12mm. |
Platform plate | 3mm Diamond plate |
Tire Type and quantity | 11R22.5 12units |
Traction Pin | 2", 1 set |
Tool Box | 1 Standard |
Landing Gear | Standard 28Ton |

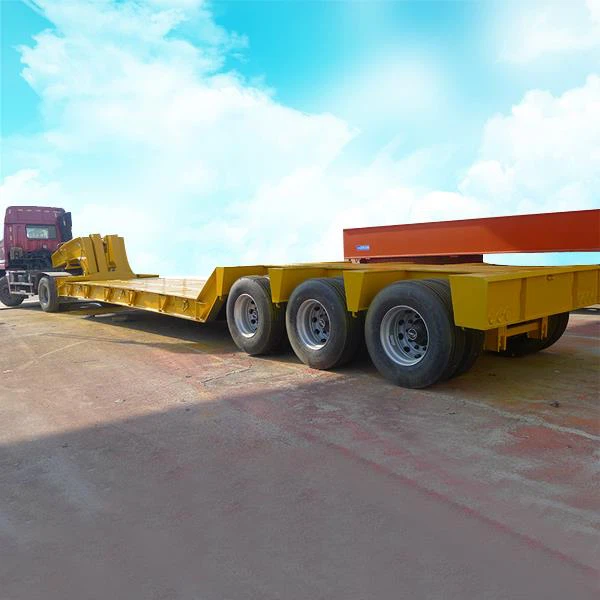

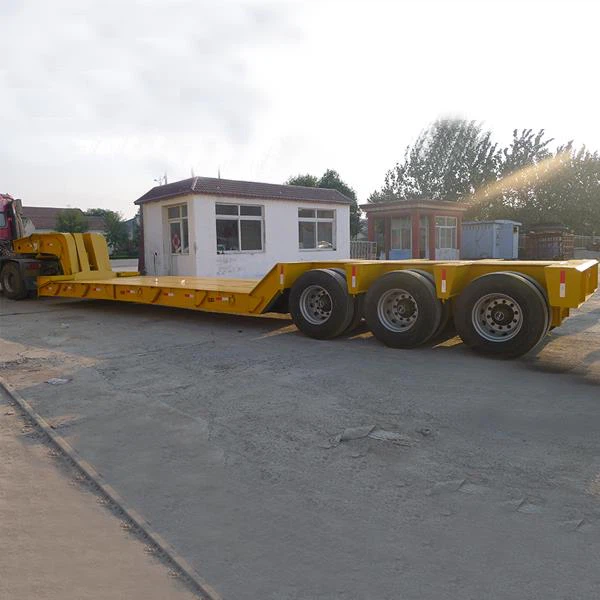

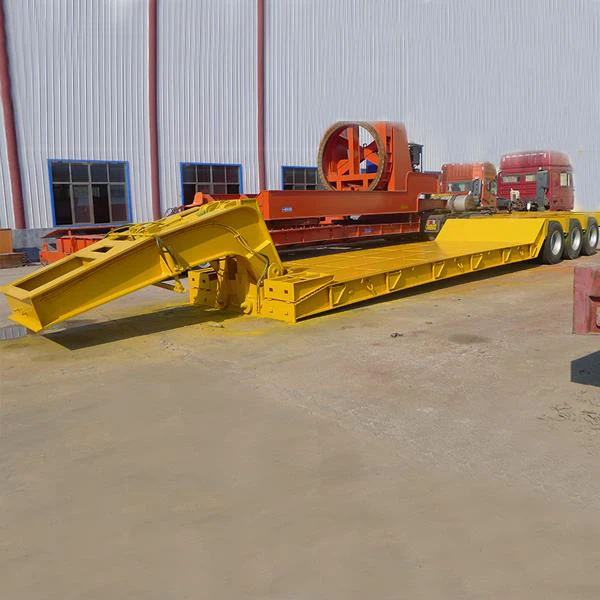

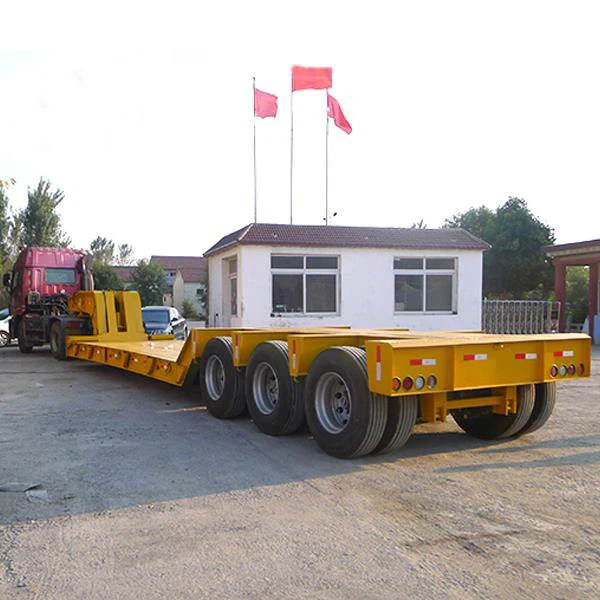

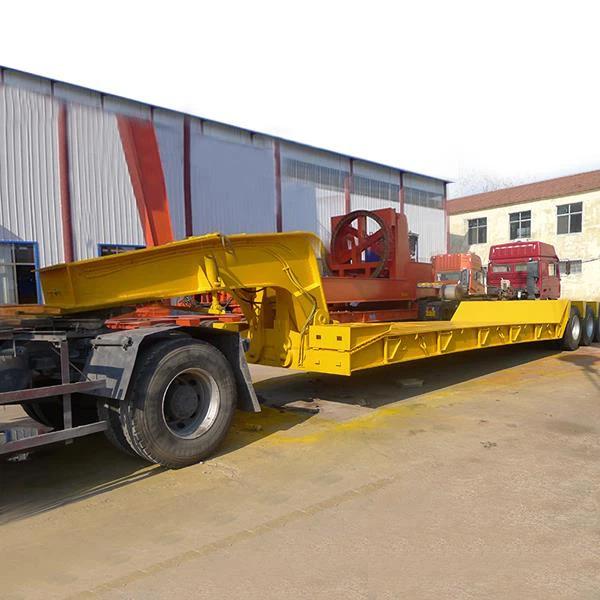

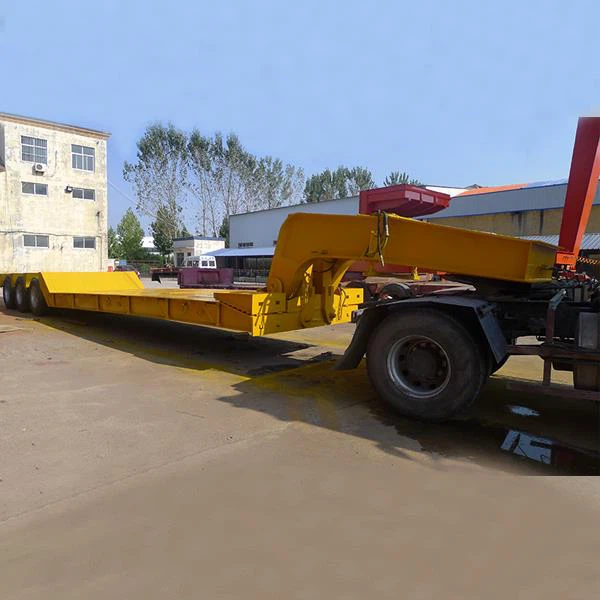

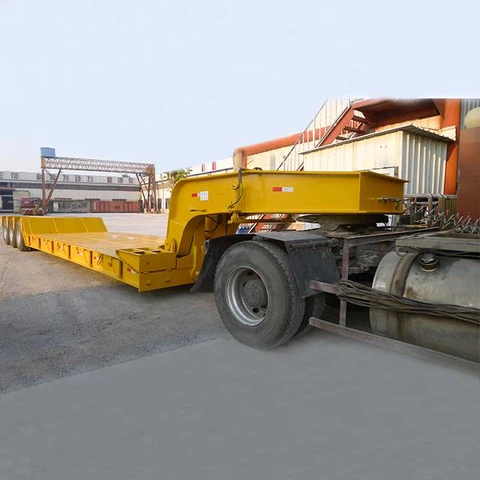

Details pictures

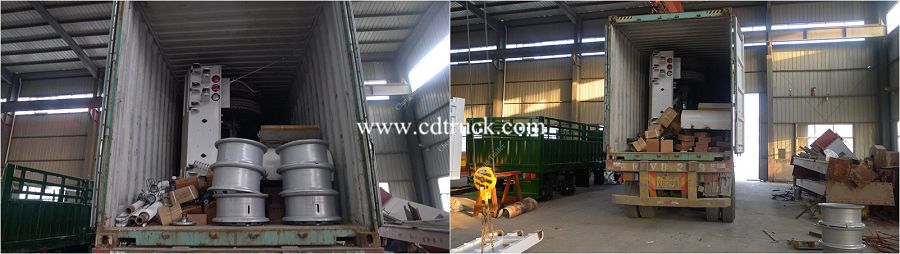

Packaging & Shipping
1. Main shipping way by Bulk Ship or RO-RO Ship:
2. It can be shipped by Container. But goose back and ladder standing could be taken down; operating plate's and wheel frame's demission should not be more than 11.8m.
Certifications
Our factory has BV, WMI, CCC, ISO9001 certifications.
The certifications pcs is attached as followings.
Our Equipment
Equipment for lowbed trailers
