2/3 Axle Utility Side Wall Semi Trailer

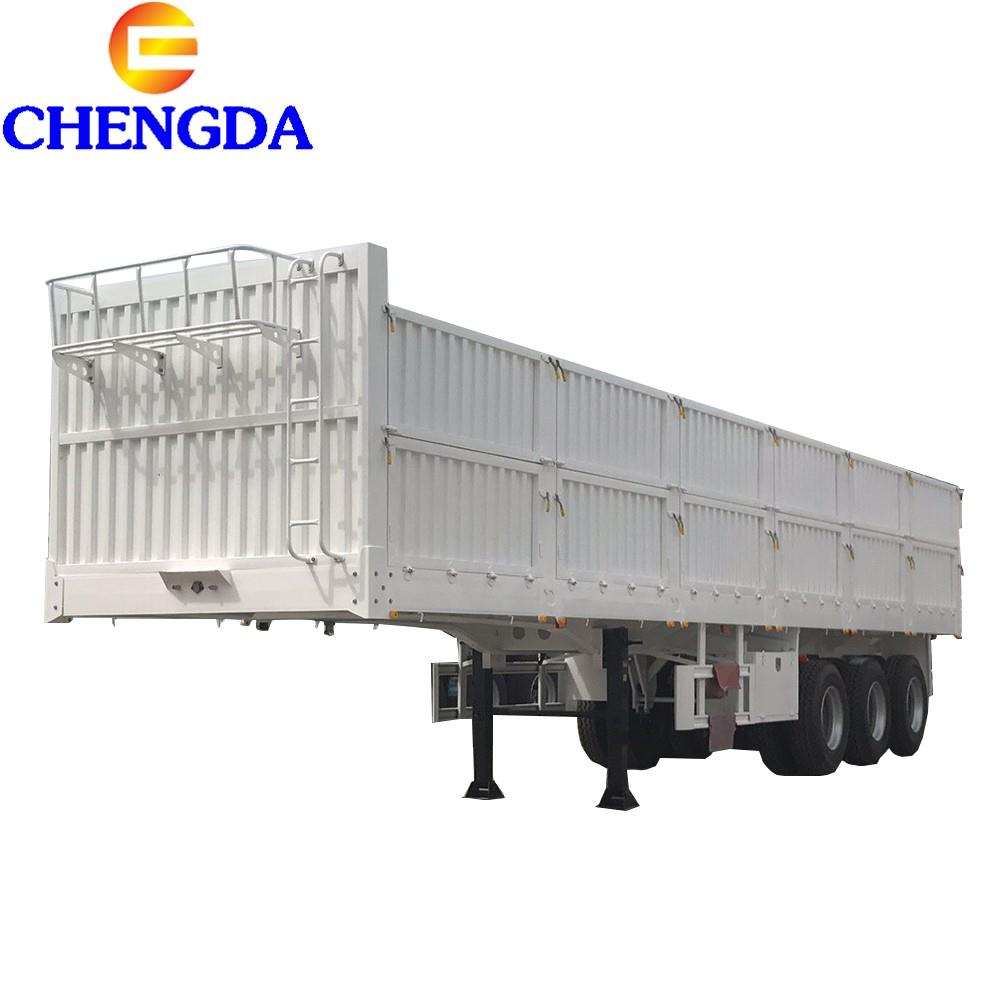

1.Product picture





2.Product parameter

size13000x2500x3500mm
payload60ton
tare weight 10000kg
axle3x13ton/14ton/16ton/20ton   brand can be opentional
suspension mechanical suspension/air suspension/american type/germany type can be opentional
tire11R22.5/12R22.5/11.00R20/12.00R20    brand can be opentional
wheel rim8.25/9.0/8.0/8.5
kingpin 2"/3.5"
I  beam up:14mm;bottom:16mm;middle:8mm;height:500mm;width:140mm:material:Q345B
landing gear jost c200 /fuwa  two speed 28ton
floor/side boardfloor:4mm/board:3mm
twist lock (opentional)
spare tire carrier 2 pcs
tool box1 or more can be opentional
air wiring doule air line ;
electricity wiring 6 core wiring;24v or 12v ;LED lamp;
brake system wabco relay valve;drum brake;t30/30 brake chamber
paiting complete chassis sand blasting;electrophoresis coating;1 coat of anticorrosive prime;
2  coats of final paiting
cylinder130#/140#  5pcs/6pcs opentional
accessories brake shoe;spare tire cranking;shaft head wrench;jack 50ton;tire bolt;lamp



3.NORMAL PROCEDURE

1)cutting
use the plasma cutting machine cut the steel to little parts use for suitable welding and splicing

2)welding
after steel cutting process the next step is welding .this process the main work is beam welding .the top plate-bottom plate and the
middle  plate  will  be welding together .  this process will be use submerged arc welding process.this type of welding is very
special .its exclusively used in I beam welding .after this welding process other parts of the trailer will be use different welding way
for different steel-argon arc welding-electric arc welding-manual welding-gas welding and so on

3)blasting
this process is use for the first step of surface cleanness-stress relief-derusting before paiting .

4)electrophoresis coating
this process use for more detail surface cleanness

5)epoxy zinc primer spray coating
this process is the lasting one before paiting .after this process the trailer an be paiting

6)assembly
after all the process we have mationed .the last procedure of the trailer is assembly.this process all the parts will be assemly .it including tire-wheel rim-king pin-landing gear-suspension-spring leaf -brake chamber-air wiring-electricity wiring-brake system and so on

7)packing
The last process is packing .all the trailer use different packing way as customer requirment.after packing the trailer can be on the way to the customer


FAQ
1)why you will select huayu trailer ?
because we pay more attention to our customer requirment.we produce as the customer requirment completely

2)what superiority huayu trailer have ?
good quality-good after-sales service-good cost performance.we are not the best but we will do our best to service for you

3)what product huayu can supply?
big trailer company not only have superiority product .our product is diversity
