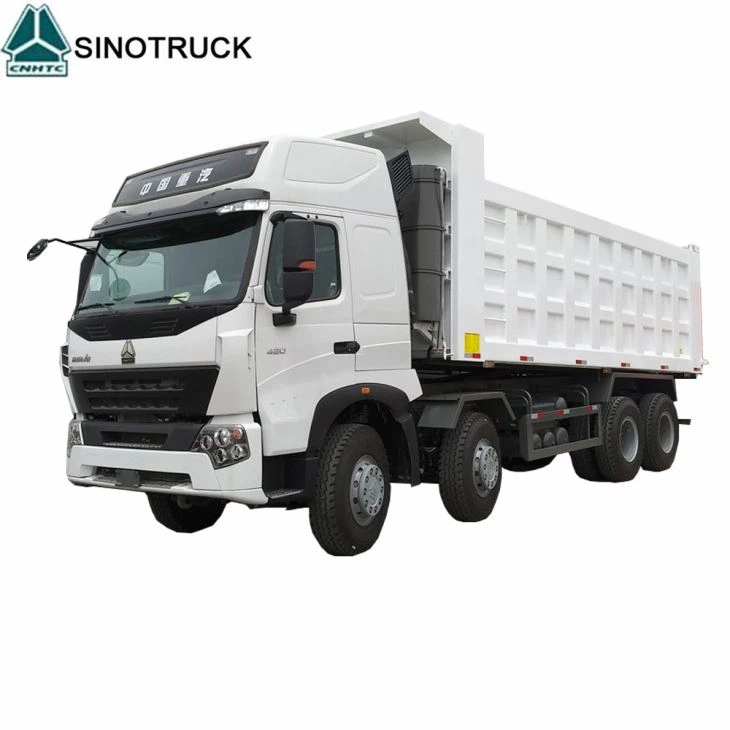

A7 8*4 420hp Dump Truck For Philippines

Truck Brand

SINOTRUK –HOWO

Driving Style

rhd

Color

any

Dimension(Lx W x H)（unloaded）（mm）

8614x2496x3450

Cargo body size (L*W*H, mm) (mm)

5400x2300x1500

Cargo thickness(mm)

Bottom:8mm, Side:6mm (18.63cbm)

Lift type of Carriage

middle lifting

Approaching angle/Departure angle（°）

19/26

Overhang(front/rear) (mm)

1500/1739

Wheel base (mm)

3825+1350

Max speed（km/h）

75

Maximum gradeability (%)

40

Minimum ground clearance(mm)

314

Minimum turning circle (m)

20

Curb weight（kg）

12290

Loading Weight（kg）

30000

Fuel tanker capacity（L）

300

Fuel consumption(L/km)

23L/100 km

Clutch

Single-plate dry clutch Φ430mm

Horse Power, max（kw/rpm）

336hp

Emission

EURO II

Model

WD615，water-cooled，four strokes，6 cylinders in line with water cooling , directly injection

Bore

126mm

Stroke

130mm

Compression ratio

29.8hp/l

Specific fuel consumption

195g/kwh

Transmission

Model

HW19710, 10 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

ZF8118 hydraulic steering with power assistance

Front axle

HF9 ,Steering with double T-cross section beam

Rear axle

HC16,

Pressed axle housing, central double reduction with differential locks between axles and wheels

Tyre

12.0020 12+1pieces

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HOWO76 cab, single sleeper with air conditioner, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder,safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
