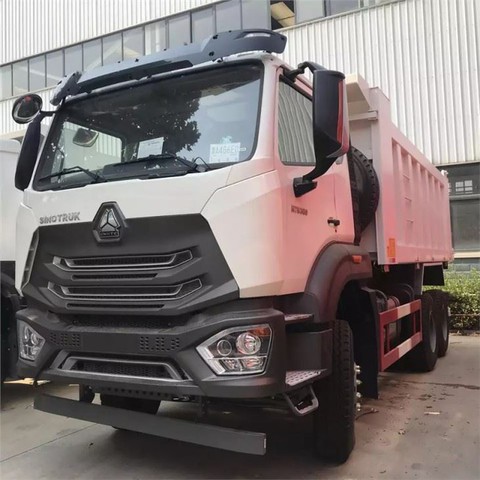

Hohan Dump Truck
Mob/Whatsapp/Wechat:+86-18253112966
E-mail:cdtruck@sinotrucksale.com
Product Details
Features of Hohan Dump Truck
1. Truck body ranges from 15cbm~20cbm, ordinary type dump body for sand and gravel transportation, large stone and rock transportation, and rock type dump body.
2. Tire options: 12.00-20 bias tires, 12.00R20 radial tires, 12R22.5, and 315/80R22.5 tubeless tires.
3. Standard colors: white, red, yellow (other colors are optional).
4. Unloading car body: 5400x2300x1500mm, steel thickness (mm): bottom 8, front 6mm, side 6.
5. Hydraulic lifting system: intermediate lifting (Hyva front lifting is optional).

Specification of Hohan Dump Truck
| Cab | MAN F3000 Cab, Single bed, Air conditioner |
| Dimension(Lx W x H)(mm) | 8500×2500×3450mm |
| GVW (kg) | ≤50000kg |
| Kerb mass(kg) | 15000kg |
| Approach/departure angle | 28/30 |
| Front/rear suspension(mm) | 1525/1654 |
| Max.gradeability(%) | 28 |
| Engine brand | Weichai Engine |
| Engine model | WP10.340E22,340hp |
| Rated output power | 250kw |
| Emission Standard | E-II |
| Displacement(L) | 9.726L |
| Driving type | 6×4 |
| Axle number | 3 |
| Wheelbase(mm) | 3775+1400mm |
| Clutch | 430diaphragm spring |
| Gearbox | FST 12JSD200T-B,12 Forward&2Reverse,Manual |
| PTO | QH50 |
| Front axle | 9.5T MAN, with drum braking system |
| Rear axle | 16T MAN double speed reduction drive axle |
| Steering | ZFtechnologyleft-hand drive(LHD) |
| Type | 12.00R20,10+1pc |
| Suspension | Both front and rear are high strengthened mechanical leaf spring+4 U bolts |
| Tank capacity(L) | 380L |
| Max. speed (km/h) | 75km/h |
| Color | Optional |
| Cargo box size(mm) | 5600×2300×1500mm bottom8mm,side4mm |
| Lifting style | 180 hydraulic front lifting cylinder |
Packaging and shipping
Ro-Ro Ship: It is a special ship for transporting cars and trucks, it has powered wheels, which is the best way for trucking.
Bulk carrier: It is a special ship for transporting dry and bulk cargo such as grain, coal, ore, salt, cement, etc. It can also be used to transport trucks, and the price is cheap, but the trucks are always placed on the deck, and seawater will damage the truck paint.
Container Ship: This is the most well-known mode of transportation and the most expensive of the three.

FAQ
Q1: Are you a manufacturer or a trading company?
A: We are a direct manufacturer with more than 15 years of experience.
Our main products are heavy-duty trucks, electric trucks, and construction machinery. Including howo tractor trucks, dump trucks, trailers, fire trucks, water tank trucks, concrete mixer trucks, special trucks, truck parts and motor graders, wheel loaders, and roller loaders. We can provide these to our clients at good prices.
With good communication and service, our company has exported our products to Nigeria, Angola, Ghana, Libya, Cameroon, Guinea, Congo, Mali, Tanzania, Ethiopia, Algeria, Sudan, Egypt, and other African countries; Peru, South America Chile, Venezuela, Colombia, Brazil, and Argentina; Ukraine, Russia, Tajikistan, Kazakhstan, Thailand, Philippines, Malaysia, Indonesia, Pakistan, Brunei and Bangladesh and other Asian countries and regions

Q2: What is the delivery time?
A: Usually it takes 10-45 working days after getting the down payment.
Q3: How should I pay for you if I place an order with you?
A: We prefer T / T, 30% as deposit, balance before shipment, L/C is also acceptable and negotiable.
Q4: If I don't like the color, can I change the color?
A: Yes, most of our trucks have standard colors, if all colors can not meet your needs, we can customize them according to your requirements.
Q5: Can you provide accessories for this truck?
A: Yes, we can provide spare parts for all the trucks we sell. We have a professional spare parts department. Once you need spare parts, we can provide them immediately.
Q6: How is your product quality?
A: All our spare parts are from the original manufacturer, and the quality is 100% guaranteed.

Q7: How to visit your factory?
A: After arriving in China, you can fly to Jinan Airport. Jinan Airport is located in Jinan City, Shandong Province, our driver will meet you at Jinan Airport and drive you to our place.
