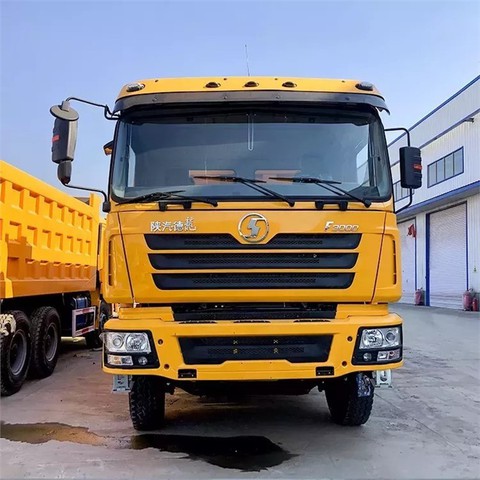

Shacman 6x4 Dump Truck
Mob/Whatsapp/Wechat:+86-18253112966
E-mail:cdtruck@sinotrucksale.com
Product Details
Shacman is one of the oldest manufacturers in the field of heavy trucks in China. Before delivering it to customers, each truck will be strictly inspected. We will provide the test photos and videos of the truck, and we will get it. We are a large and reliable company and enjoy a good reputation. A guaranteed truck will save you a lot of time and help you work more efficiently.
Features of Shacman 6x4 dump truck
With high-level configuration and world-class technology, Shakman's dump truck performance is outstanding.
1. CMS core power upgrade, FST dual-center shaft structure gearbox, HDE high -ration single -grade shaft, the vehicle power increases by 20%, CMS ISM engine.
2. High performance: Improve the muffler, improve the ground clearance, the layout of the new exhaust system, the lowest center of gravity, and the new stable technology.
3. Military-grade chassis, reinforcement cab, upgrade oil bath air filter, enhanced drive shaft, improved cabin front suspension, new front bridge stabilization rod and muffler, imported cabin steering shaft, off-road racing quality cab Damping spring
4. Mature power supply system, improve overall efficiency, extend normal operation time, and reduce maintenance costs.
Specification of Shacman dump truck
| Model | SX33156V366 | |
| Max. running speed (km/h) | 85 | |
| Drive System | 8x4 | |
| Dimensions(L*W*H)(mm) | Overall | 10329x2490x3450 |
| Dump body | 7400x2300x1500 | |
| Tipper thickness (mm) | Bottom 8, side 6 | |
| Hydraulic lifting system | HVYA front lifting | |
| Approach /departure angle (°) | 28/20 | |
| Kerb weight (kg) | 14600 | |
| Total mass (kg) | 31000 | |
| Wheel base (mm) | 1800+3575+1400 | |
| Overhang (mm) (front/rear) | 1525/2054 | |
| Track width (mm) (front/rear) | 1939/1850 | |
| Engine | WP12.430E201(Weichai engine, Euro 2) | |
| Horsepower | 385 hp | |
| Ma. torque (N,m) | 2060 | |
| Displacement (L) | 11.596L | |
| Gearbox | 12JSD200T-B+QH50, FAST Gearbox | |
| Clutch | 430 Diaphragm type | |
| Steering | ZF technology | |
| Cab | X3000 mid-lengthened Cabin with A/C & single-sleeper | |
| Axle | Front axle | 9.5T MAN technology |
| Rear axle | 16Ton MAN casting axle, final ratio 4.769 | |
| Tyre (radial tyre) | 12.00R20 | |
| Oil tank | 400L(ALLOY) | |
Packaging and Transportation
We will provide you with the best transportation solution to reduce transportation costs and ensure that the Shacman 6x4 dump trucks are delivered in a timely manner. Usually, our trucks can be transported by rolling boats or bulk ships or containers, or tablets.
Packaging Details: Rolling or bulk is based on ships and ports in your country/region. If the truck is on the deck, we will spray free rust paint. We usually put the truck in the cabin.
Delivery details: 35-30 days after receiving 15%deposit.
About Us
Shandong Chengda Automobile Sales Co., Ltd. is one of the qualified manufacturers of various trailers, such as low chassis semi-trailers, semi-trailers, freight trailers, etc. With high standards of machinery and automation equipment, strong R & D teams, and elite sales teams, we have established long-term business relationships with many world-renowned companies, such as China Slutron, Shakman, Beichang, etc.
