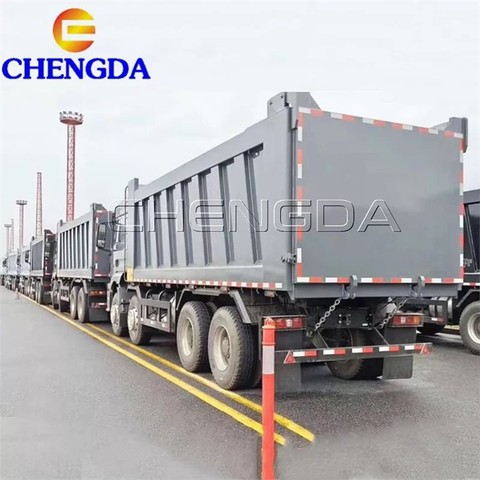

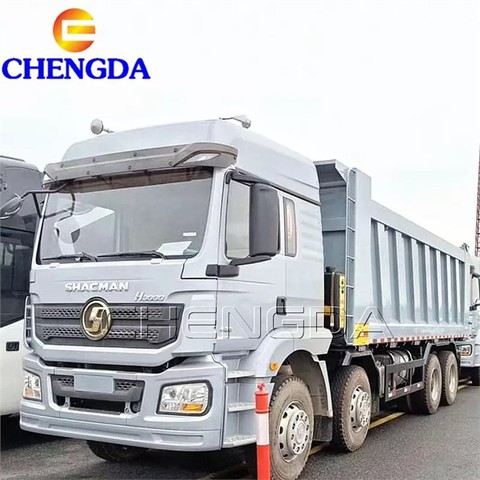

Shacman 8x4 Tipper Truck
Mob/Whatsapp/Wechat:+86-18253112966
E-mail:cdtruck@sinotrucksale.com
Product Details
Shacman is one of the leading heavy truck manufacturers in China. The Shacman 8x4 tipper truck is one of its flagship products, designed and built to conquer some of the toughest terrains and carry the heaviest loads with ease.
The Shacman 8x4 tipper truck is a high-performance vehicle that combines power, durability, and versatility. It is ideal for a variety of heavy-duty applications including construction, mining, quarrying, and transportation. The truck's robust build and advanced features allow it to traverse challenging terrain and withstand harsh weather conditions.
Specification of Shacman tipper truck
The Shacman 8x4 dump truck has an impressive array of features that set it apart from the competition.
| Model | SX33156V366 | |
| Max. running speed (km/h) | 85 | |
| Drive System | 8x4 | |
| Dimensions(L*W*H)(mm) | Overall | 10329x2490x3450 |
| Dump body | 7400x2300x1500 | |
| Tipper thickness (mm) | Bottom 8, side 6 | |
| Hydraulic lifting system | HVYA front lifting | |
| Approach /departure angle (°) | 28/20 | |
| Kerb weight (kg) | 14600 | |
| Total mass (kg) | 31000 | |
| Wheel base (mm) | 1800+3575+1400 | |
| Overhang (mm) (front/rear) | 1525/2054 | |
| Track width (mm) (front/rear) | 1939/1850 | |
| Engine | WP12.430E201(Weichai engine, Euro 2) | |
| Horsepower | 385 hp | |
| Ma. torque (N,m) | 2060 | |
| Displacement (L) | 11.596L | |
| Gearbox | 12JSD200T-B+QH50, FAST Gearbox | |
| Clutch | 430 Diaphragm type | |
| Steering | ZF technology | |
| Cab | X3000 mid-lengthened Cabin with A/C & single-sleeper | |
| Axle | Front axle | 9.5T MAN technology |
| Rear axle | 16Ton MAN casting axle, final ratio 4.769 | |
| Tyre (radial tyre) | 12.00R20 | |
| Oil tank | 400L(ALLOY) | |
Features of Shacman tipper truck
The Shacman 8x4 dump truck has many features that enhance its performance and capabilities.
1. Heavy Duty Frame: The truck has a solid frame that provides excellent stiffness, strength, and durability. The frame is designed to withstand heavy loads and harsh conditions.
2. Advanced Controls: The truck is equipped with advanced controls, making it easy to operate and control. Controls include the integrated instrument panel, multifunction steering wheel, and advanced instrumentation system.
3. High Ground Clearance: The truck has high ground clearance, which enables it to pass through rough terrain and obstacles with ease. The high ground clearance also enhances the truck's stability and handling.
4. Efficient fuel consumption: Shacman 8x4 dump trucks have efficient fuel consumption which makes them cost-effective. Depending on terrain and load, the truck can travel up to 1,500 kilometers on a full tank.
In conclusion
The Shacman 8x4 Dump Truck is an outstanding heavy-duty truck with outstanding performance, durability, and versatility. It is ideal for a variety of heavy-duty applications and is designed to withstand harsh conditions and carry heavy loads. With its advanced features, solid construction, and efficient fuel consumption, the Shacman 8x4 Dump Truck is a must for any heavy-duty job.
