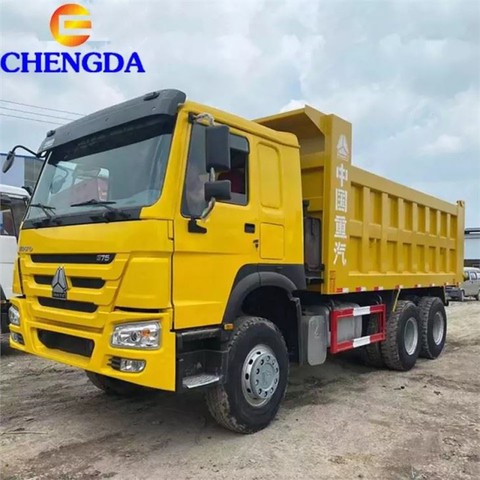

Sinotruk Howo 380 Dump Truck
TEL: +86-0531-69985132
Mobile: +86- 18753151691
WeChat/WHATSAPP: +86- 18753151691
Email: abraham@scdtrailer.com
Product Details
Features of Sinotruk Howo 380 Dump Truck
1. Heavy Five-Plate Spring: HF9-HC16 Heavy Axle, Can Support Pulling Heavy Mines And Sand.
2. Optional Tire: 315, 200R20, or 12R22.5 Tires Can be selected according To Your Needs.
3. Technical Design: accurate angle design, unloading is cleaner and more convenient.
4. Hive Lifting Cylinder: Imported Lift Cylinders For Faster Lifting And More Complete Discharge.
5. Strong Body：8MM Thick Box, Thickened Bottom Plate. More Strong Anti-Weight.
6. New Type Cab: HW76 Cab, Single Sleeper With Air Conditioner, All-Steel Forward Control.
7.We can provide customers with satisfactory services and preferential Sinotruk Howo 8x4 tipper truck prices.
Specification of Sinotruk Howo 380 Dump Truck
| Cab | MAN F3000 Cab, Single bed, Air conditioner |
| Dimension(Lx W xH)(mm) | 8500×2500×3450mm |
| GVW (kg) | ≤50000kg |
| Kerb mass(kg) | 15000kg |
| Approach/departure angle | 28/30 |
| Front/rear suspension(mm) | 1525/1654 |
| Max.gradability(％) | 28 |
| Engine brand | Weichai Engine |
| Engine model | WP10.340E22,340hp |
| Rated output power | 250kw |
| Emission Standard | E-II |
| Displacement(L) | 9.726L |
| Driving type | 6×4 |
| Axle number | 3 |
| Wheelbase(mm) | 3775+1400mm |
| Clutch | 430diaphragm spring |
| Gearbox | FST 12JSD200T-B,12 Forward&2Reverse,Manual |
| PTO | QH50 |
| Front axle | 9.5T MAN, with drum braking system |
| Rear axle | 16T MAN double speed reduction drive axle |
| Steering | ZFtechnologyleft-hand drive(LHD) |
| Type | 12.00R20,10+1pc |
| Suspension | Both front and rear are high strengthen mechanical leaf spring+4 U bolts |
| Tank capacity(L) | 380L |
| Max. speed (km/h) | 75km/h |
| Color | Optional |
| Cargo box size(mm) | 5600×2300×1500mm bottom8mm,side4mm |
| Lifting style | 180 hydraulic front lifting cylinder |
Packing & Shipping
1. Shipping via 40ft headquarters container: container shipping is getting increasingly popular because of the cheapest cost, but we need to disassemble the truck chassis and cab to put the dump truck inside the container.
2. Bulk carrier: The bulk carrier is the most popular and cheapest way of transportation, we can spray wax for the truck before transportation to reduce seawater corrosion.
3. Flat Frame Ship: One flat container can accommodate one 8*4 dump truck.
4. Ro-Ro: The safest way to protect your truck.

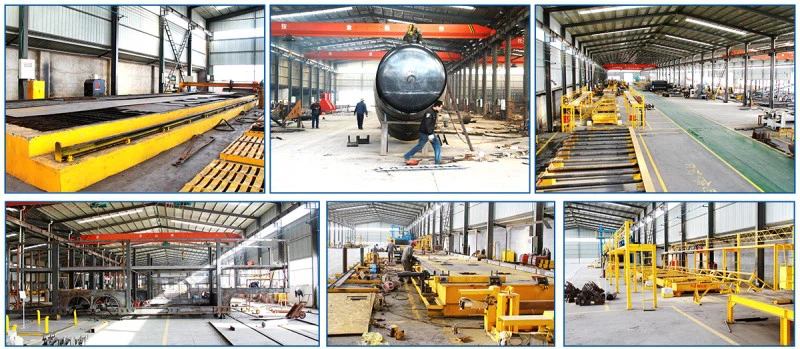

About us
Established in 2005, Chengda is China's top truck export brand. We service trucks and truck parts all over the world. As a one-stop shop, we can provide truck and truck parts technical support, maintenance videos, and manuals.
Every teammate of Chengda has rich truck export experience and is familiar with trucks, which will help our customers find the right Sinotruk Howo 8x4 tipper truck price.
