SINOTRUK HOWO Commercial Sand Gravel 6x4 371 Hp 16cbm 19 20 Cubic Meters Dump Truck

SINOTRUK HOWO Commercial Sand Gravel 6x4 371 hp 16cbm 19 20 cubic meters Dump Truck Product name SINOTRUK HOWO 6x4 6 wheeler 336 hp truck dumper tipper dump truck Product description SINOTRUK HOWO 6x4 6 wheeler 336 hp truck dumper tipper dump truck Shipping Transport the SINOTRUK HOWO 6x4 6...

Product Details

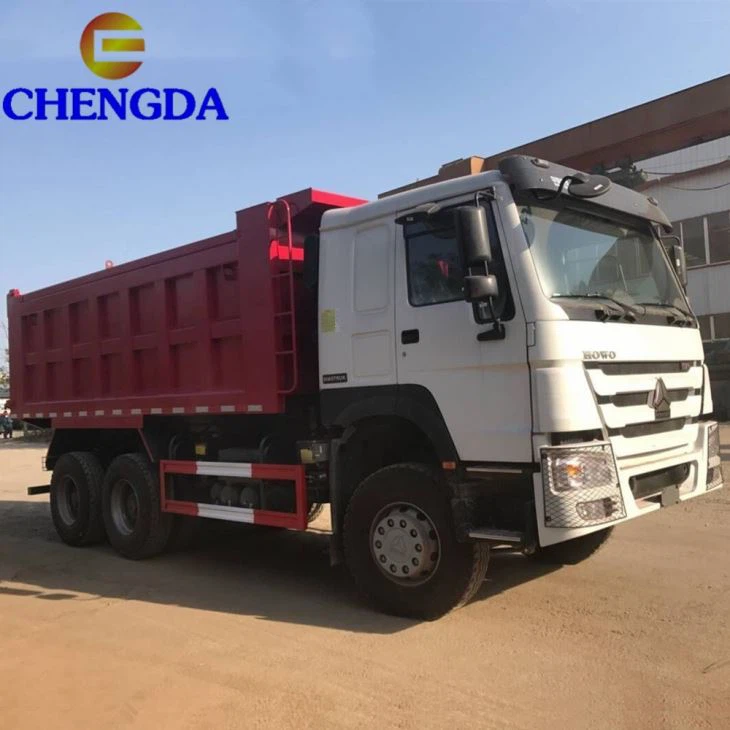

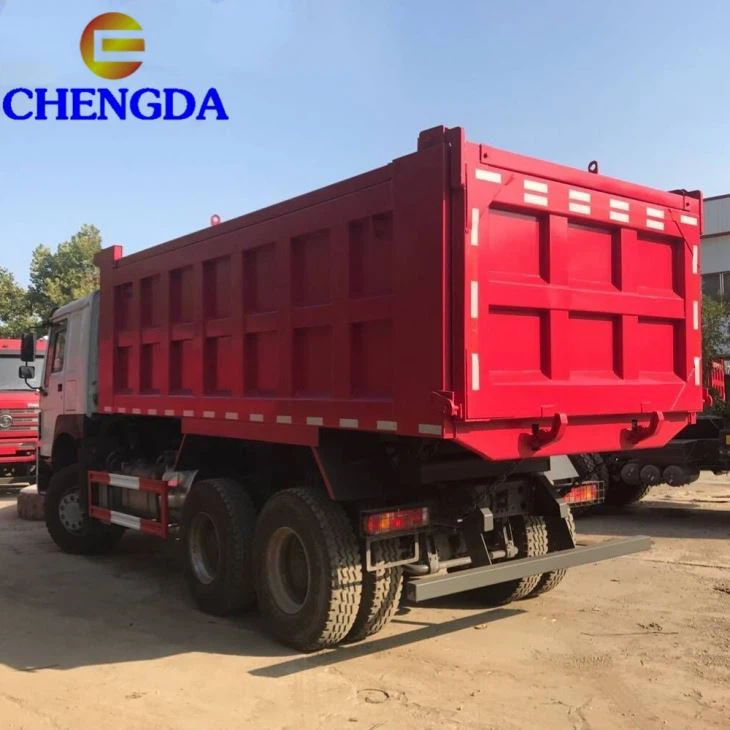

SINOTRUK HOWO Commercial Sand Gravel 6x4 371 hp 16cbm 19 20 cubic meters Dump Truck

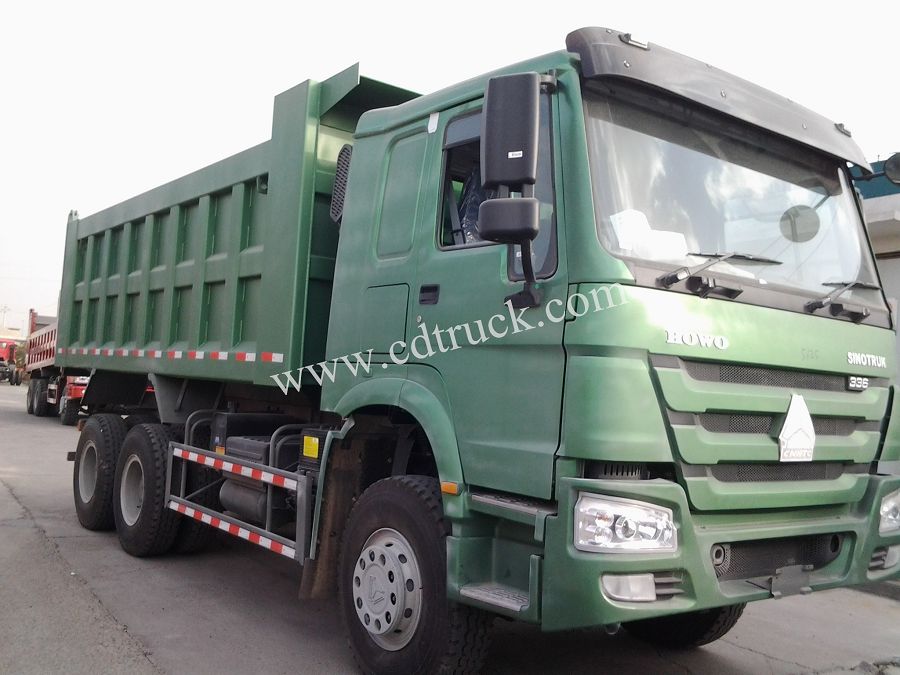

tipper lorry


Product name


SINOTRUK HOWO 6x4 6 wheeler 336 hp truck dumper tipper dump truck


Truck Model

ZZ3257M3247C

Truck Brand

SINOTRUK-HOWO

Driving Style

LHD

Dimension (LxWxH)(unloaded)(mm)

8614x2496x3450

Cargo body size (L*W*H, mm)(mm)

5800x2300x1500

Cargo thickness (mm)

Bottom: 8mm, Side: 6mm

Lift type of Carriage

middle lifting

Approaching angle/Departure angle (°)

19/26

Overhang (front/rear) (mm)

1500/1739

Wheel base (mm)

3825+1350

Max speed (km/h)

75

Maximum gradeability (%)

40

Minimum ground clearance (mm)

314

Minimum turning circle (m)

20

Curb weight (kg)

12290

Loading Weight (kg)

30000

Fuel tanker capacity (L)

300

Fuel consumption (L/km)

23L/100 km

Clutch

Single-plate dry clutch Φ430mm

Engine Model (Steyr technology, made in China)

Fuel type

Diesel

Horse Power, max(kw/rpm)

336hp

Emission

EURO II

Model

WD615, water-cooled, four strokes, 6 cylinders in line with water cooling, directly injection

Bore

126mm

Stroke

130mm

Compression ratio

29.8hp/l

Specific fuel consumption

195g/kwh

Transmission

Model

HW19710, 10 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

ZF8118 hydraulic steering with power assistance

Front axle

HF9

Rear axle

HC16

Tyre

12.0020

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HW76cabin, one sleeper, with air conditioner



Shipping


Transport the SINOTRUK HOWO 6x4 6 wheeler 336 hp truck dumper tipper dump truck

By flat rack, bulk cargo or Roll-roll, You can choose the best one for delivery


10 wheeler dump truck for sale

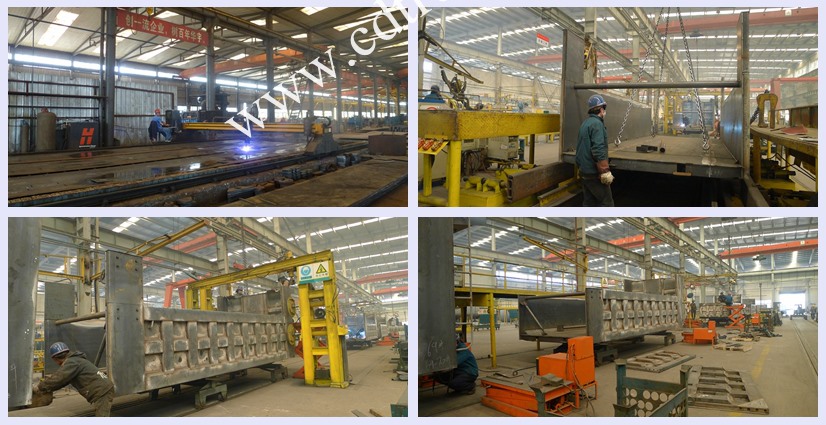

Workshop



sand dump truck


Certification


BV SGS ISO9001 WMI for the SINOTRUK HOWO 6x4 6 wheeler 336 hp truck dumper tipper dump truck




Main Products


We can provide various trailers such as heavy duty low bed semi trailer, flatbed container semi trailers, skeletal container semi trailer, side wall semi trailer, cargo box semi trailer, dump trailers, bulk cement tanker trailer, fuel tanker semi trailer, stainless steel tank trailer, aluminum tank trailer, car carrier semi trailer, and can be manufactured as special design
As the first class the agent of SINOTRUCK and SHACMAN, we can export the SINOTRUCK and SHACMAN brand tractor head, dump truck, fuel tanker truck, water tanker truck, cargo truck , concrete mixture truck etc with great price and service advantages.
Except trucks and trailers, our company can also provide trailer parts and engineering machinery such as crane and excavator etc.


sand dump truck price


Our Service


1. Based on the customer's country roads situation, transport goods and loading weight requirment, provide semi-trailer solution.
2. We have Experienced sales and engineer support every requirment.
3. Customer's design is available for certain products (OEM);
4. Spare parts for all types of semi-trailer and truck with discount price.
5. BV SGS CCC ISO WMI Certificate of conformity.
6. English operation Manual.
7. Offer free spare parts for every customer, like speeders,spanner etc.


Our customers


 QQ20160510152428



Product Description

336 371 HOWO dump truck

dump (8)





Do you want to know more about our products? Plz send me inquiry,you will get more info of it.

Add to my  favorite

Packaging & Shipping

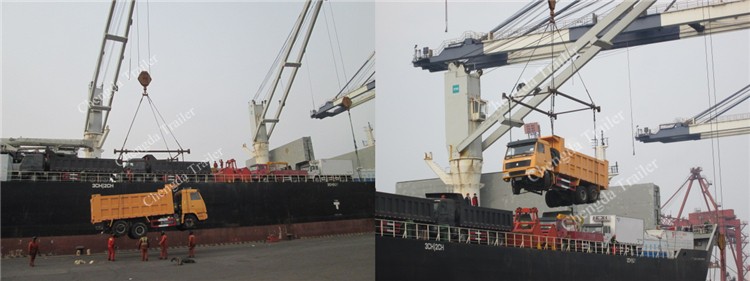

Dump truck can be transported by bulk cargo ship, put the truck and trailers on the deck:

RoRo ship, drive the truck in the cabin of ship.

Attached the loading pictures for your check,my dear customers.


Dump truck also can be shipped by flat rack,one truck use one flat rack as the following pics.




Company Information

 (1)Generally introduction:

China National Heavy Duty Truck Group Co., Ltd has nearly 60 years’ history since 1958, where the first heavy duty truck was produced in China. CNHTC introduced STEYR and MAN technology in 1983 and 2009 year separately, ahead of other truck suppliers at home.

The sales volume broke through 100,000 units early in 2007, becoming a listed company and one of top five truck suppliers worldwide.

(2)Products:

Brand SINOTRUK: HOWO A7, HOWO, HOVA, SWZ, STEYR, HOKA, Yellow River, etc

Series: cargo truck, dump truck, tractor truck, special truck, bus, etc

Driving type: RHD, LHD

Engine:with STEYR, MAN technology

Emission: EURO II, III, IV, V

 (3) Truck parts:

We have our own spare parts departments,have strong production and distribution capability.We can satisfy your demand within 2-7days.We always do our best to solve the problems,and put our  customers ' demand in the first place.




Our company integrates scientific research, product design, production and sale together. We possess top-ranking numerical control cutting machines, automatic welding machines, large-sized binding machines, the greatest entire-car-passing type shot blasting machines, 21m super great paint spraying and paint baking rooms, over 400 sets of various production checkout equipment, including Switzerland four-wheel alignment gauges, advanced production lines and modern assembling equipment.

Factory for 336 371 HOWO dump truck




Our products with BV, WMI, CCC and ISO certificate approved!







Our Services

1.11 years manufacture experience, good at controlling our products' quality. Choosing us ,you choose professional supplier.

2.The good faith management is our philosophy,and welcome visits our company at any time.

3.According to your order, we provide suitable trailer.

4.We also provide rational packing and shipping program, let shipment save money and security.

Just trust us,you will get a satisfactory answer.


Experienced and technological team customize the best productions for customers.Our trailers are hot sale in the international market,such as Africa market(Tanzania,Kenya,Angola,Algeria and so on).Mid-east,South-Asia (Burma,Vietnamese,Thailand...) and South America market.






FAQ

1.Does your company is a factory or trade company?

We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.



2.Whats the qualify assurance we provided and how do we control quality?

1. Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.



2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.



3. What’s your MOQ?

One unit trailer or truck.



4. How do you transport the semi trailers and trucks?

We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.

 bulk or container.

 5. Can you satisfy my special requirement?

 Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
