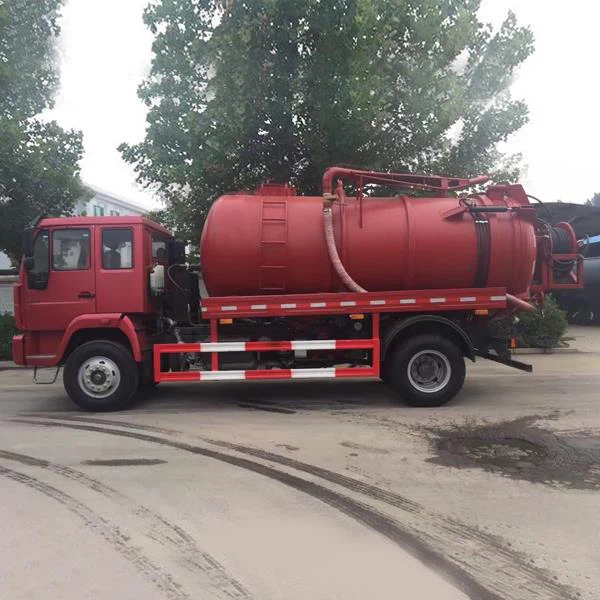

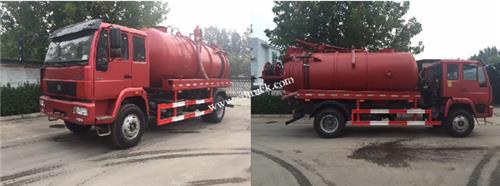

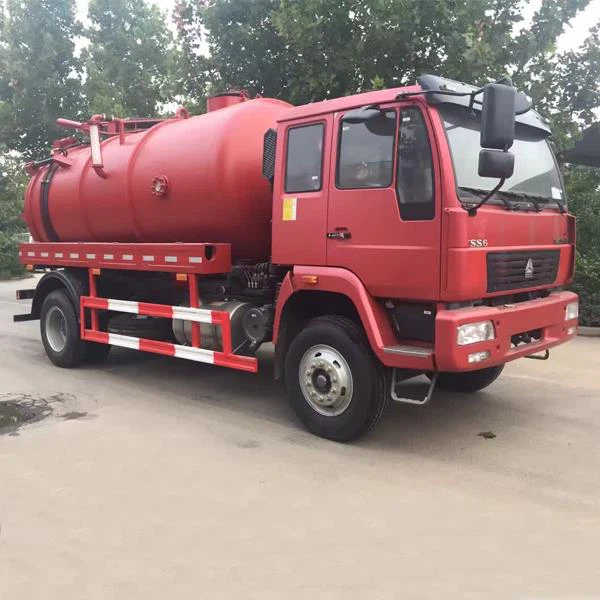

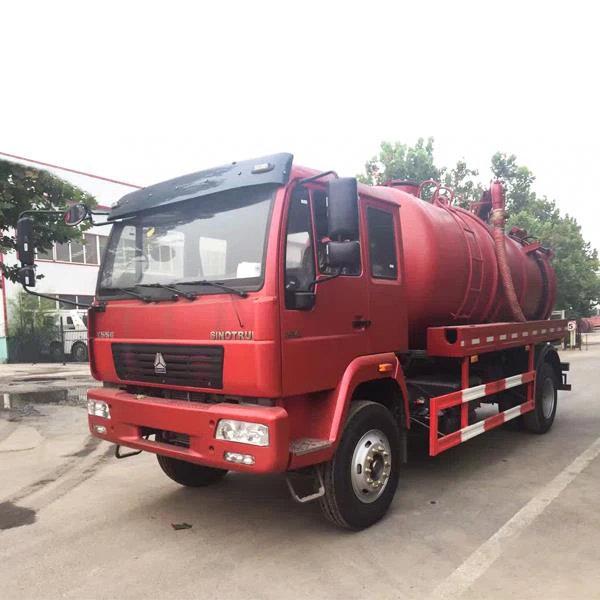

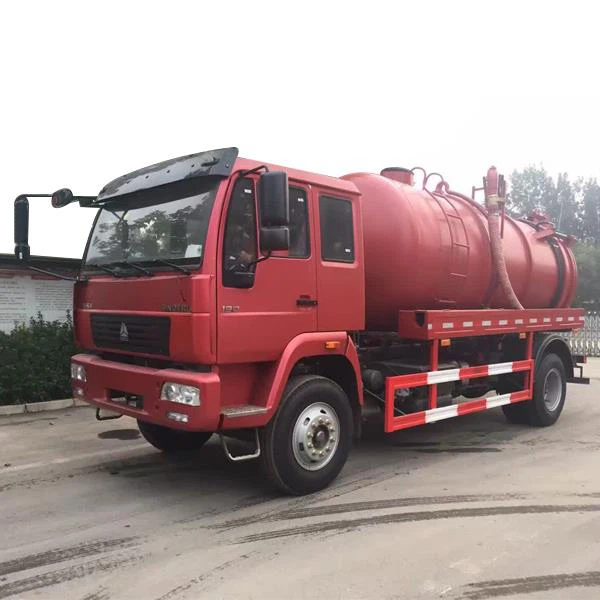

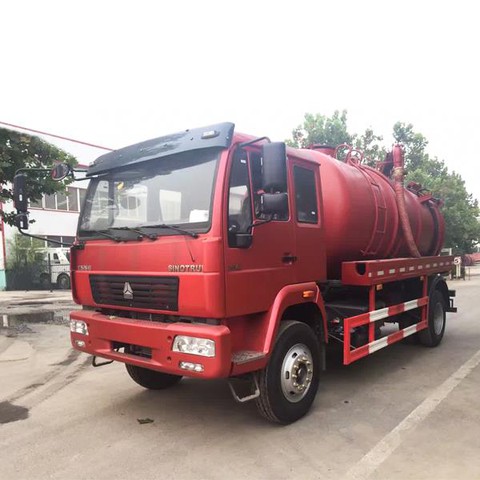

China SINOTRUK HOWO 6 Wheeler Vacuum Suction Sewage Tank Truck

loading capacity

10m3

Parameters

Overall dimension L/W/H (mm)

8250×2490×3300

Curb Mass (kg)

7925

Fuel Type

Diesel

Max Speed (km/h)

90

Cabin Construction

Forward Control, All Metal, Tilt Cab, With Air-condition.

Cab Seating capacity

Driver + 2 Passengers, one sleeper

Parking Brake

Hand Operated, Spring Actuated, Acting on Rear Wheels.

Engine

Type

B190 33

Displacement(ml)/Power(hp)

5900/190

Emission standard

EGR

Transmission box

8Forward Gears 1 reverse gear

Chassis

Drive position

RHD and LHD optional

Drive type

4x2

Wheelbase (mm)

4500

Tire Type

10.00-20

Tank Construction

horizontally mounted tank with domed ends, Internal welded surge baffles, Full tank length sub frame with side walks, Access ladder to top inspection cover, Sub frame integral with tank & dismountable from chassis, Lockable quick release locking mechanism on inspection cover. Durable internal corrosion protection, Fabricated from 5 mm medium carbon steel plate welded from inside and outside, Lifting eyes on top of tank for handling, Quick opening 100mm intake & purge valve, Float ball (full tank) shut off valve to stop entry of liquid into pump suction. Sight glass at front ded end indicating maximum liquid level.

Pumping
Equipment

Power Source: Driven by main engine through PTO shaft.

Pump Accessories: Vacuum pressure gauge, Automatic pressure relief valve, Automatic vacuum relief
