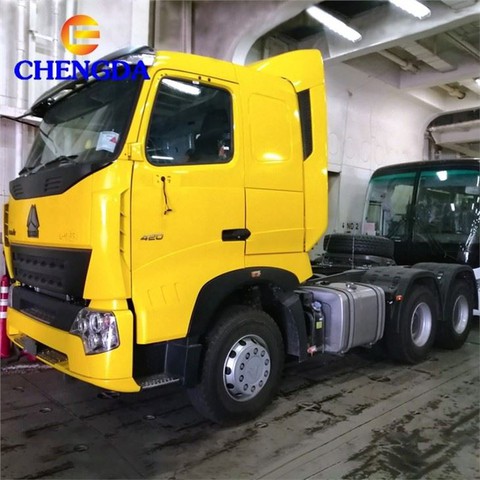

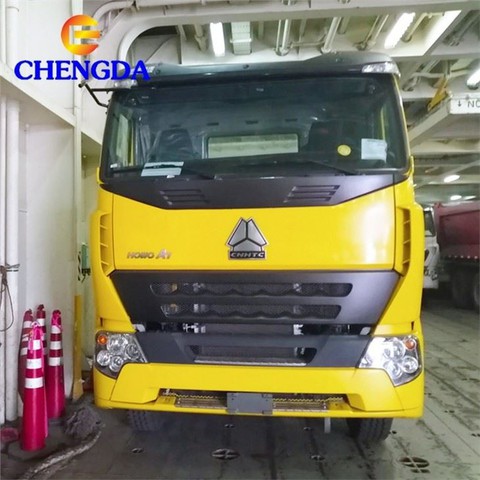

Howo A7 Tractor Head
Mob/Whatsapp/Wechat:+86-18253112966
E-mail:cdtruck@sinotrucksale.com
Product Details
Features of Howo A7 Tractor Head
1. Cab (model can be replaced): All the main body adopts the overall steel frame structure, which is hard and firm, and has high collision resistance and impact resistance.
The new comfortable and spacious cab provides you with a more perfect feeling, a more concise operation panel, and a large foreground glass. Inside and outside the car with circulating air conditioning, an anti-skid steering wheel can prevent hand sweat slipping.
2. Axles (model interchangeable): Optimized final drive structure, allowing the modular design of large gears; reinforced input shaft and propulsion structure with integral thru-axle.
3. Engine (model can be replaced): Sinotruk engines are characterized by small size, lightweight, high power, low fuel consumption, advanced emission targets, and strong noise. It is all kinds of construction machinery for heavy trucks, passenger cars, power generation equipment, ships, etc.
4. Howo A7 tractor head tires: 12.00-20 or 12R22.5 or 295/80R22.5, steel wire tires are wear-resistant and puncture-resistant; good cushioning performance, low driving temperature; good stability and safety performance, high cruising range; strong bearing capacity, safety factor high. Vacuum tires have better elasticity and wear resistance; better adhesion and heat dissipation; economical and durable.
Just get in touch and specify your shipping needs and we will customize a tractor with different load weights and volumes and colors for you.
Parameter of Howo A7 tractor head
|
Truck Model |
ZZ4257N3247V |
|
Type of Vehicle |
TRACTOR TRUCK |
|
Truck Brand |
SINOTRUK-HOWO |
|
Driving Position |
Left-hand Driving |
|
Fuel tanker capacity |
400L |
|
The Total Mass |
40,000kg |
|
Dead Weight |
8800kg |
|
Max speed |
102km/h |
|
Color |
Optional |
|
Chassis & Add Components |
|
|
Frame Details |
High-strength U-profile ladder frame with Section of 300*90*8mm and reinforced subframe, all cold riveted cross members. |
|
Dimension(L×W×H)(unloaded) |
6800x2496x3563mm |
|
Approaching angle/Departure angle |
16/70 |
|
Overhang(front/rear) |
1500/725mm |
|
Wheelbase |
3225+1350mm |
|
Engine |
|
|
Model |
WD615.47 |
|
Power |
371hp/272kw.2000r/min |
|
Emission |
EURO II |
|
Cylinder bore*stroke |
126*155mm |
|
Displacement |
9.876L |
|
Type |
water-cooled, four strokes,6 cylinders in line, turbocharged, direct injection. |
|
Kind of Fuel |
Diesel |
|
Fuel Consumption |
30L/100km |
|
Clutch & Gear Box System |
|
|
Battery |
2X12V/165Ah |
|
Alternator |
28V-1500kw |
|
Starter |
7.5Kw/24V |
|
Brake System |
|
|
Service brake |
Dual circuit compressed air brake |
|
Parking brake |
Spring energy, compressed air |
|
Auxiliary brake |
Engine exhaust brake |
|
Wheels & Tyres |
|
|
Type |
295/80R22.5 |
|
Material |
Tubeless tires |
|
Quantity |
10+1 spare |
|
Kingpin |
90mm |
|
Cabin |
|
|
Type |
HW76 Standard cabin |
Advantages of Howo A7 tractor truck head
1: We guarantee the longest service life at the same price.
2: We have a professional dump truck design and assembly team, we can design and produce various cargo hold structures according to your requirements.
3: We also have unique import and export service advantages, and customs clearance efficiency is higher.
Packing & Shipping
1. RO-RO ship: Fast delivery time, goods safety, and a little high cost
2. Bulk ship: cheaper ocean cost, safety, and time a little slowly.
3. Frame ship: suitable for the two tractor heads, and quick delivery time.
To my consumers:
Thank you for your browsing, welcome to consult us! We will provide you with friendly service and excellent product quality. We will reply to you as soon as possible, from product recommendation to ordering until you receive the Howo A7 tractor head, we will provide you with high-quality service.
