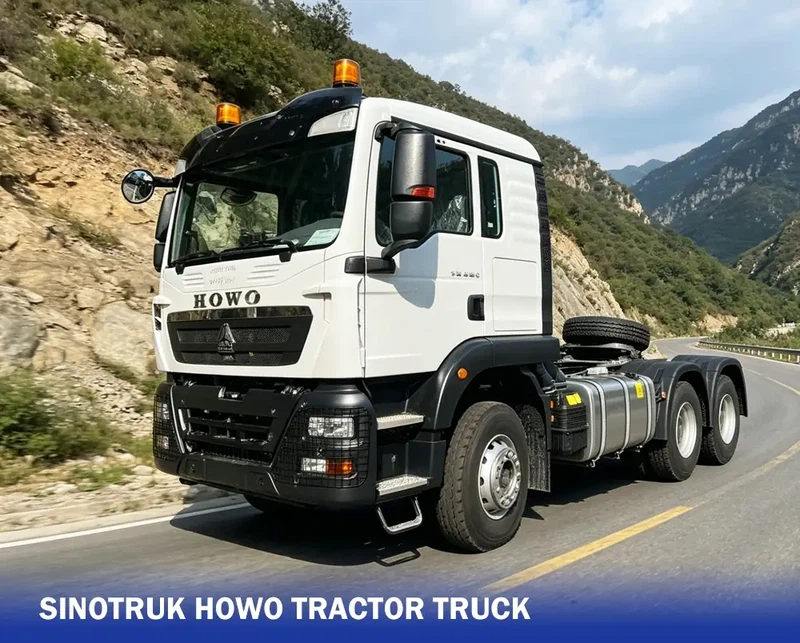

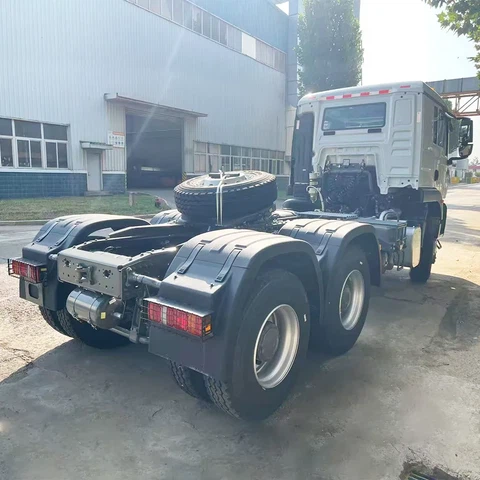

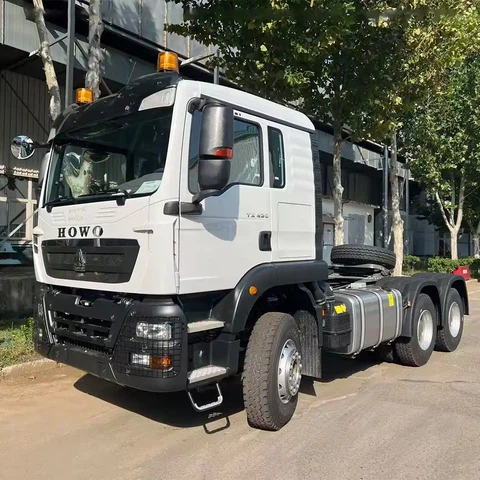

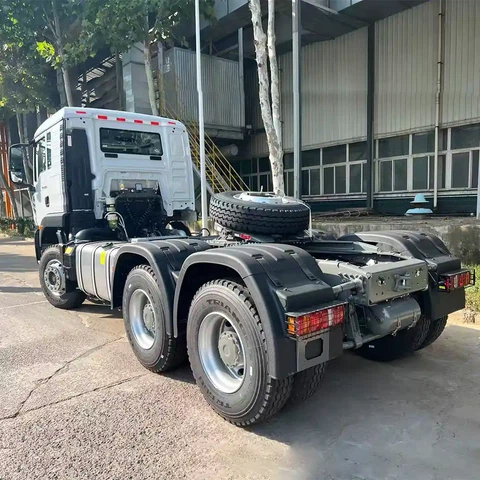

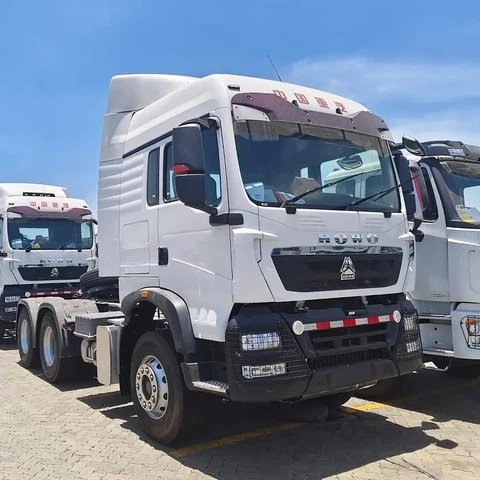

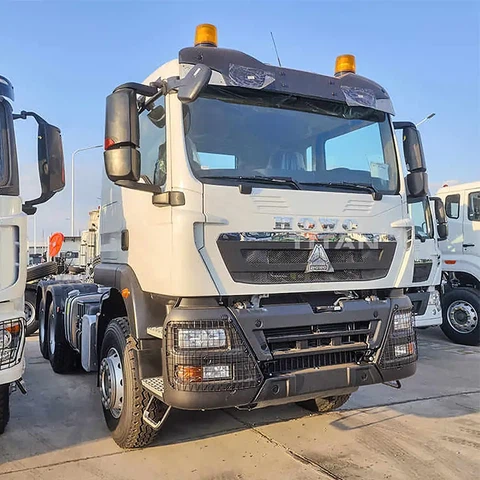

Howo Tractor
Product Details
Howo Tractor
Specification
| VEHICLE SPECIFICATION | DESCRIPTION | |
| Truck Model | ZZ4257N3247 | |
| Type of Vehicle | TRACTOR TRUCK | |
| Truck Brand | SINOTRUK-HOWO | |
| Driving Position | Left hand Driving | |
| Fuel tanker capacity(L) | 400 | |
| The Total Mass | 40,000kg | |
| Dead Weight | 8800 | |
| Max speed(km/h)(km/h) | 102 | |
| Color | Optional | |
| Chassis & Add Components | ||

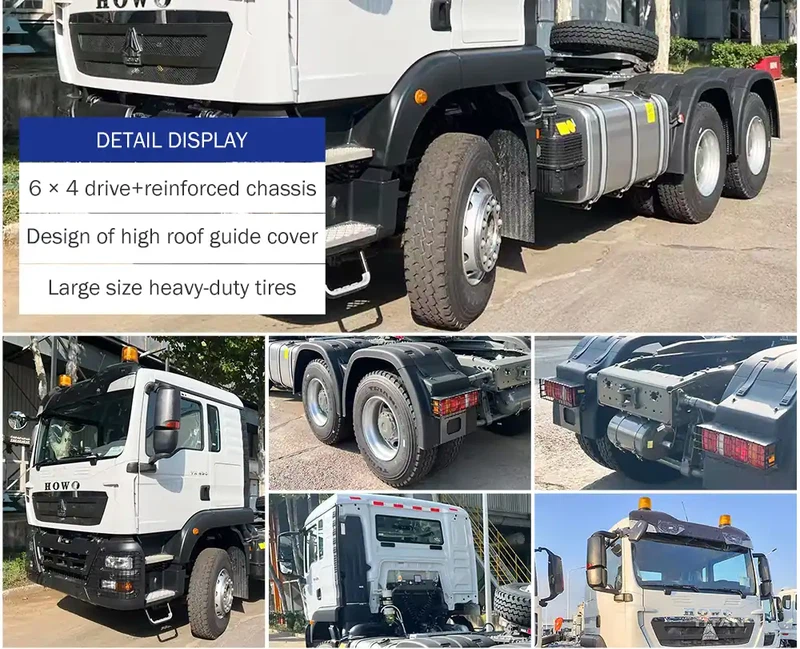

| Frame Details | High-Strength U-profile ladder frame with section of 300*90*8mm and reinforced sudfram, all cold riveted cross members. | |
| Dimension(Lx W xH)(unloaded)(mm) | 6800x2496x3563 | |
| Approaching angle/Departure angle(°) | 16/70 | |
| Overhang(front/rear) (mm) | 1500/725 | |
| Wheel base (mm) | 3225+1350 | |
| Engine | ||
| Model | WD615.47 | |
| Power | 371hp/272kw.2000r/min | |
| Emission | EURO II | |
| Cylinder bore*stroke(mm) | 126*155 | |
| Displacement(L) | 9.876 | |
| Type | water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection | |
| Kind of Fuel | Diesel | |
| Fuel Consumption(L/100km) | 30L/100km | |
| Clutch & Gear Box System | ||
| Clutch | SINOTRUKΦ430mm diaphragm spring clutch | |
| Gear Box | HW19710 | |
| Axles | ||
| Front Axle Model | HF7 axle. Capacity: 7000kg | |
| Rear Axle | HW1279 axle. Capacity:2X 13000kg | |
| Ratio of rear axle | 3.91 /4.875/5.833 | |
| Electrical System | ||
| Battery | 2X12V/165Ah | |
| Alternator | 28V-1500kw | |
| Starter | 7.5Kw/24V | |
| Brake System | ||
| Service brake | Dual circuit compressed air brake | |
| Parking brake | spring energy, compressed air operating on rear wheels | |
| Auxiliary brake | Engine exhaust brake | |
| Steering system | ||
| Model | ZF8098 | |
| Type | hydraulic steering with power assistance | |
| Wheels & Tyres | ||
| Type | 295/80R22.5 | |
| Material | Tubeless tires | |
| Quantity | 10+1 spare | |
| Kin pin | 90mm | |
| Cabin | ||
| Type | HW76 Standard cabin | |
| single sleeper with air conditioner, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | ||
Packaging & Shipping
Packaging:nude or polish with wax.

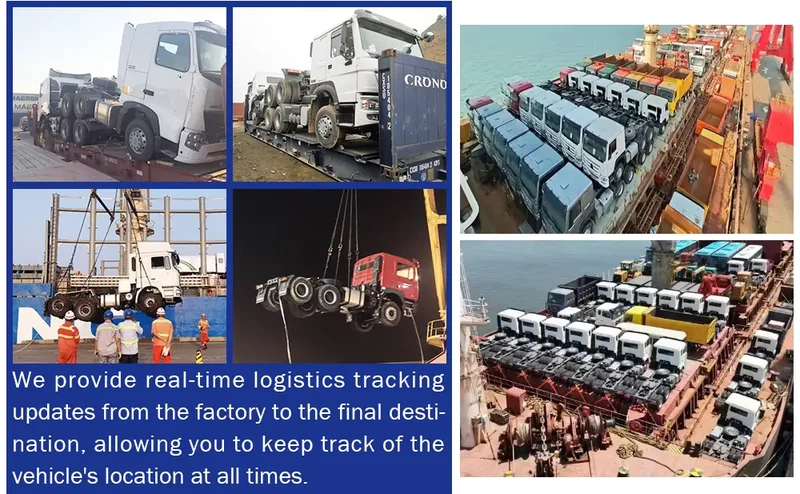

Shipping:Rolling transport or Bulk cargo transportation
Our Service:
1. Quality Inspection
Before truck delivery, we can supply inspection certificate issued by 3rd party, such as BV, Intertek, etc.
2. Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
3. Warranty
One year's free warranty for major 3 components, including Engine, Gearbox, Axles.
4. After Sales Service
Email & Phone call tracking for each truck on timely manners, also possible engineer
maintenace in customer's Country.
