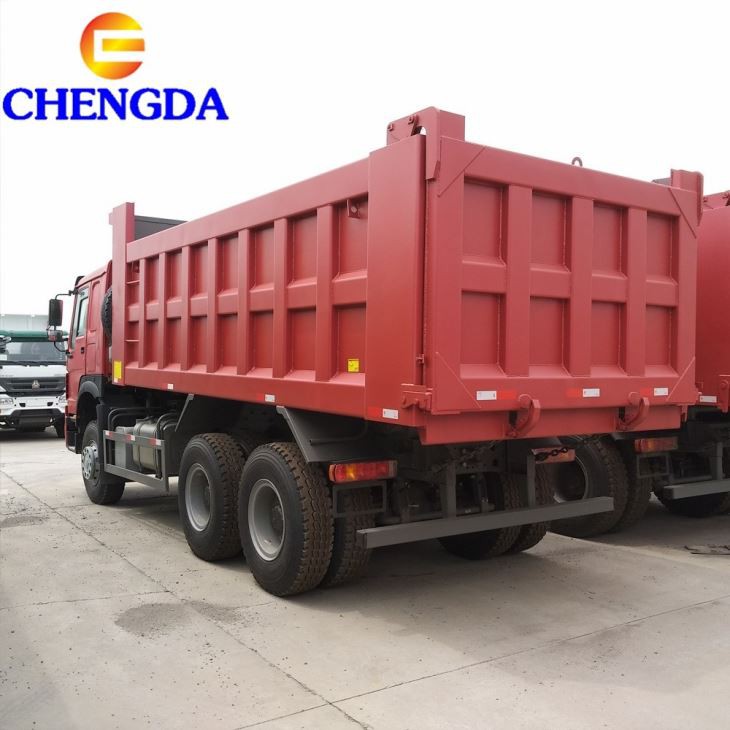

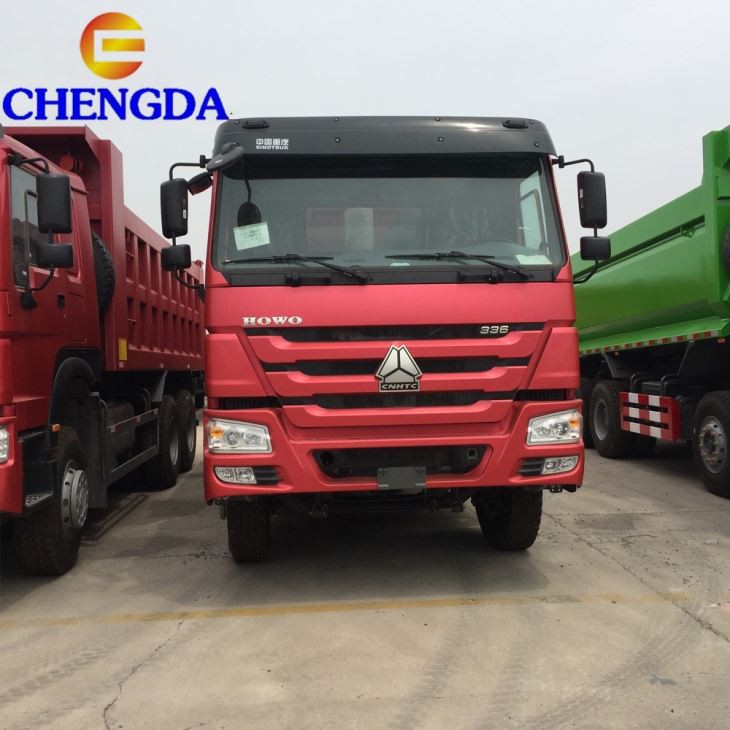

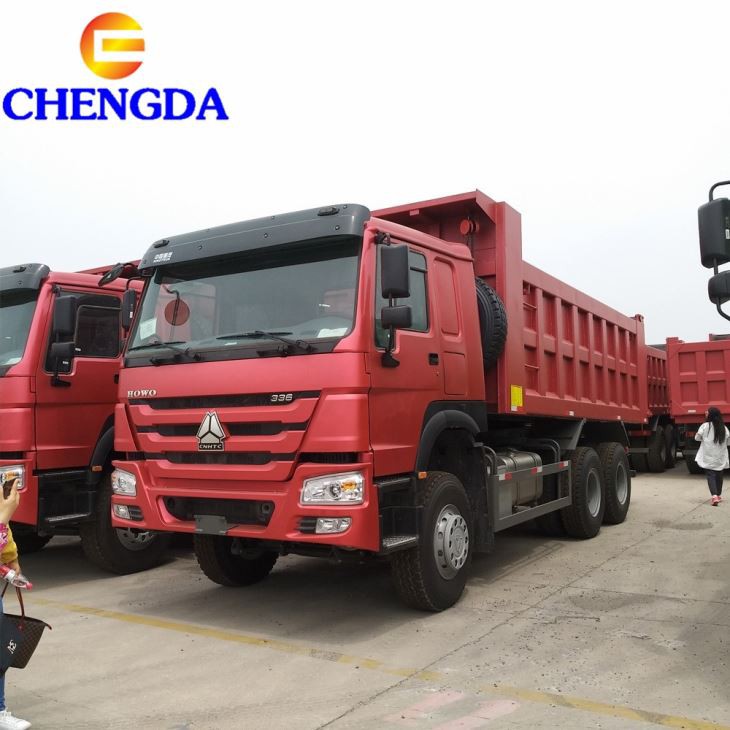

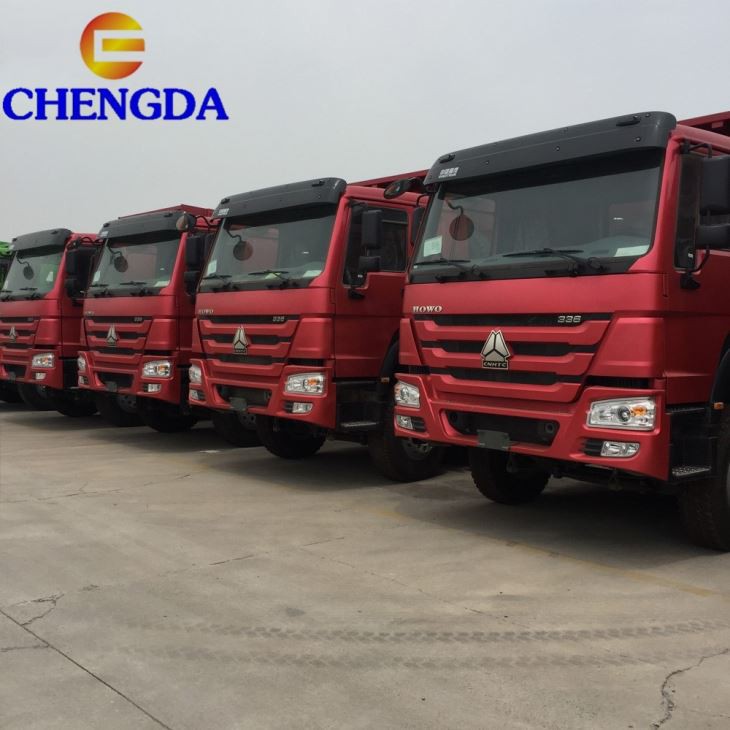

The Used Sinotruck Howo 375hp 6x4 10wheels Dump Truck Second Hand Tipper Truck

Model

ZZ3257N3847C

Gross Weight (Kg)

25000

Curb Weight (Kg)

12420

Engine

Make : Sinotruk

Diesel:4-stroke direct injection diesel engine

Model:WD615.47 371HP Euro II Emission standard, 6 cylinders in line with

water cooling , directly injection

Bore x Stoke :126mmx130mm

Maximum output: 371HP at 2200rmp

Displacement :9.726L

Fuel : Diesel

Cabin

HOWO76 cab, single sleeper with air conditioner

Transmission

Model : HW19710 10 forwards and 2 reverse + HW50 PTO

Steering Gear

ZF8118,German ZF Hydraulic Steering with Power Assistance

Clutch

Single Plate 430 diaphragm Spring Clutch

Number of Axle

3

F ront Axle

HF9

Howo Drum Brake front axle Capacity 90000KGS

Steering with double T-cross section beam

Driving Axle

HC16,

Pressed axle housing, central double reduction with differential locks between axles and wheels

Ratio:5.73

Loading Capacity: 16000 KGS

Front/Rear Track (mm)

2200/1830

Overhang(front/rear) (mm)

1500/1739

Wheel base (mm)

3825+1350

Max speed(km/h)

78

Maximum gradeability (%)

40

Approach/departure Angle

19/26

Minimum turning circle (m)

20

Fuel Tank

300L

Van Dimension

5400x2300x1500 18.6 CBM

Thickness : floor 8MM  / Side 6MM

Ventral Tipper Hydraulic Lifting

Suspension

Steer Axle : Parabolic spring with shock absorber and stabilizer

Drive Axle :Parabolic spring with divided balance shaft and stabilizer

Electric System

Battery   :2X12V/165Ah

Alternator :28V-1500kw

Starter    :7.5Kw/24V

Braking System

Service brake:Dual circuit compressed air brake

Parking brake:spring energy, compressed air operating on rear wheels

Auxiliary brake:Engine exhaust brake

Color

Standard : Red, yellow,Green,White,Blue,Black

Optional :As you like

Overall Dimension

(L xW xH  MM)

8500X2496X3450

Options

ABS, Electrical Tilting Cab
