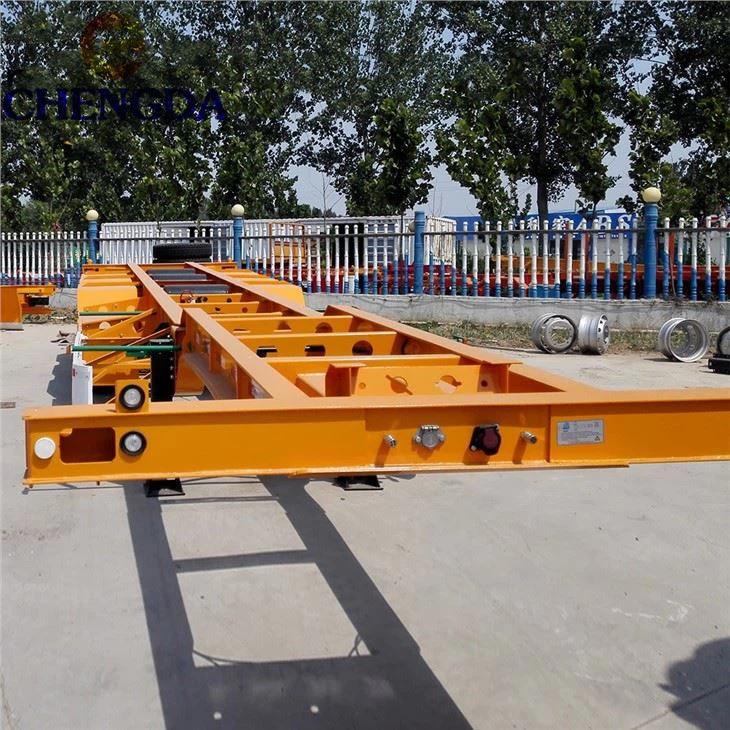

Container Trailer Skeleton
Mob/Whatsapp/Wechat:+86-18253112966
E-mail:cdtruck@sinotrucksale.com
Product Details
The container trailer skeleton is widely used, mainly used for long-distance freight, such as 20 feet or 40 feet containers.
The semi -semi -trailer adopts high-strength international steel. The vehicle is small and small, ensuring its ability to resist deformation, earthquake resistance, and bumps, and satisfy the bearing capacity of different roads.
Parameter of container trailer skeleton
| Gross Weight | About 6.5tons |
| Outer side dimension(mm) | 12450 × 2490 × 1557 |
| Loading Capacity (Ton) | ≤ 45 T (40FT) |
| AXLES | 13 T FUWA Brand, BPW Brand |
| Tire | 12.00R22.5 or 315/80R22.5 China Brand or According to Customer requirement |
| Rim | 9.00-22.5 China Brand |
| Suspension | Mechanical suspension |
| Spring leaf | 90(W)mm*13(Thickness)mm |
| Kingpin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
| Support leg | JOST brand E100 or China brand 28Tons (Double speed) |
| Main Beam | Height: 500mm, the upper plate is 14mm, the middle plate is 8mm, the down plate is 16mm; the Material is Q345B Steel. |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; one piece of 45L air tanks |
| Twist Locks | Twelve pieces (Lifting type or Twist Screw Type) |
| Valve | WABCO valve |
| ABS | Optional |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Toolbox | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | Transport by bulk cargo carrier, RORO, or 40HQ container. |
Our Advantage
1. Factory direct sales.
2. Our products can customize for various needs. And customized unique company logo is available.
3. The factory uses cutting-edge automation equipment. Steel is welded by an automatic arc process. Compared with the traditional manual method, the connection point looks perfect, stronger, and more durable.
4. Covering plate paint is more sustainable, corrosion-resistant, uniform, and smooth, using a sandblast powder coating process.

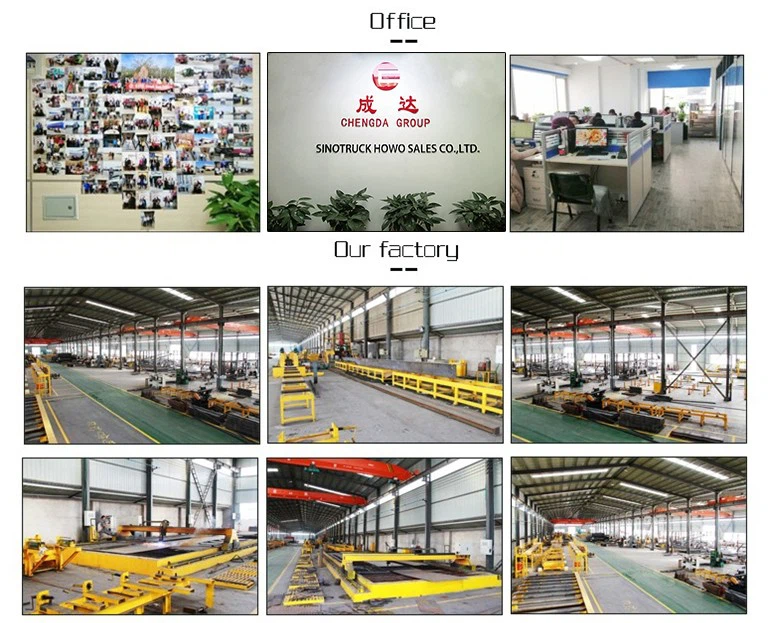

About us
Founded in 2005, Chengda Group specializes in manufacturing various trailers, such as container trailers, construction equipment transport trailers, tractors, trailers, etc., with advanced automation equipment and excellent quality control. With good quality and reputation, we have obtained government-authorized ISO, CCC, CE, and B & V certificates. Our products are very popular in South Asia, the Middle East, Africa, and South America.
FAQ
Q: What is your minimum order?
: A unit.
Q: How can I get your trailer?
A: After you pay, I will transport the trailer to your port.
Q: What are your payment conditions?
A: 100%telegram or letter of credit before delivery.
Q: Can I draw my logo on the trailer?
A: Of course, you can send me your company logo, and then we design it.
