3 Axle Fuel Tanker Semi Trailer
Compartments: 1-9
Volume: 28000-70000 liters
Brand: Chengda
Product name: 3 Axles Fuel Tanker Semi Trailer
Material: Carbon Steel, Aluminum Alloy, Stainless Steel
Product Details

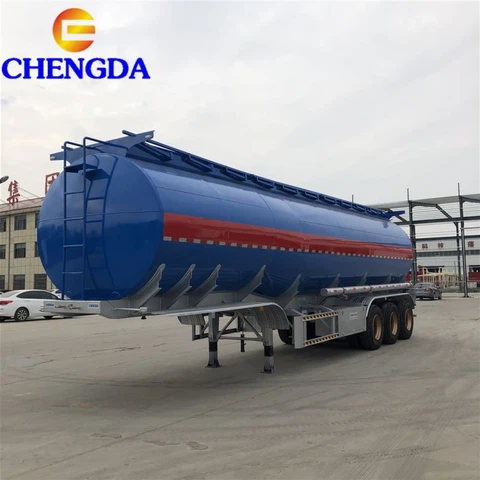

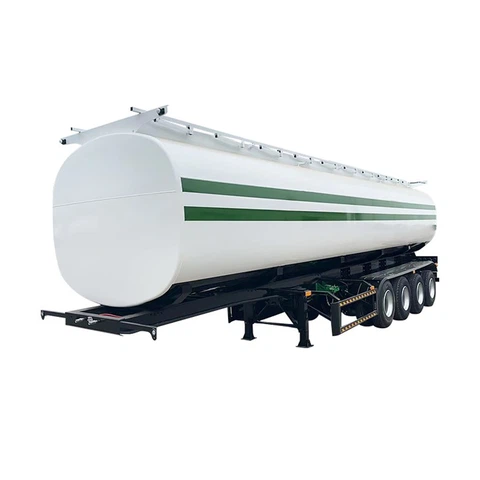

Chengda 3 axle fuel tanker semi trailer is made of Q345B carbon high-strength steel material and welded by automatic submerged arc process. We use parts from world-famous brands, such as JOST, WABCO brake valves, etc.
We can also produce tanker trailers for different liquids such as fuel, gasoline, diesel, crude oil, asphalt, palm oil, water, liquid chemicals, edible oil, etc.
Depending on the material, we have carbon steel/stainless steel/aluminum alloy tanker semi-trailers. Aluminum tanker trailers can transport more oil than carton steel tanker trailers.
We are the manufacturer, and according to the customer's request, we can customize different volumes and compartments. We have a professional trailer design department, rich production experience, and a short delivery time.
Our factory has passed ISO9001 quality system certification, and my country's oil tanker production has occupied a high market share in Africa and Russia. Our cooperation can be ODM or OEM mode.
Main specification
|
Trailer Model |
3 axle fuel tanker semi trailer |
|
Overall Dimension |
12500x2500x3700mm |
|
Function |
transport Fuel, Oil, Diesel |
|
Thickness(mm) |
Tank body: 5083 aluminum alloy |
|
Loading(L) |
60,000 |
|
Axle Brand |
FUWA Brand 13Ton Axle |
|
Axle Number |
Three or Four |
|
Compartment |
2 or 3, it is optional |
|
Manhole cover |
Standard 500mm |
|
Discharge valve |
4" |
|
Emergency valve |
4" |
|
Suspension |
Mechanical suspension |
|
Main beams |
Opting for high tensile steel Q345B welded by automatic submerged-arc processes |
|
The material of the Main beam |
The height of the beam is 500 mm, the upper plate is 14mm, the down plate is 16mm, and the middle plate is 8mm |
|
Tire and quantity |
12R22.5 triangle brand 12 units |
|
Traction Pin |
2' or 3.5' optional |
|
Spare Wheel Bracket |
2 pieces |
|
Tool Box |
1 Standard |
|
Landing Gear |
28ton |
|
Brake system |
Break system: double line air breaks with the spring-loaded parking brake, air parking brake |
|
Brake chamber |
6 relay valve; T30/30+T30 Spring brake chamber; one piece of 45L air tanks |
|
air chamber |
Six big double-air chambers |
|
Bumper |
the heavy-duty bumper at the rear |
|
Loading |
bottom and top loading |
|
Electrical light |
electrical equipment 24 Volt, in accordance with the road traffic regulations electric connection type SAE 7 poles mounted on the front bearer. |
|
Walkway |
for easy access to manholes covers(material is carbon steel) |
|
Access ladder |
one(1) access ladder at front of the tank. |
About us
We are professional in producing 3 axle fuel tanker semi trailers and engaged technicians developing this product for more than 15 years.
FAQ
Q: Does your company have a factory?
A: Yes, we have our factory and have been in this business for nearly 40 years in China. Our factory is very famous and manufactures all kinds of trailers in Shandong, China.
Q: Can you design and produce specially for me?
A: Of course, you can! We have various professional engineers who can design and produce special products according to customer requirements, such as special size, special control, OEM, etc.
Q: Are you looking for an agent?
A: Yes, we are looking for agents all over the world, please get in touch with us for further discussion.
Q: How is your price?
A: Although we are famous brand products, our prices are very favorable and competitive. Customers from all over the world buy our 3 axle fuel tanker semi trailers because of our best prices.
Q: What are your payment terms?
A: We accept T/T, L/C, and other payment methods.
