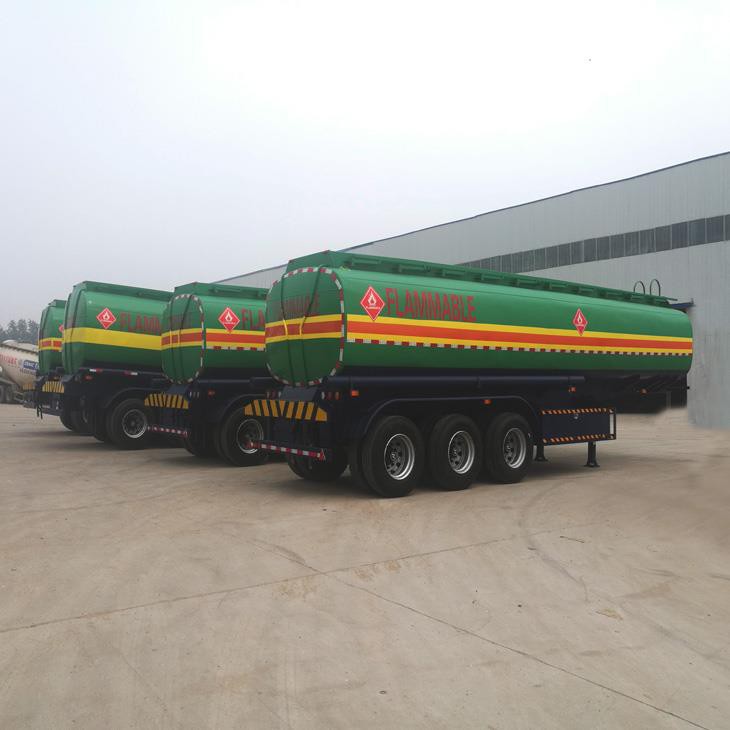

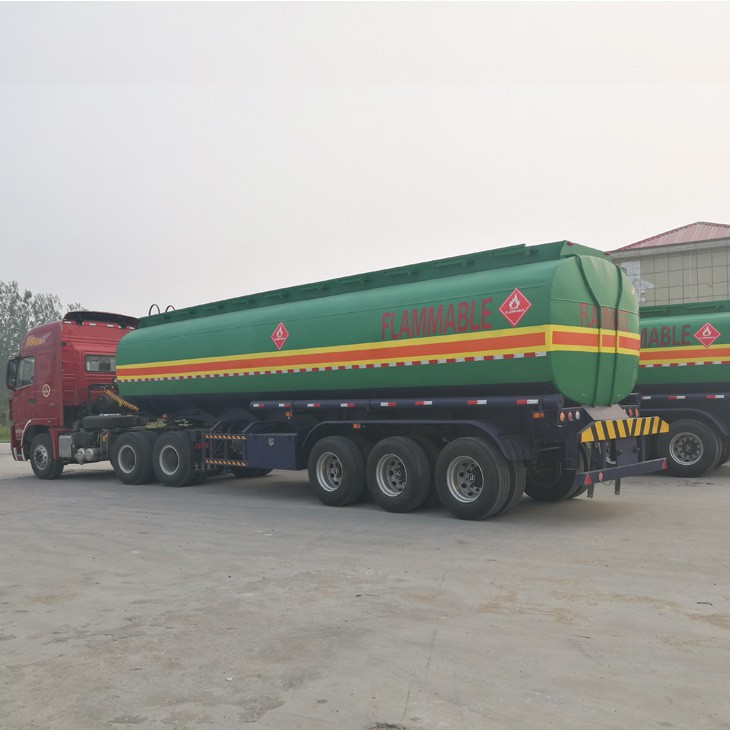

Tri Axles 45000Liters 5 Compartment oil diesel fuel tanker trailer
Product Details
Tri Axles 45000liters 5 Compartment oil diesel fuel tanker trailer
For the Fuel Tanker Trailer,
According to clients' requirements, we can customize different volume and compartment.
The popular oil tanker trailer models include:
3 Axles 60000L Fuel and diesel Tanker Trailer for sale, 3 Axles 45000L Oil Tanker Semi Trailer,
3 Axles 42000L Tanker Trailer , 50CBM Tank Semi Trailer and 40CBM Tank Trailer.
The tanker can be designed as 2 compartment, 3 compartment, 4 compartment etc.
Product Description
SPECIFICATION Of Tri Axles 45000liters 5 Compartment oil diesel fuel tanker trailer
Tri Axles 45000liters 5 Compartment oil diesel fuel tanker trailer | |
Dimension(Lx W xH)(unloaded)(mm) | 11950*2495*3700 |
Tare Weight(KG) | 9000 |
Loading Weight( KG) | 40000 |
Total Weight(KG) | 50000 |
Tank capacity( CBM ) | 45 |
Volume(L) | 45000 |
Medium | Fuel |
specification | |
Tank Material | stainless steel |
Tank thickness(mm) | 6 |
Main beam | The height of the beam is 500 mm, upper plate is16mm,down plate is 18mm, middle plate is 10mm. |
Axle | 3x13ton,L1 brand axle |
Compartment | 3 |
Manholes | 3 |
Spill Discharges | 3 |
Walkway | on the top |
Suspension system | Leaf spring suspension |
Steel Spring | 10/10/10 air bag suspension |
Tire Type and quantity | 1100R20 12units( 1 spare tire) |
Traction Pin | 90mm |
Spare Wheel Bracket | 2 pieces |
Tool Box | 1 Standard |
Landing Gear | Standard 28ton |
Brake system | Dual Line braking system ,none ABS. |
Brake air chamber | Six double chamber |
Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
One set 6-core standard Cable. | |
Painting | Optional |
fuel tanker trailer by roro shipment Detailed Images
Our advantages:
1.we can do the designing according to the customers'requirement
2.we can offer you the best quality & reasionalble price
3.we can offer your a perfect after-sale service
4.we are having strong professinal design team
5. Fast delivery. small order is welcomed.
FAQ
1.Does your company is a factory or trade company?
We have a factory ourself,we are on this business for more than ten years in China.
Our factory is very famous in Shandong Province, China.
2.Whats the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a
procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and
skills are inspected to ensure they consistently achieve the required quality levels.
3. What’s your MOQ?
One unit trailer or truck.
4. How do you transport the semi trailers and trucks?
We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
bulk or container.
5. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
