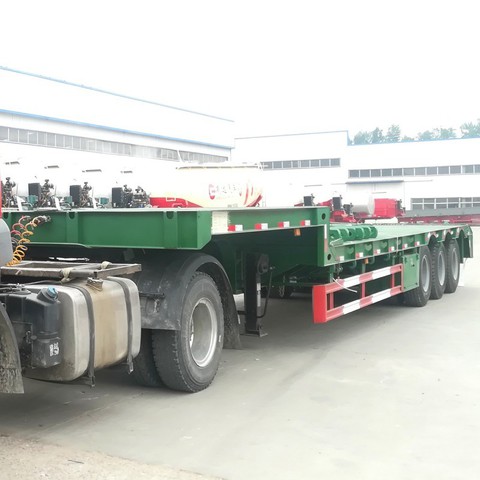

Tri Axle Low Bed Semi Trailer
Product Details
Low bed semi-trailer, also known as low bed trailer, lowboy trailer, low flatbed trailer. Generally used to transport construction machinery and large equipment. Generally speaking, many places are limited, especially on some bridges. It cannot be transported using a flatbed trailer, so people use tri axle low bed semi trailers for transportation.
Details display
Application of tri axle low bed semi trailer
A tri axle low bed trailer has a lower chassis and a stronger structure, making it more suitable for transporting extremely high and heavy loads, such as excavators, bulldozers, large machine tools, special vehicles, and large prefabricated steel structures.
If you want to know more details about low bed semi trailers or are still unsure what type and configuration of semi-trailer you need to transport your goods, please feel free to contact us.
Specifications
| Type | Lowbed Semi Trailer |
| Dimension(L * W * H)(mm) | 13000 * 3000 * 1650 |
| Working Deck(L * W *H)(mm) | 9000 * 3000 * 1350 |
| Main Beam | Q345 carbon steel, the height of the main beam is 500mm, upper plate is 16mm, down plate is 18mm, middle plate is 10mm |
| Platform Plate | 4mm diamond plate |
| Side Beam | 20# Q235 channel steel |
| Axle | 3 * 13 Ton Axle, FUWA/ZY/BWP brand |
| King Pin | 50#/90# |
| Suspension | Common Mechanical Suspension |
| Steel Spring | 90(W)mm * 13(Thick)mm * 10 Layer |
| Tire Type and Quantity | 1100R20 12units |
| Landing Gear | Standard 28 ton single action supporting legs |
| Brake | Dual line pneumatic brake, SAE hose and connector, optional ABS |
| Air Chamber | Six double air chamber |
Packaging and transportation
1. The main mode of transportation for tri axle low bed semi trailers is the bulk carrier or ro-ro ship.
2. It can also be transported in containers. However, the goose back and ladder can be removed, and the departure of the operating board and wheel frame should not exceed 11.8m.
