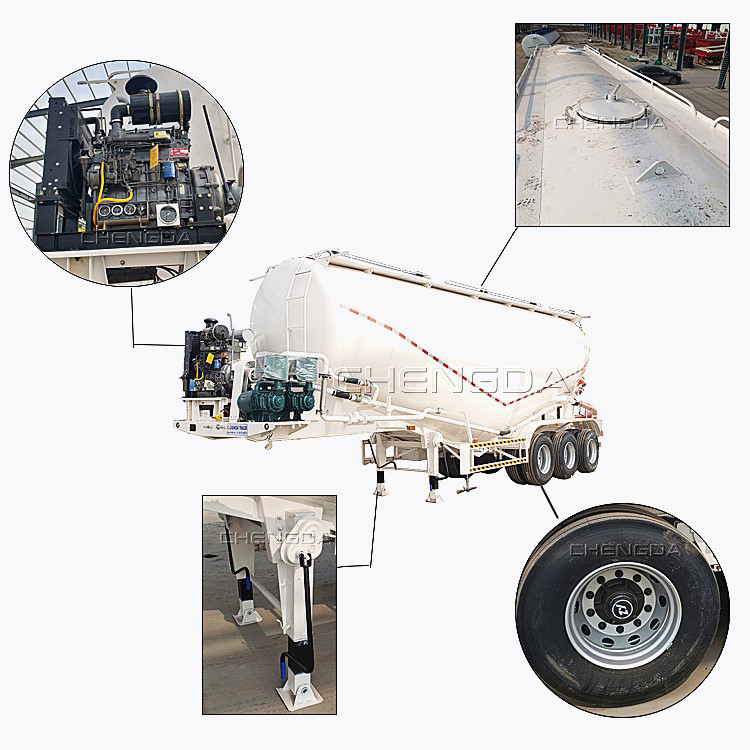

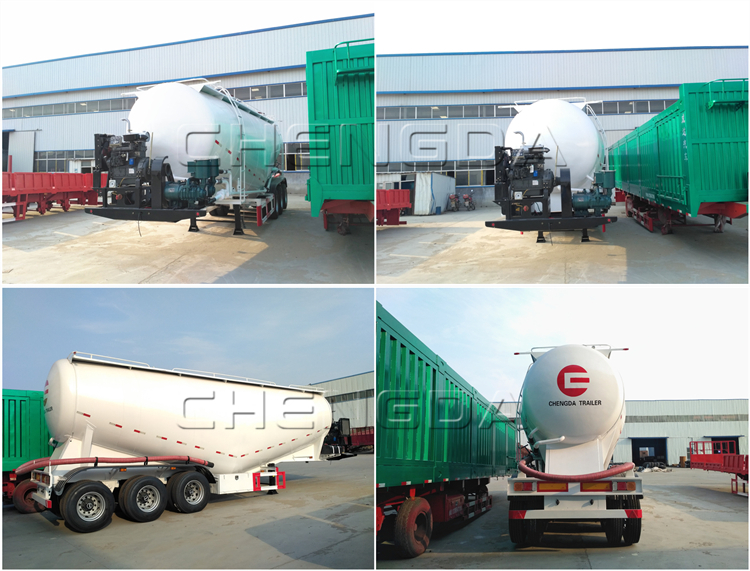

Tri-axle Bulk Cement Tanker Trailert

Overall Dimension

(Lx W x H)(mm)

10700x2500x3950mm

Function

transport bulk powder

Loading Weight( KG)

54000

Thickness(mm)

Tank body: Q235 5mm carbon steel

End plate: Q235 5mm carbon steel

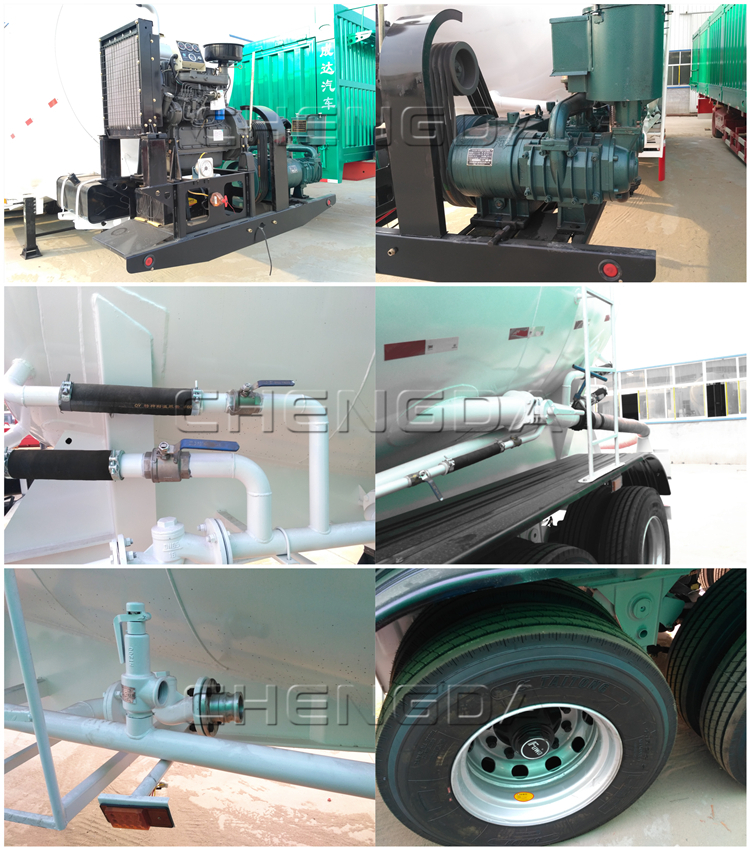

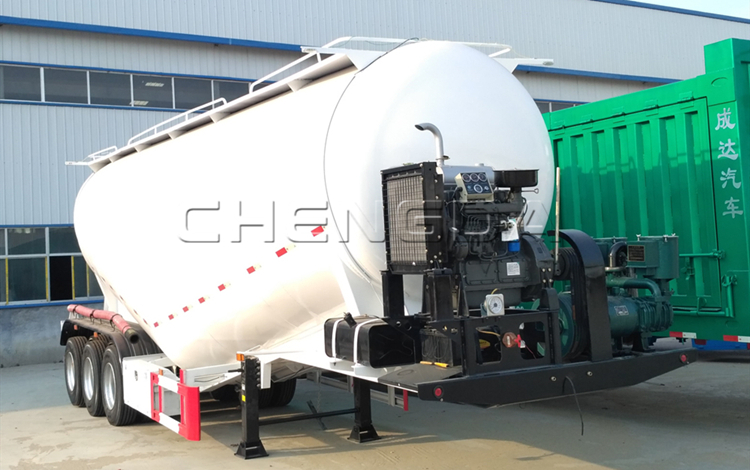

Air compressor

12m3/minute  Bohai brand

Engine

Diesel engine: Weichai Tianhe 4102

Compartment

1 inner fluidized bed: air bag

Axle

3x13Ton, ZY brand

Suspension system

Mechanical leaf spring suspension

Leaf spring

90(W)mm*13(Thick)mm*10 Layer

Manhole cover

500mm manhole cover. 2 sets

Landing Gear

28Ton, double speed,Yahua brand

Tire

12R22.5, Taitong brand 12units

Traction Pin

2” or 3.5” bolts in, changable

Spare Wheel Bracket

2 pieces

Tool Box

1 Standard

Side guard

According to customer’s requirement

Brake system

Dual Line braking system

Emergency valve

WABCO

Brake air chamber

Six big double air chambers

Electrical system

1. Voltage: 24v   2. Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector, side lamp etc.

One set 6-core standard Cable.

Painting

Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish.

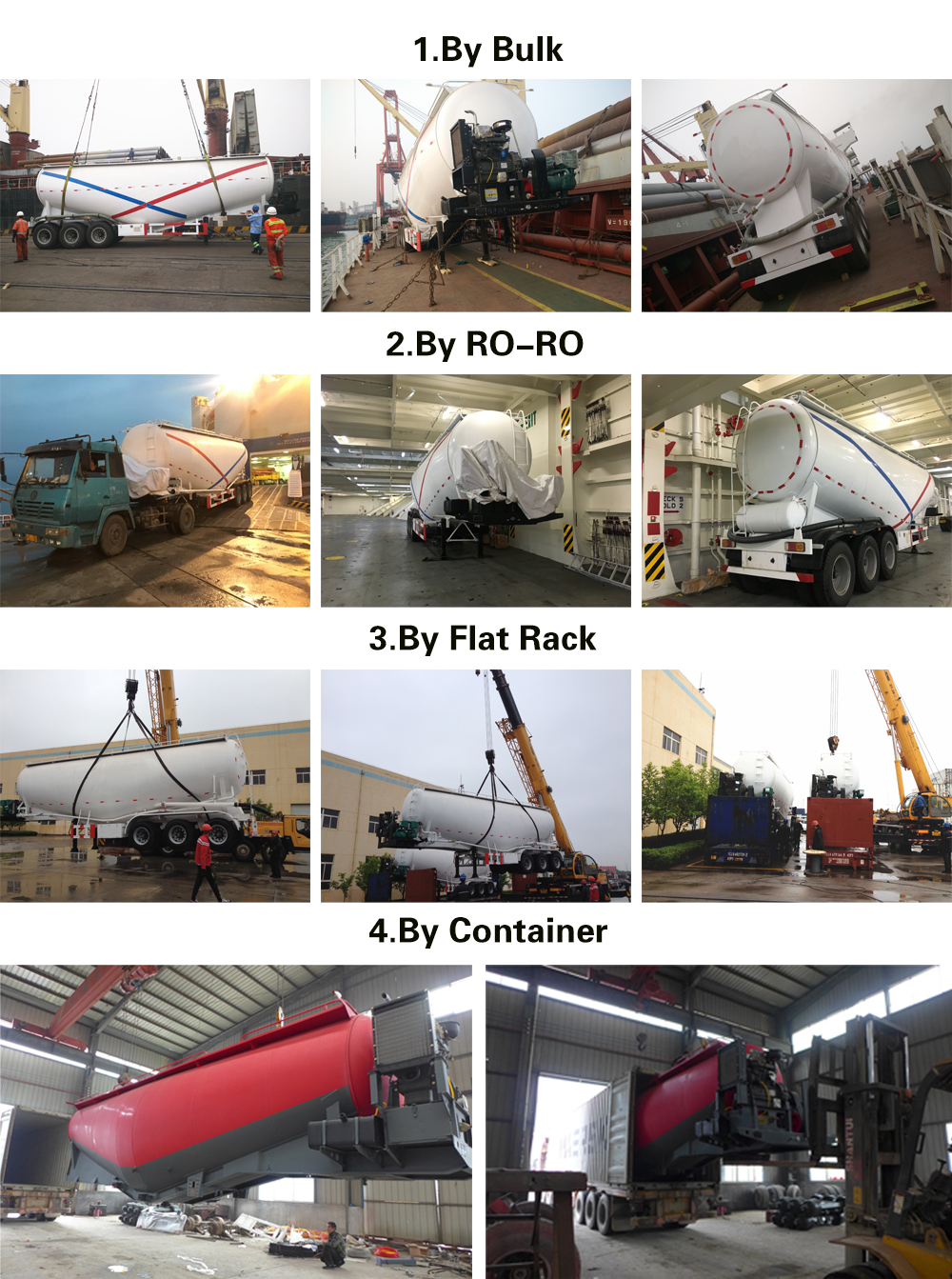

Packing

Polish with wax before shipping
