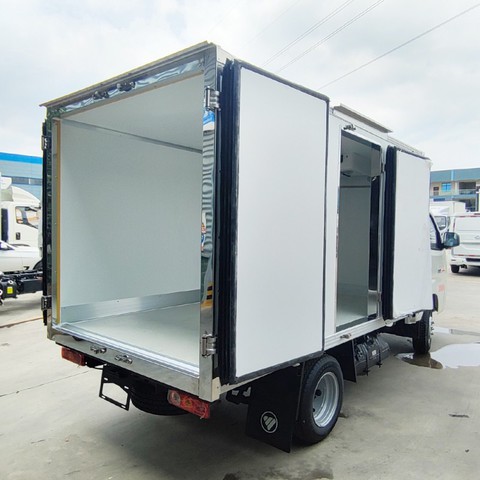

Foton TM Single-row Refrigerated Truck
Driving Style: Left-Hand Driving or Right-hand Driving
Place of Origin: China
Product Details
Foton TM single-row refrigerated truck is a high-load, high-efficiency, low-fuel-consumption van. Food-grade resin can be used to meet the requirements of non-toxic food refrigeration and transportation. It is widely used in the meat products, dairy processing, fruit, vegetable, and seafood transportation industries.

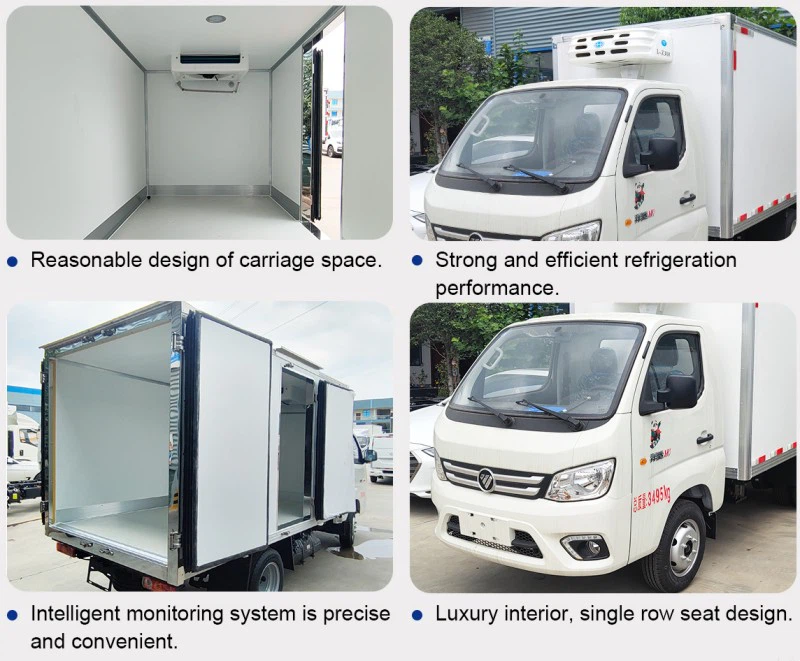

Advantages of the Foton refrigerated truck
Professional chassis design: special chassis for refrigerated trucks, reserved installation space for dual compressor brackets, easy to modify; calibrated special refrigerated truck data to solve the problem of engine stalling at low speed; there are two wheelbases of 2400 and 2750 to choose from, to meet the modification needs of different box lengths.
High-quality chassis + upper body: Xiangling M1-1550 body, beautiful and generous, luxurious interior; the box adopts a bonding structure, with a large contact area, good sealing, good thermal insulation, and high overall structural strength. Good thermal insulation performance: using insulating glass fiber reinforced plastic with low thermal conductivity, the instantaneous high temperature resistance is outstanding, ensuring the safety of the product, an independent refrigeration unit, and the lowest refrigeration temperature can reach -10 degrees.
Safe and reliable: the front wheel adopts timely adjustment of the front and rear wheel braking force according to the load of the whole vehicle to prevent the car from skidding under heavy load; the rear wheel adopts a two-way self-increasing pressure drum brake, and the braking performance is stable and reliable.
Good corrosion resistance: the insulation material can resist dilute acid, dilute alkali, salt, most organic matter, seawater, and humidity, and can resist microorganisms.
Specifications of Foton TM single-row refrigerated truck
| Brand | Foton Xiangling |
| Product name | Xiangling M1: 2750 wheelbase refrigerated truck (rear dual tires) |
| Vehicle announcement | BJ5031XLC5JV4-51 |
| Chassis announcement | BJ1031V5JV4-51 |
| Top brand | Beiqi Foton |
| Body | Xiangling M1-1550 |
| Fuel | / |
| Environmental protection | In place |
| Wheelbase (mm) | 2750 |
| Engine model | DAM15KL (85kw) |
| Gearbox | DAT18R |
| Tire | 175R14 (rear dual tires) |
| Rear axle | BJ121 |
| Frame (mm) | 130×50×4 |
| Number of leaf springs | 44260 |
| Suspension | Non-independent suspension |
| Gross mass (kg) | 3495 |
| Curb mass (kg) | 1750 |
| Rated load (kg) | 1615 |
| Vehicle size (mm) | 4720, 5070×1800, 1780, 1765, 1740, 1720×2455, 2490 |
| Box size (mm) | 2770, 3120×1560, 1580, 1620×1530, 1560 |
Packaging and Transportation
1. Packaging: We provide both bare packaging (no additional covering when the vehicle is transported) and wax packaging (provides an additional layer of protection during transportation to prevent the vehicle from being attacked by wind and rain).
2. Transportation: Small goods can be placed in 20' or 40' containers, and large goods must be transported by bulk carriers or ro-ro ships, or according to your requirements.
Why choose us?
1. Customized service: We can meet specific customer needs by providing tailor-made solutions, including providing technical drawings and customized products.
2. Best solution: Our team is committed to ensuring the best results for our customers and guaranteeing that the quality of our products meets your expectations.
3. Final inspection: Before shipment, we will conduct a thorough final inspection to ensure that all Foton TM single-row refrigerated trucks meet our quality standards and your requirements.
