3 Axle 4 Axle 35/40 CBM Tipper Trailer 60 Tons Dump Semi Trailer Dumper For Sale

3 axle 40m3 rear dump trailer Product Description Packaging & Shipping Company Information Sales Manager : Fenny Liu Chengda Trailer Manufacturing Co.,Ltd SINOTRUCK HOWO SALES CO.,LTD Sales Manager : Fenny Liu E-mail : fenny@ scdtrailer.com Whatsapp/phone : 0086-17853115859

Product Details

3 axle 40m3 rear dump trailer

Product Description

Detail specification



Model

3 axle 40m3 dump trailer



Function

Transport sand, stone, gravel

Dimension



Overall Size (L×W×H)mm

9800×2550×3860mm



Inner Size (L×W×H)mm

8500×2330×2000mm



Wheel base

6870+1310+1310mm

weight



Payload

68,000kg



Tare weight

Approx12,000kg



G.V.W.R.

Approx 80,000kg

Body details



Main beam

Material Q345 carbon steel, upper plate 18mm, down plate 18mm, middle plate 8+8mm.



Body thickness

6mm



Bottom thickness

8mm



Hydraulic System

Full set of HYVA Hydraulic System 202

Frame



Axle

heavy duty, 3×13Ton capacity, FUWA brand



Suspension

Leaf spring suspension, 90mm×16mm×10pcs



Tire

12R22.5 12units Chengda Brand



Kingpin

50mm/90mm removable



Landing gear

Yahua brand, 28ton, double speed, heavy duty



Tool box

1pcs



Spare wheel carrier

2pcs

Electrical system



Voltage

24Volt



Receptacle

7 way socket SAE standard,China



Front marker lamp

white



Side marker lamp

white&red



Rear lamp

red



Turn signal lamp

Amber



Wiring

Electric cable protected by PVC conduit on main frame

Brake system



Brake

Dual line pneumatic brake,SAE hose and connector,no ABS



Brake air chamber

Six big chamber



Painting

Shot blast at Standard SA 2.5 prior to application of primer,polyurethane top coat.Total DFT not less than 100um



Color

As customer requirement



.jpg

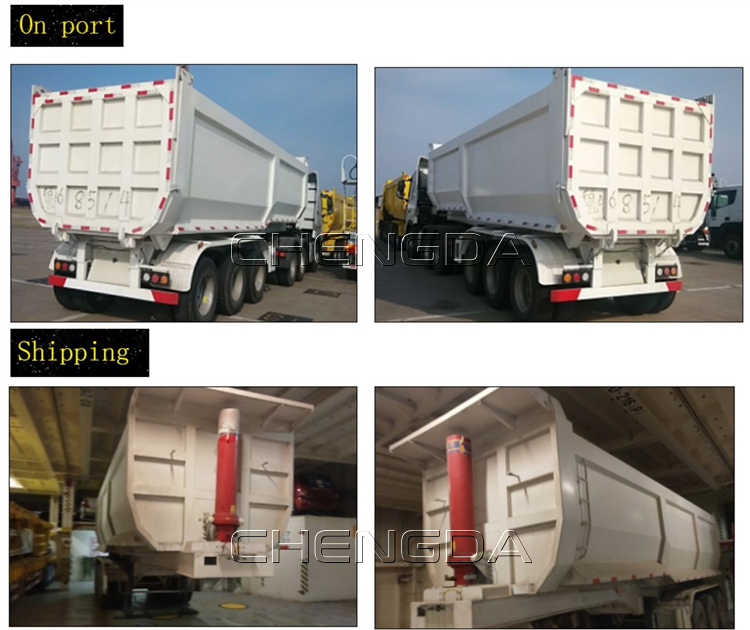

Packaging & Shipping
