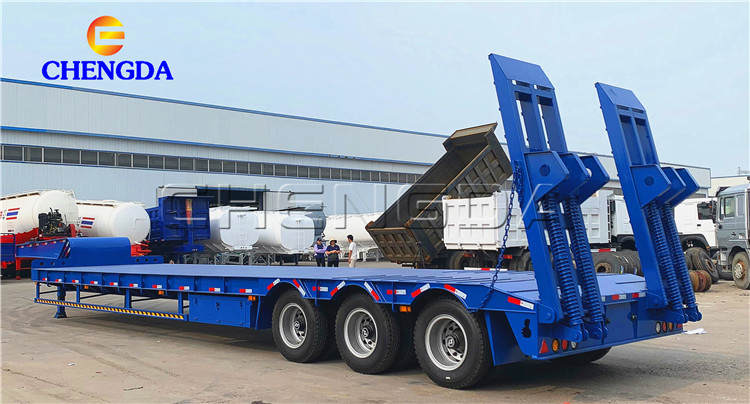

3 Axle 60ton Lowbed Lowboy Semi Trailer Low Bed Truck Trailer

Overall Dimension(mm)

13000x3000x1650mm

Working Deck Dimension(mm)

9000x3000x1350mm

Platform thickness(mm)

4mm

Main Beam

“H”main beam design,Q345B carbon steel,

the height of the beam is 500 mm,

upper plate is 16mm,down plate is 18mm, middle plate is 10 mm.

Wheelbase

7,650mm+1,310mm+1,310mm

Payload

60,000kg

Tare weight

9,000kg

G.V.W.R.

69,000kg

Function

To transport bulk goods or heavy equipment like loader or excavator

Running System

Axle

13Ton, ZY brand optional FUWA brand,

one hundred fifty thousand Kilometers no need maintenance

Axle Number

Three

Tire

1100R20, 12 pcs  Taitong brand

Rim

8.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs

Suspension system

Common Mechanical Suspension

Steel Spring

10/10/10 leaf spring with 90mm(W) *13mm(thickness)

Electrical System

Chinese standard 24V lighting system

Brake system:

Dual line pneumatic brake, SAE hose and connector,optional ABS

Brake air chamber

6 units T30/30 spring brake chambers

Emergency relay valve

Wabco relay valve

Traction/King Pin

2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster

Landing Gear

Accessories:

Tool box

1pcs, One crank and one shaft head wrench

Ramp

Heavy duty trailer ramp

Spare wheel carriers

2 pcs

bumper

Rear bumper

Electrical system

1. Voltage: 24v   2. Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector, side lamp etc.

One set 6-core electric cable protected by PVC conduit on main frame

Paint

Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish.Waxed
