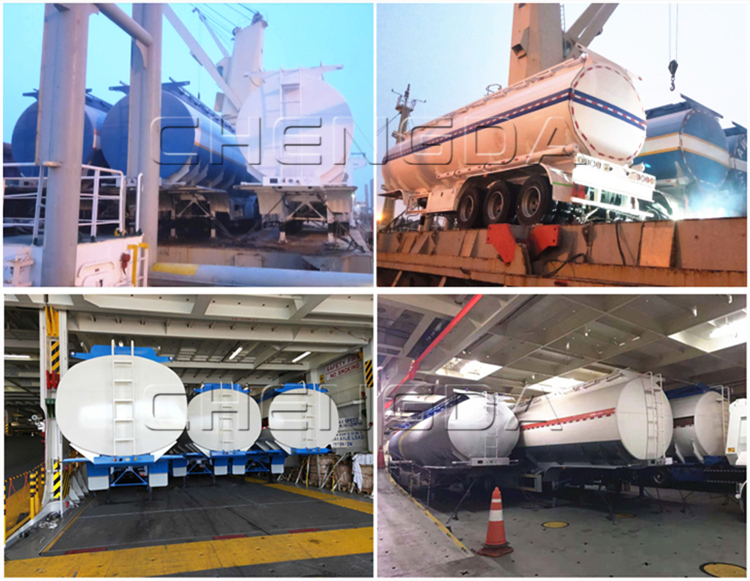

42cubic Meter Fuel Tank Trailer Export To Malawi

42cubic meter fuel tank trailer export to Malawi

Product Details

42cubic meter fuel tank trailer export to Malawi

Overall Dimensionmm

11500x2500x3900mm

Wheelbase

7,500mm+1,310mm+1,310mm

Payload

40,000kg

Tare weight

10,000kg

G.V.W.R.

50,000kg

Function

transport Fuel, Oil, Diesel

Tank

Volume

42000L

Thickness(mm)

Material Q235 carbon steel

Tank body and separate compartment plate:  5mm

Dish end plate:  6mm

Welding standard

All welding are to be done by qualified welder per applicable national standard

Compartment

3 compartments ( 3*14000L )

Manhole cover

3 units Safety manhole with breath valve, Aluminum, diameter 500mm.

Discharge valve

3units  3” API valve with dust cover, aluminum Henghe Brand

Bottom valve

3 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand

Discharge pipe

3seamless steel tube, 6m

Tanker body test

Hydrostatic test to 5 psi (35 Kpa) on each compartment

Running System

Axle

14Ton, L1 brand optional FUWA brand3Axlesone hundred fifty thousand Kilometers no need maintenance

Axle Number

Three

Tire

12R22.5, 12 pcs. Taitong brand

Rim

9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs

Suspension system

Mechanical Suspension

Steel Spring

10/10/10 leaf spring with 90mm(W) *13mm(thickness)

Electrical System

Chinese standard 24V lighting system

Brake system:

Dual line pneumatic brake, SAE hose and connector,no ABS

Brake air chamber

6 units T30/30 spring brake chambers

Emergency relay valve

Wabco relay valve

Tire Type and quantity

1200R22.5   12units

Traction/King Pin

2and 3.5removable Kingpin, bolted in type 500mm from the front face of the front bolster

Landing Gear

Zhenhua brand 28ton external two speed telescopic manual operation

2,500mm behind the kingpin location
