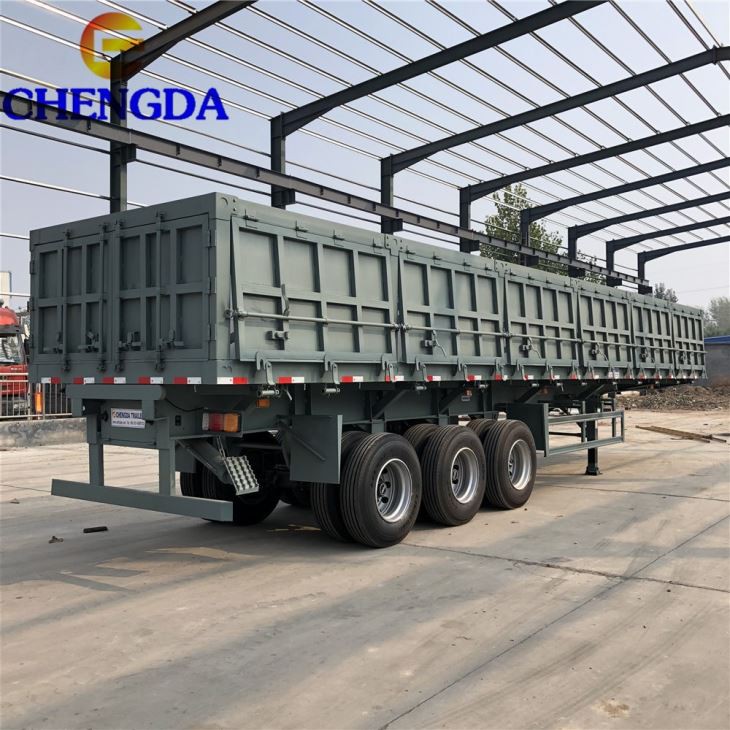

60ton 40m3 Side Tipper Trailer

3 axles 4 axles optional Transport sand, coal, bricks,etc 30-100ton loading capacity 20-80CBM large capacity

Product Details

60ton 40m3 side tipper trailer

Overall Dimension(L x W x H)(mm)
11000*2500*3700mm
Axle Brand
FUWA13TON Axle
Inner Dimension(L x W x H)(mm)
11000x2400x1500mm
Suspension system
Leaf spring suspension
Carrier Volume(m³)
40m³
Steel Spring
10/10/10 Heavy duty leaf spring suspension
Thickness
Bottom: 6mm, Side: 4mm
Tire Type and quantity
12R22.5 12units
Lifting Type
HYVA lifting
Traction Pin
50mm or 90mm
Lifting System
Five ø125lifting cylinders,
one piece of ø140 displacement cylinder
Frame Beam
Main frame is height 400/500mm, Upper plate is 16mm,lowerplate is18mm,
middle is8+6mm
Tare Weight(KG)
7500-8000kg
Spare Wheel Bracket
2 pieces
Loading Weight( KG)
40000
Tool Box
1 Unit
