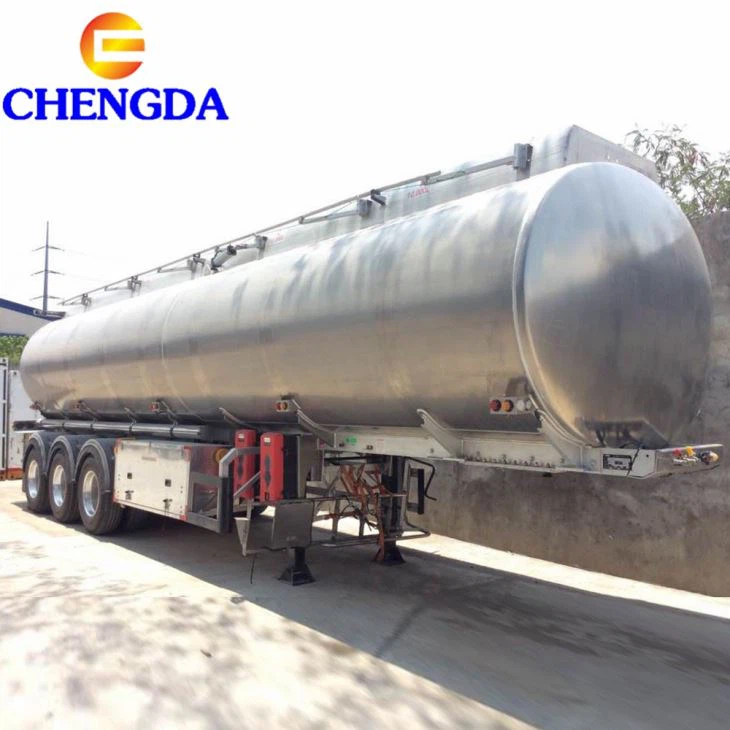

Aluminum Alloy Fuel Tank Semi Trailer

aluminum alloy fuel tank semi trailer Polished Mirror 2-8 compartments

Product Details

aluminum alloy fuel tank semi trailer

Dimension and Weight

Overall Dimension(mm)11500x2500x3900mm
Wheelbase7,500mm+1,310mm+1,310mm
Payload40,000kg
Tare weight10,000kg
G.V.W.R.50,000kg
Function transport Fuel, Oil, Diesel
Tank
Volume 42000L
Thickness(mm)

Material Q235 carbon steel

Tank body and separate compartment plate 5mm

Dish end plate 6mm

Welding standardAll welding are to be done by qualified welder per applicable national standard
Compartment 3 compartments 3*14000L )
Manhole cover3 units Safety manhole with breath valve, Aluminum, diameter 500mm.
Discharge valve3units  3
Bottom valve3 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand
Discharge pipeseamless steel tube, 6m
Tanker body testHydrostatic test to 5 psi (35 Kpa) on each compartment
