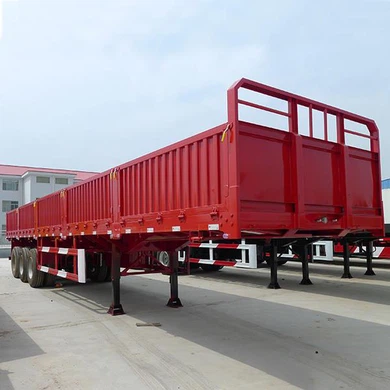

Tri-axles 60tons Side Curtain Wall High Bed Cargo Semi Trailer
Product Details
tri-axles 60tons side curtain wall high bed cargo semi trailer
Product Description
tri-axles 60tons side curtain wall high bed cargo semi trailer also called side wall trailer, side curtain trailer, semi trailers, high bed trailer
3 axles 60ton side curtain cargo trailer | |
Overall Dimensions (L*W*H) | 13000x2500x3600mm |
Loading dimension | 12600x2500x1800mm |
Loading capacity | 60000 |
Side wall and side curtain | Side wall height: 600mm with 3 pcs of movable column |
Rear Wall | Height: 1800mm, thickness: 1.5mm Open the door, from the middle to two sides |
Main Beam | The height of the beam is 500 mm, upper plate is16mm, down plate is 18mm, middle plate is 10 mm. |
Axle | 3 x 13Ton, Zhengyang brand |
King pin | 2" (50#) and 3.5" (90#) |
Support legs | 28Ton (Heavy duty landing legs) |
Tire | 12R22.5, 12pcs |
Platform plate | 3mm (metal deck) |
Details pictures
Packaging & Shipping
Main shipping way by Bulk Ship or RO-RO Ship:
2. It can be shipped by Container. But the tail has to cut before shipping. It can be assembled by welding and bolts easy.
Certifications
Our factory has BV, WMI, CCC, ISO9001 certifications.
The certifications pcs is attached as followings.
Our Equipment
Equipment for side curtain wall high bed cargo semi trailer
