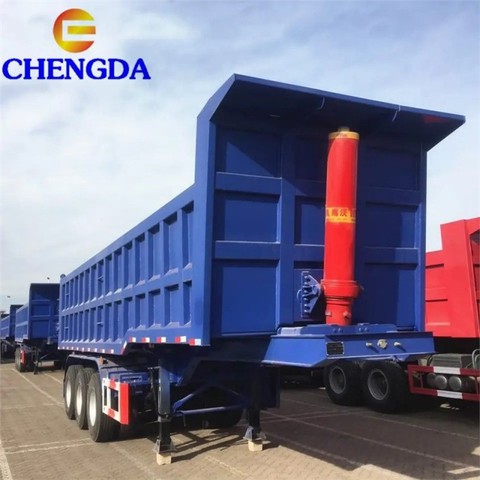

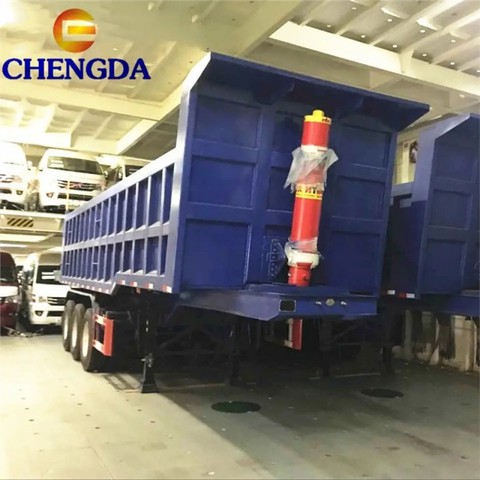

3 Axle End Dump Trailer
Mob/Whatsapp/Wechat:+86-18253112966
E-mail:cdtruck@sinotrucksale.com
Product Details
The 3 axle end dump trailer is the front end of the trailer that attaches to the rear end of the tractor. A portion of the trailer's total weight is borne by the tractor. It is not powered by itself, it is carried with the head of the truck, and the end dump trailer for sale is driven by the tractor.
3 axle end dump trailer is one of our main products. The frame design is reasonable and the technology is advanced. The box body is made of a high-strength cold-rolled corrugated steel plate without a skeleton structure. The box body has various heights and a large loading space. Multi-cylinder lift with self-rescue fuel tank, multi-pulse, heavy load, etc. You can choose the left and suitable single unloading, the left and proper unloading methods are different, the operation is convenient, and the diversified and individual needs of users can be effectively met.
We can design and manufacture ordinary and U-shaped three-axle dump trailers according to customers' needs. We sold many dump truck trailers to many African countries, 3 axle dump truck trailers are very popular in African countries. We can produce more than 300 sets of dump trailers every month.
Specification of 3 axle dump trailer
| Brand | Chengda |
| Application | Coal/Mine/Stand/Stone Loading |
| Dump Style | Rear Dump |
| Loading Capacity | 30T-100T |
| Axle | 2/3/4*13/16T VEHICLE MASTER/FUWA/BPW |
| Length | 11000mm |
| Width | 2500mm |
| Height | 2800mm |
| Cylinder | HYVA (model is according to the length of cargo box) |
| Floor Plate Thickness | 5mm |
| Cargo Thickness | 4mm |
| Cargo Style | Rectanglular/Round |
| Front Axle Lifting | Available |
| Main Beam | Material Q345/T700 |
| Height: 500mm | |
| Upper Plate: 14mm | |
| Middle Plate: 8mm | |
| Lower Plate: 16mm | |
| Tire | 11.00R20/12R222.5*8/12/16 pieces Linglong/Triangle/Double-Coin/Bridgestone |
| Rim | 8.0/9.0*8/12/16 pieces, steel/aluminum |
| Suspension | Mechanical/Airbag |
| Leaf Spring | 90mm*13/16mm*10 pieces |
| Landing Gear | 28T two-speed, JOST |
| King Pin | #50(2")/#90(3.5"), JOST/Other Brand |
| Tool Box | Steel/aluminum |
Application
The 3 axle dump trailer is mainly used to transport bulk, bulk cargo such as coal, ore, and construction materials. It is convenient to unload materials with a low residual rate. Our 3-axle dump trailer is the best choice for customers to dump.
Packaging and Shipping
In order to prevent the paint of the dump truck semi-trailer from being corroded by seawater, spray a layer of wax on the surface of the dump trailer before shipment, and then seal it with a waterproof rain cloth, the shipping method can be selected according to your needs.
Our Service
1. Save your budget: Manufacturer direct sales, no middle man.
2. Quick response: You can contact us directly, most problems can be solved within 12 hours.
3. Delivery guarantee: 25-40 days after receiving the deposit.
4. Production tracking: We will take the initiative to inform you of the progress every week to ensure you understand the production situation.
5. Inspection: Inspection report to you before delivery.
6. After-sales service: after-sales guarantee service to protect your order.
