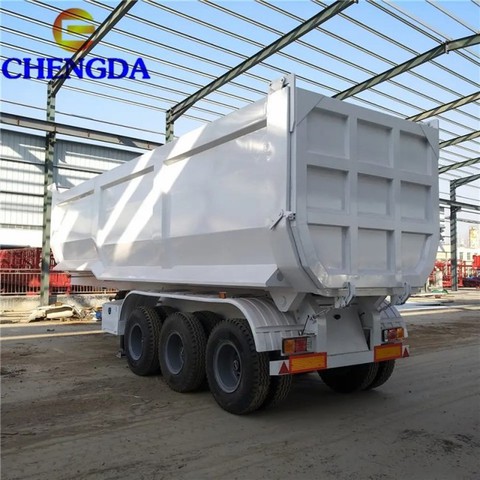

3 Axle Semi End Dump Trailer
Mob/Whatsapp/Wechat:+86-18253112966
E-mail:cdtruck@sinotrucksale.com
Product Details
Chengda Group is a well-known semi-trailer manufacturer in China, committed to providing high-quality, high-performance semi-trailer products to global customers. We tailor various types of semi-trailers for customers, including flatbed semi trailers, low-bed semi-trailers, self-unloading semi-trailers, oil tank semi-trailers, etc. Today we will introduce a classic product in our semi-trailer product line--3 axle semi end dump trailer.
The 3 axle semi end dump trailer is made of high-quality steel, with a strong structure and strong durability. It is mainly suitable for large-scale projects, mines, building construction, and site cleaning, and can be used to transport various ores, soil, sand, construction waste, and other bulk items.
Specification
| Trailer Name | 3 Axle Dump Trailer |
| Dimensions | 10900mm*2500mm*3600mm |
| Loading | 30T, 40T, 45T, 50T, 60T, 24m3,25m3,30m3,40m3,45m3 |
| Tire | 12R22.5, 11.00R20, 12.00R20, 315/80R22.5 |
| Material | Main beams Q345B, upper flange:14mm, middle:10mm, down:16mm |
| Axles | 13T/16T/20T BPW or FUWA or EAST |
| King Pin | 2” or 3.5” |
| Brake System | WABCO Valve with big chamber |
| LandingGears | 28ton ,double speeds |
| Suspension | spring suspension or Air suspension |
| ElectricalSystem | 24v, 7core socket, lights according to European standards (suitable for all market) |
| Floor | 8mm plate, side wall 6mm |
| Other parts | 1 tool boxs, 1 spare tire carrier |
| Functions | Transport sand,earth work, stone,etc |
Advantages of 3 axle semi end dump trailer
1. Structural stability
The vehicle adopts a reinforced frame structure, which has a good bearing capacity and can ensure the stability and safety of the vehicle when driving. At the same time, the vehicle is equipped with a flash-type main beam, which can withstand greater impact and torque, prolonging the service life of the vehicle.
2. Self-unloading function
The 3 axle dump trailer is equipped with an efficient self-unloading function, which can unload goods quickly and improve transportation efficiency. At the same time, the hydraulic control system is used to control the lifting of the bucket, making unloading more convenient and faster.
3. Easy maintenance
Our company adopts advanced manufacturing processes and technology, which can guarantee vehicle assembly precision and manufacturing quality. At the same time, the maintenance of this semi-trailer is also very convenient, which reduces the cost and time cost of customers.
4. High security
The 3 axle dump trailer is equipped with multiple safety devices such as a driving recorder, rollover alarm, airbag, brake booster system, etc., which can guarantee the safety of drivers and transported goods.
5. Green environmental protection
Our company actively responds to the national green environmental protection policy and has launched a series of environmentally friendly vehicles, and the 3 axle dump trailer is no exception. Adopting modular design, it can meet European emission standards and domestic environmental protection requirements, and contribute to the construction of a green and sustainable social development for customers.
Through the introduction of the above advantages, we can see that Chengda Group's 3 axle semi end dump trailer has a very high comprehensive cost performance and is an ideal product for customers to choose with confidence. Our company will continue to innovate and provide customers with more abundant and comprehensive semi-trailer products and services. Welcome customers to visit and consult.
