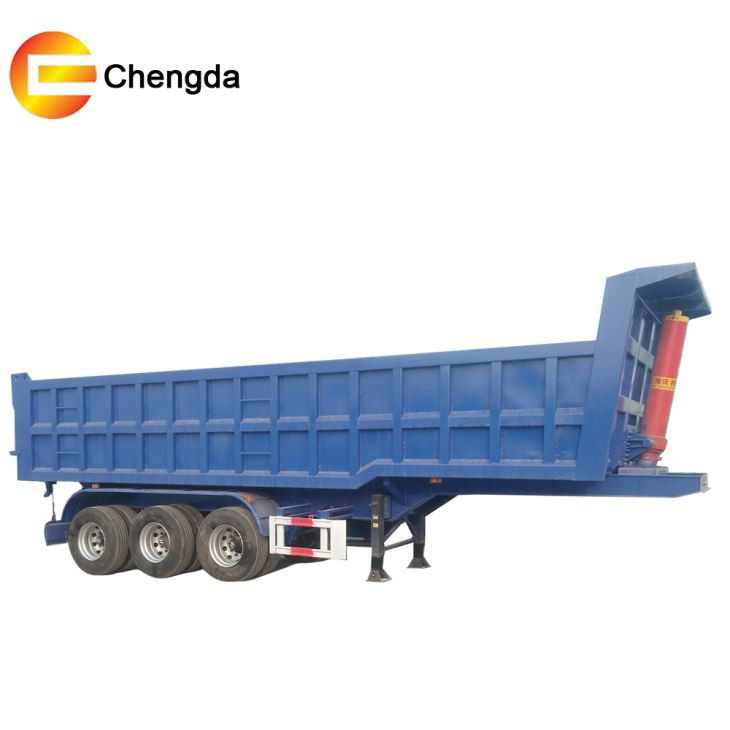

3 Axles Hydraulic Front Lifting 40 Cubic Meter Tipper Trailer

Type

U shape end dump trailer

Overall dimension

9 x 2.5 x 3.7 m

Inner dimensions

8.5 x 2.3 x1.8m (35.13m3)

Tank thickness

Bottom 10mm, side 8mm

Hydraulic cylinder

Full set of HYVA Hydraulic System 196 x 180, 4 stages Hydraulic Cylinder

Main beam

Carbon steel Q345B, 500mm height, upper plate 18mm, middle plate 8+6mm, down plate 18mm

Side beam

16Mn with 8mm Thickness

Axle

Fuwa, BPW, York, L1, Zhenghua

Tyre

12R22.5, 385/65R22.5, 315/85R22.5, 1100R20

Landing gear

28 ton

Suspension

Mechanical or air-bag suspension with lift

Color

As your requirement
