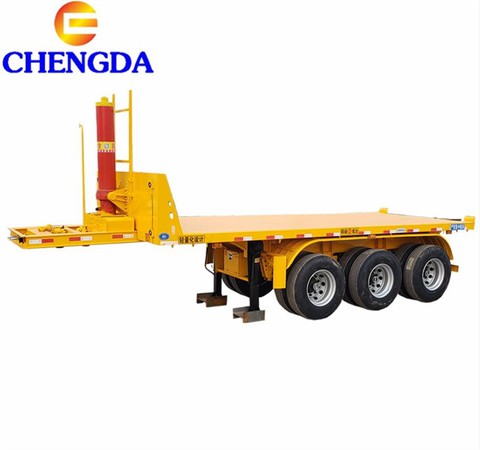

China New Tri Axles 40 Ton Hydraulic Container Dump Semi Trailer

Container dump semi trailer is a popular product developed and produced by our company in 2022. This dump semi trailer can realize automatic container handling, which greatly saves manpower and material resources and improves the transportation efficiency of goods. At present, the dump trailer can realize automatic loading and unloading of 20-foot and 25-foot containers
Chat Now

Product Details

Hydraulic container dump semi trailer are mainly used in the handling and unloading of bulk containers in ports. Compared with the ordinary container semi-trailer, there is one more flat plate and self-unloading device, and the self-unloading function is realized by driving the hydraulic top through the power take-off. Chengda has mature R&D and production technology for container dump semi trailer, which greatly improves the transportation efficiency of goods. At present, this trailer can realize automatic loading and unloading of 20-foot and 25-foot containers.

flatbed dump trailer

flatbed dump trailer4

Product features of 40 ton hydraulic container dump semi trailer


1. Hydraulic container dump semi trailer has been designed by finite element analysis of strength, and has the advantages of reasonable structure, strong bearing capacity and beautiful appearance;

2. The plates of the dump trailer are all made of Q345B, which has high strength and long service life;

3. The hydraulic system of the container dump trailer is controlled by a pneumatic control valve, which has a slow-down function to ensure the stability and safety of the vehicle unloading;

4. This product is your ideal choice for transporting container cargo.

China new tri axles 40 ton hydraulic container dump semi trailer

SPECIFICATION OF CARGO BOX TIPPER TRAILER

Type

cargo box tipper trailer

Overall dimension

12500x2500x1500mm

Container thickness

Bottom 4mm, side 3mm

Hydraulic cylinder

Full set of HYVA Hydraulic System 196 x 180, 4 stages Hydraulic Cylinder

Main beam

Carbon steel Q345B, 500mm height, upper plate 18mm, middle plate 8+6mm, down plate 18mm

Side beam

16Mn with 8mm Thickness

Axle

Fuwa, BPW, York, L1, Zhenghua

Tyre

12R22.5, 385/65R22.5, 315/85R22.5, 1100R20

Landing gear

28 ton

Suspension

Mechanical or air-bag suspension with lift

Color

As your requirement

Optional

fuel tank, water tank, side wall, front board

Our Factory

Chengda factory production and manufacturing workshop uses the construction of information system to realize the operation of production by order, multi-model assembly, stockless assembly, paperless design, etc. The production technology and manufacturing process are constantly upgraded and every effort is made to produce high quality dump trailers, flatbed semi-trailers, etc. for customers.
