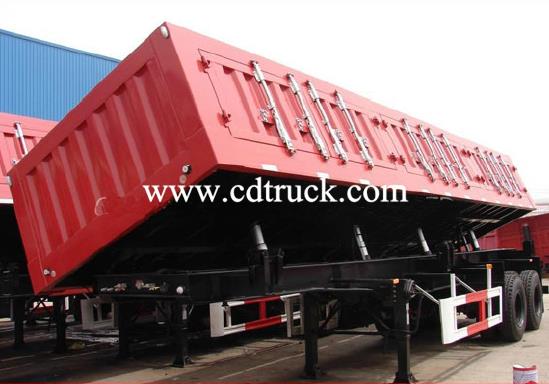

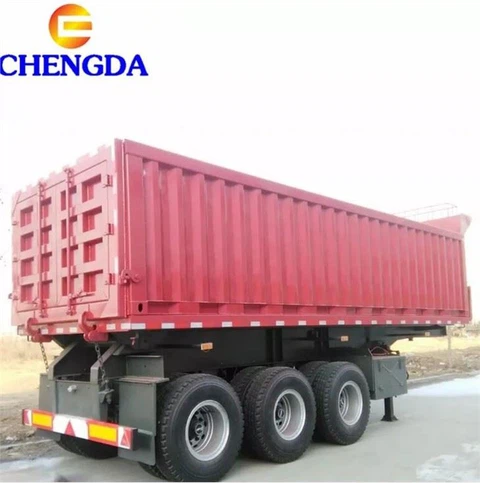

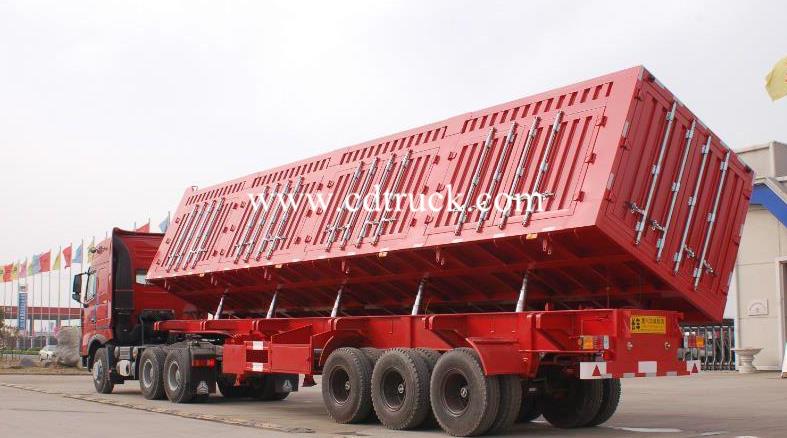

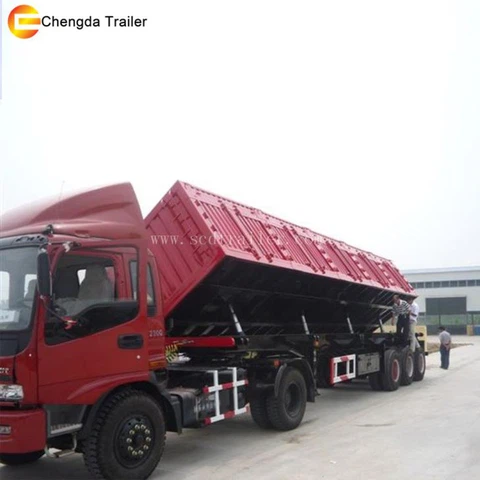

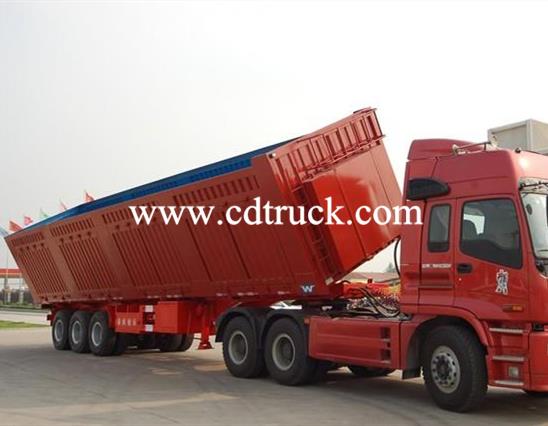

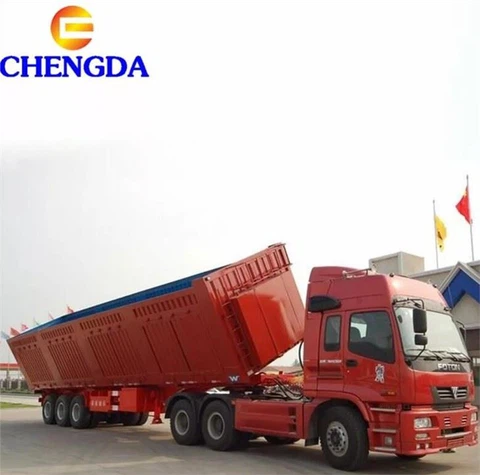

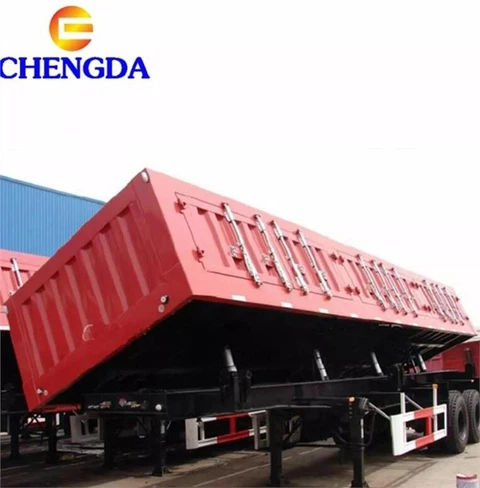

3 axles 45cbm 80ton 120ton side tipping dump trailer
Product Description
According to clients' requirements, we can customize different axles and loading weight, tipping trailer, side tipping trailer, trailer tipper, tip trailer, tipper trailer
Our dump cargo trailer price is really good with high quality ensured.
Overall Dimension(mm) | 11800X2500X3800(mm) |
Cargo box dimension(mm) | 11200X2400X1650(mm) |
Tare weight(kg) | 10500KGS |
Loading capacity | 80000KGS |
Cargo box | height: 1500mm |
Cylinder | 150# cylinder made in china, 4 units |
Main beam | The height of the beam is 500 mm, upper plate is 18mm, down plate is 20mm, middle plate is 12 mm. |
Landing gear | Two speed manual made in china |
Kingpin | 3.5" king pin |
Suspension | 10/10/10, Leaf Spring suspension |
Axle | 3x13ton, FUWA square axles |
Tire | 11R20 12Pcs, made in china |
Rim | 8.0-20 12Pcs, made in china |
Turnover socket | 6 units per side |
Detailed Images
1. The side titled tip tipper tipping trailer use through-going beam structure, has frame structure with flat type and goosen neck type, also has high integral strength, small weight, beautiful appearance, safe and reliable operation.
2. The side titled tip tipper tipping trailer use advanced manufacture technology, makes automatic submerged-arc welding for vertical beam, use shot blasting treatment for intergral frame, removes welding stress effectively.
Packaging & Shipping
1.Main shipping way by Bulk Ship or RO-RO Ship with a tractor truck.
Certifications
Our factory has BV, WMI, CCC, ISO9001 certifications.
The certifications pcs is attached as followings.
Our Equipment
