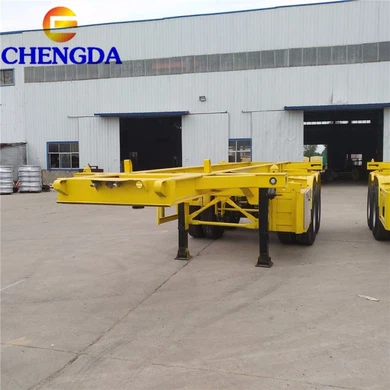

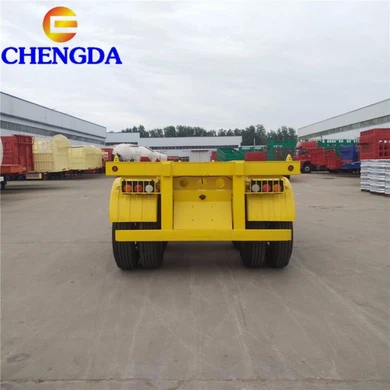

2 Axle 3 Axles 20ft 40ft Shipping Container Transport Skeleton Container Semi Trailer

2 axle 3 axles 20ft 40ft shipping container transport skeleton container semi trailer Product Description 2 Axle Skeleton Semi Trailer 3 Axle Skeleton Semi Trailer 2 axle 3 axles 20ft 40ft shipping container transport skeleton container semi trailer Show Details Packaging & Shipping Company...

Product Details

2 axle 3 axles 20ft 40ft shipping container transport skeleton container semi trailer

15

Product Description

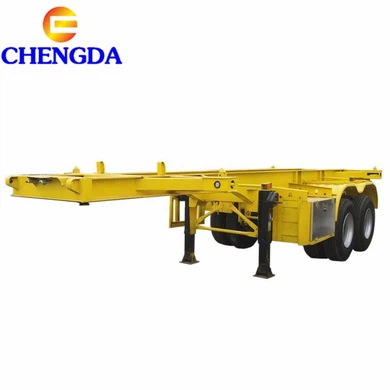

2 Axle Skeleton Semi Trailer

15.1

3 Axle Skeleton Semi Trailer

15.2



2 axle 3 axles 20ft 40ft shipping container transport skeleton container semi trailer



Dimension and Weight

Overall Dimension(mm)

12500x2500x1650mm

Wheelbase

7,500mm+1,310mm+1,310mm

Payload

40,000kg

Tare weight

6,500kg

G.V.W.R.

46,500kg

Function

transport 1x20ft, 2x20ft, 1x40ft container

Running System

Main beam

height of the beam is 500mm,

upper plate is 14mm,

down plat is 16mm,

middle plate is 8mm.

Side beam

16#

Axle

3x13Ton ZY brand

Axle Number

Three

Tire

12R22.5, 12 pcs. Taitong brand

Rim

9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs

Suspension system

Mechanical Suspension

Steel Spring

10/10/10 leaf spring with 90mm(W) *13mm(thickness)

Electrical System

Chinese standard 24V lighting system

Brake system

Dual line pneumatic brake, no ABS

Brake air chamber

6 units T30/30 Double brake chambers

Emergency relay valve

Standard

Diamond plate

4mm

Traction/King Pin

2” and 3.5” removable Kingpin,

bolted in type 500mm from the front face of the front bolster

Landing Gear

Yahua brand 28ton

external two speed telescopic manual operation

2,500mm behind the kingpin location

Accessories

Tool box

1pcs, One crank and one shaft head wrench

Mud guard

Steel mud guard and front mudguard

Spare wheel carriers

2 pcs

Bumper

Rear bumper with adjustable height

Electrical system

1. Voltage: 24v   2. Receptacle: 7 ways (7 wire harness)



Tail lamp with turn signal, brake light & reflector, side lamp etc.



One set 6-core electric cable protected by PVC conduit on main frame

Paint

Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish. Waxed

Packing

Nude, Polish with wax before shipping

  Show Details

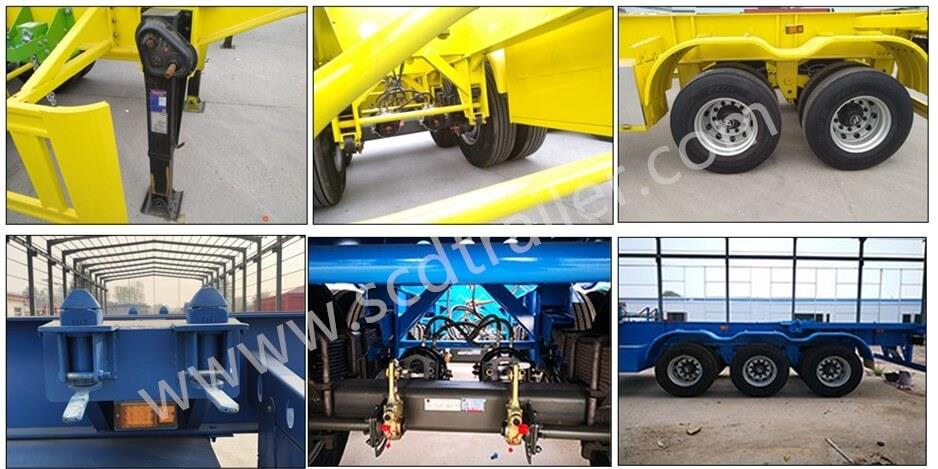

15.3

Packaging & Shipping

15.4

FAQ

1.Does your company is a factory or trade company?

We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.



2.Whats the qualify assurance we provided and how do we control quality?

1. Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.



2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.



3. What’s your MOQ?

One unit trailer or truck.



4. How do you transport the semi trailers and trucks?

We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.

 bulk or container.



 5. Can you satisfy my special requirement?
 Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
