Container Chassis Semi Trailers are specially used for the transportation of various containers and can be used repeatedly for a long time.
Skeleton container semi-trailer has the characteristics of high strength, and is widely used in ports, cold chain transportation and other industries in modern logistics transportation.

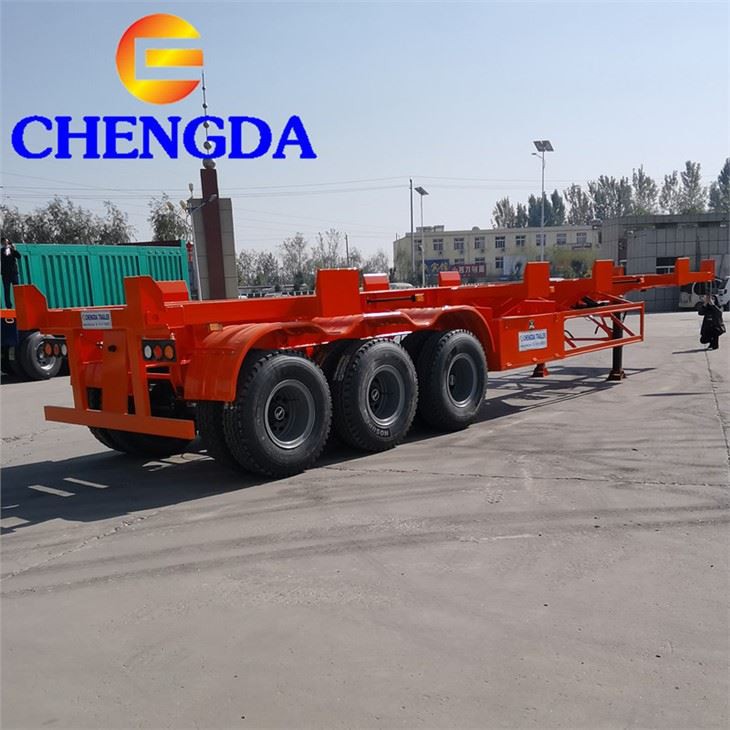

This is a high quality and hot selling 40ft Container Chassis Trailer, which is specially designed for the transportation of various containers and can also be used to transport goods such as bulk cargo.
Container chassis trailer has the characteristics of low bearing surface, light weight, high reliability and strong applicability.
This large-capacity 40-foot skeleton container chassis can carry up to 70 tons of payload and is most popular in the African region.
For more information, you can contact us directly.
Actual shooting video of Container Chassis Trailer:
More Details
Features of Container Chassis Trailer
1. Container chassis trailers are mainly used to transport heavy, oversized and wide goods such as machinery, construction supplies or equipment.
2. The 40ft container chassis trailer is welded by longitudinal beams, cross beams and front and rear beams. The key points are reinforced, and the welding is beautiful and firm.
3. The longitudinal beam is made of high-quality 16Mn steel plate, which is processed into an I-shape by submerged arc welding.
4. The frame trailer adopts an integrated long beam to improve the strength of the container locking device.
5. Carry out shot peening and welding stress treatment on the trailer as a whole.
6. The parts are all well-known brands with reliable quality.
40ft Container Chassis Semi Trailer
Overall Dimension(mm)
12500x2500x1650mm
Wheelbase
7,500mm+1,310mm+1,310mm
Main beam
height of the beam is 500mm,
upper plate is 14mm,
down plat is 16mm,
middle plate is 8mm.
Side beam
16#
Axle Number
Three
Tire
12R22.5, 12 pcs. Taitong brand
Diamond plate
4mm
Traction/King Pin
2” and 3.5” removable Kingpin
Landing Gear
Yahua brand 28ton
Paint
Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish. Waxed
Container chassis semi-trailer delivery
1. Many customers use container transportation, which has low cost and short time.
2. Some customers choose bulk carrier or ro-ro shipping.
Customer
Our customers come from all over the world
We strive for 100% customer satisfaction in every transaction we close.
who are we?
Chengda Group is a professional trailer manufacturer in China, producing semi-trailers for logistics and construction fields.
Products are exported to Tanzania, Nigeria, New Zealand, Russia, Philippines, Singapore, Malaysia, etc.
Chengda has a large modern workshop, advanced production equipment and coating technology, perfect testing facilities, to provide you with excellent trailers and excellent services.
