100 Ton Lowboy Trailer Low Bed Trailer Dimensions
Product Details
Low price multi axle hydraulic low bed trailer dimensions lowbed semi trailer
Low price multi axle hydraulic low bed trailer dimensions lowbed semi trailer
Specification
Dimension and Weight | |
Overall Dimension(mm) | 13000x3000x1650mm |
Working Deck Dimension(mm) | 9000x3000x1350mm |
Platform thickness(mm) | 4mm |
Main Beam | “H”main beam design,Q345B carbon steel, the height of the beam is 500 mm, upper plate is 16mm,down plate is 18mm, middle plate is 10 mm. |
Wheelbase | 7,650mm+1,310mm+1,310mm |
Payload | 60,000kg |
Tare weight | 9,000kg |
G.V.W.R. | 69,000kg |
Function | To transport bulk goods or heavy equipment like loader or excavator |
Running System | |
Axle | 13Ton, ZY brand optional FUWA brand, one hundred fifty thousand Kilometers no need maintenance |
Axle Number | Three |
Tire | 1100R20, 12 pcs Taitong brand |
Rim | 8.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
Suspension system | Common Mechanical Suspension |
Steel Spring | 10/10/10 leaf spring with 90mm(W) *13mm(thickness) |
Electrical System | Chinese standard 24V lighting system |
Brake system: | Dual line pneumatic brake, SAE hose and connector,optional ABS |
Brake air chamber | 6 units T30/30 spring brake chambers |
Emergency relay valve | Wabco relay valve |
Traction/King Pin | 2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster |
Landing Gear | Zhenhua brand 28ton |
Accessories: | |
Tool box | 1pcs, One crank and one shaft head wrench |
Ramp | Heavy duty trailer ramp |
Spare wheel carriers | 2 pcs |
bumper | Rear bumper |
Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
One set 6-core electric cable protected by PVC conduit on main frame | |
Paint | Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish.Waxed |

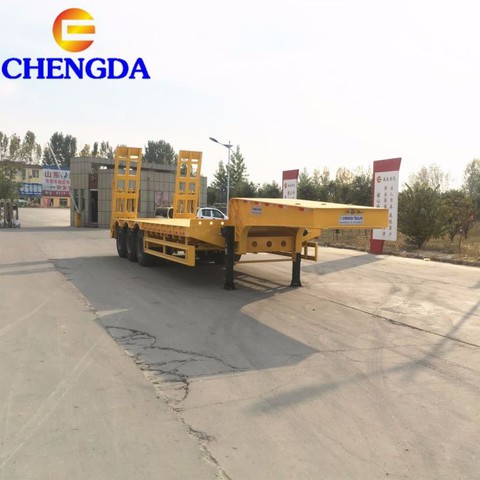

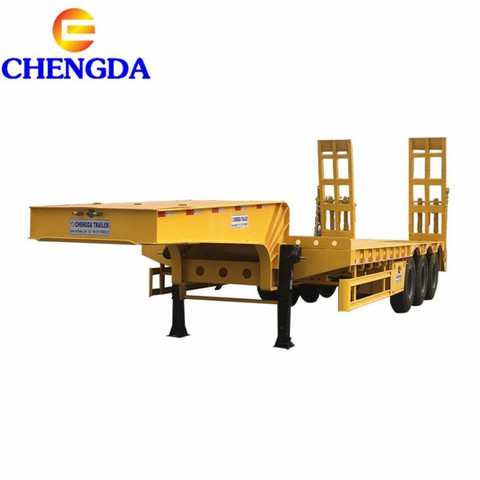

More view of the lowbed semi trailer
Show details
Productive process
Shipment method: the low bed trailer can be shipped by bulk ship, roro ship.
Shipping by bulk ship
Shipping by RORO ship
Reply your inquiry in 12 working hours;
Experienced staffs answer all your questions;
Customer’s design is available for certain products(OEM);
Spare parts for all types of engine machinery with reasonable price;
Different kinds of semi trailer can be provided with competitive price.
We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers and nice quality to ensure the trucks and trailers being in good working conditions.
1. How do you transport the semi trailers?
We transport the semi trailers by bulk,container or ro to ro. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension, tyre, are purchased centralized by Chengda group,every node will be inspected strictly. Moreover, advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality.
