100 Ton Lowboy Trailer
Product Details
Product Description of 100 ton lowboy trailer
100 Ton Lowboy Trailer has a very strong carrying capacity and can transport most of the large cargo, machinery, construction equipment, etc. on the market.
Chengda can customize various types of low-bed semi-trailers for you: no-load, exposed tire design, single tire, twin tire, rear ramp or front ramp to meet the different needs of customers.

According to your usage,we can choose suitable size design,and from 30Ton-150Ton,all can do,also use different axle quantity match your local weight limit.
Features of 100 Ton Lowboy Trailer:
1. Lowboy semi-trailer has flatbed, concave beam and exposed tire structures, all of which can be customized
2. The longitudinal beam of the lowboy trailer adopts the straight type or gooseneck type, the frame is stepped, and the longitudinal beam section is I-shaped, which has the characteristics of high rigidity and high strength.
3. Chengda 100 ton lowboy trailer adopts advanced computer technology-aided design, first-class production equipment and production technology to ensure product quality.
4. The axles of the trailer adopt well-known manufacturers such as FUWA BPW to prolong the service life
5. The loading ramp of the lowboy trailer is made of high-strength steel, which will not deform when carrying heavy equipment.
Details of the trailer


| specification | |
Overall Dimension(mm) | 13000x3000x1650mm |
Working Deck Dimension(mm) | 9000x3000x1350mm |
Platform thickness(mm) | 4mm |
Main Beam | “H”main beam design,Q345B carbon steel, the height of the beam is 500 mm, upper plate is 16mm,down plate is 18mm, middle plate is 10 mm. |
Wheelbase | 7,650mm+1,310mm+1,310mm |
Function | To transport bulk goods or heavy equipment like loader or excavator |
Axle | 13Ton, ZY brand optional FUWA brand, one hundred fifty thousand Kilometers no need maintenance |
Tire | 1100R20, 12 pcs Taitong brand |
Steel Spring | 10/10/10 leaf spring with 90mm(W) *13mm(thickness) |
Brake system | Dual line pneumatic brake, SAE hose and connector,optional ABS |
Packing & Delivery
Export Record
Customer feedback

Excellent after-sales service
1. If you have any problems using our products, please let us know and we will help you solve them in time.
2. If there is a problem with the backup, we can provide it to you. If there is a problem affecting your business, we can help you solve it.
3. Other related services requested by you.
Other Low Bed Trailer type
We specialize in truck and trailer export for 18 years. , can provide various trailer models, just tell us your needs, we will solve it for you.

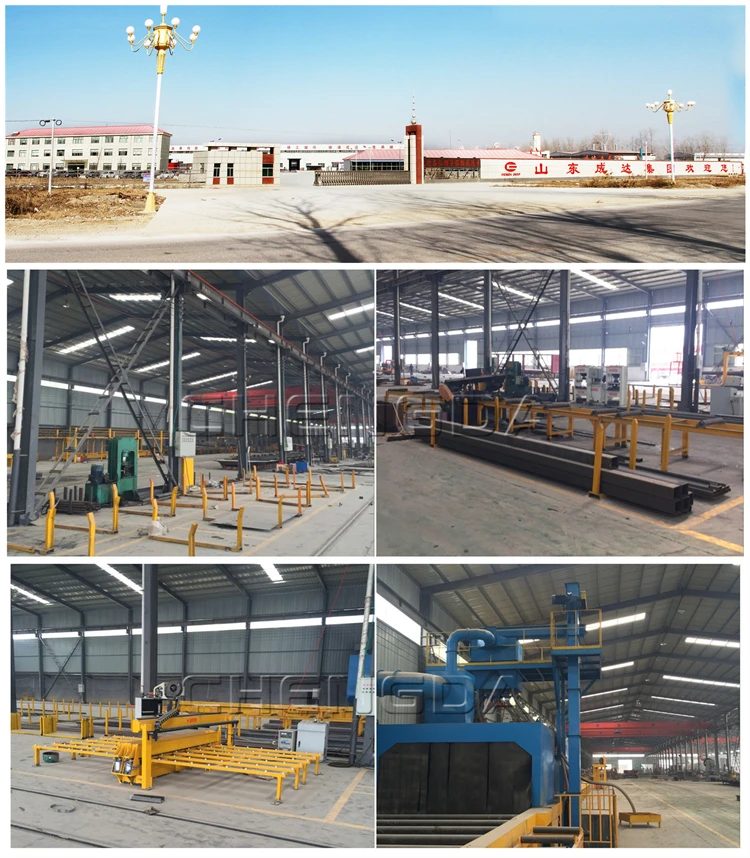

Company Profile
